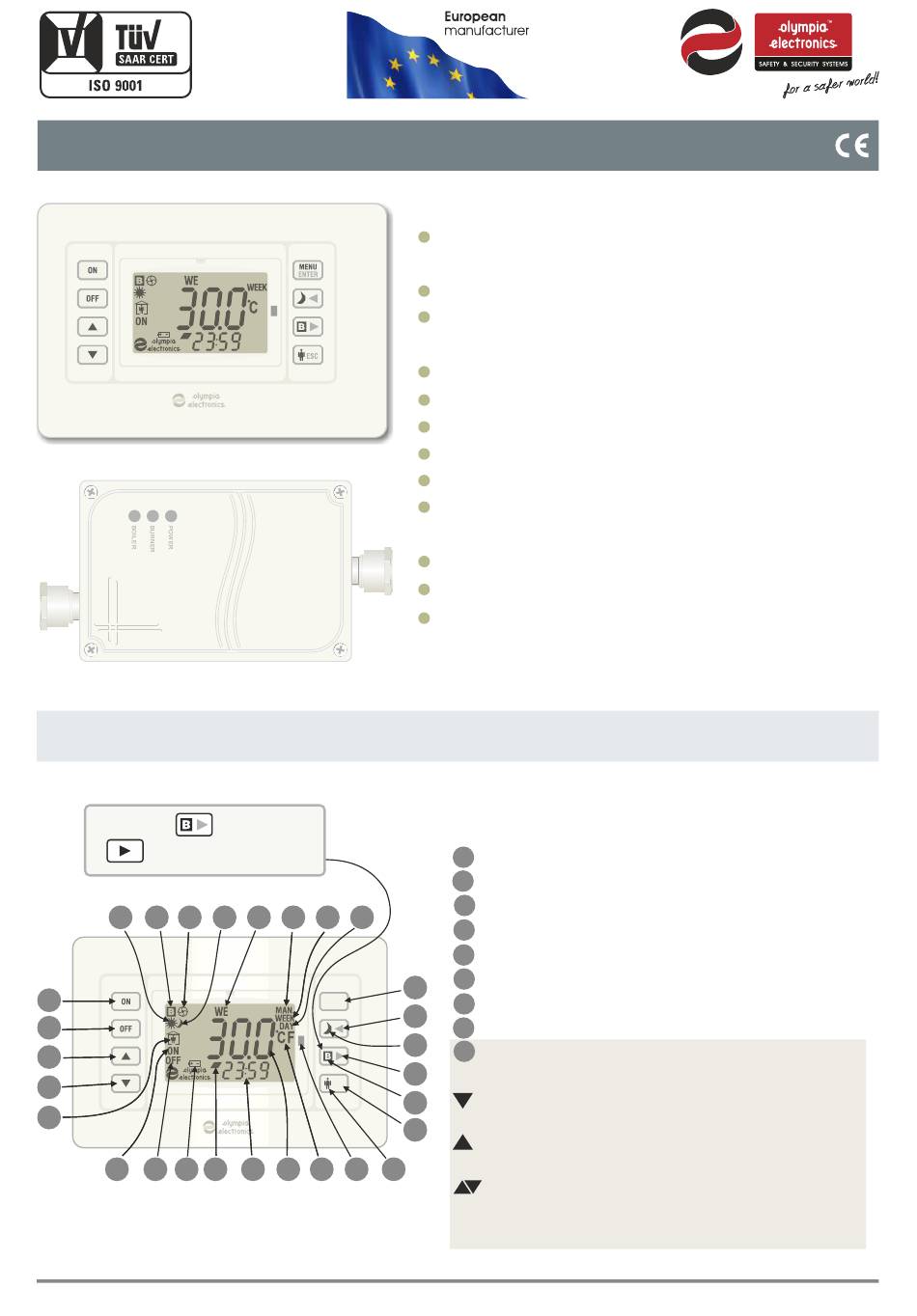

BS-818/KIT

BATTERY OPERATED WIRELESS PROGRAMMABLE CHRONO-THERMOSTATS

(BS-819/KIT)

BS-818/T - BS-819/T

BS-818/R - BS-819/R

Olympia Electronics - European manufacturer

The key

on the BS-818/T.

Page 1 from 11

BATTERY OPERATED WIRELESS PROGRAMMABLE CHRONO-THERMOSTATS

WITH COOLING AND HEATING FUNCTION (& BOILER OUTPUT)

Thank you for your trust in our products

is like this

ENTER

ESC

Wireless connection between the thermostat

and the Relay.

RF signal strength indicator.

3 operation modes: manual,

daily, weekly.

8 key easy operation.

Easy program entry.

Multi indication screen with back light.

Clock, Calender.

Keypad lock.

Selection of upper and lower limits for

manual temperature selection.

Boiler operation (BS-819/T) with selectable time.

Heating and Cooling function.

Easy connection - adjustment.

CONTROL AND INDICATOR DESCRIPTION

. Thermostat activation

. Thermostat deactivation

. Increase value

. Decrease value

. Presence indicator

. Thermostat active

. Thermostat inactive

. Battery state indicator

. Ascending or descending temperature

indicator

= When the selection is less than the

actual temperature.

= When the selection + the differential is more

than the actual temperature.

= When the temperature is between the

πππ

selection and the selection

οΠΠ

the differential.

940818000_09_004
