Operating Instructions
Wireless Repeater
WX-CR470
Model No.
1
English
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use. No model number
suffix is shown in this Operating Instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WX-CR470 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic WX-CR470

Summary of Contents for Panasonic WX-CR470

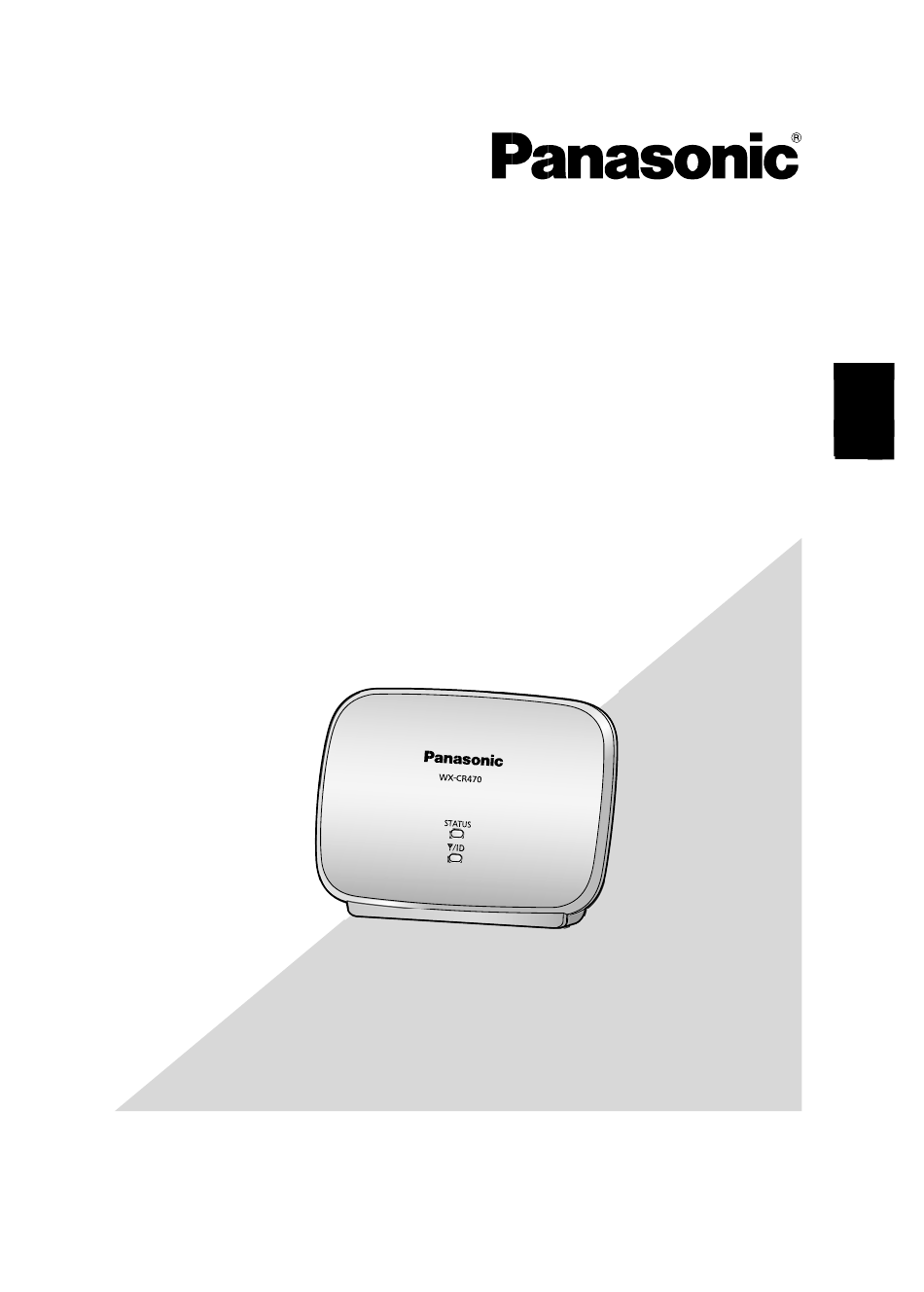

  • Page 1 Operating Instructions Wireless Repeater WX-CR470 Model No. English Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. No model number suffix is shown in this Operating Instructions.
  • Page 2 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 WARNING: • To prevent fire or electric shock hazard, do not expose this apparatus to rain or moisture. • The apparatus should not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, should be placed on the apparatus. •...
  • Page 4 CAUTION: • These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. •...
  • Page 5 PURPOSE, OR NON-INFRINGEMENT OF THE THIRD PARTY’S RIGHT. Disclaimer of Warranty IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: 1.
  • Page 6 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 7 Network Security As you will use this product connected to a network, your attention is called to the following security risks. 1. Leakage or theft of information through this product 2. Use of this product for illegal operations by persons with malicious intent 3.
  • Page 8 • When driving the screws into the wall, be careful to avoid touching any metal laths, wire laths or metal plates in the wall. • To prevent malfunction, deformity, overheating, rust, and discoloration, do not install or place equipment in the following types of locations: –...

  • Page 9: Table Of Contents

    Table of Contents 1 Overview ....................10   System Overview ....................10 System Connection Example ................10 Names and Locations ..................10 Unpacking .......................10 LED Indications ....................11 Compatible Devices ..................11 Specifications ....................11 2 Procedure Overview ................13   Registering the Repeater ................13 Deregistering the Repeater ................14 3 Wall Mounting ..................17  ...

  • Page 10: Overview

    All-In-One Headset ( Center Module ) Names and Locations PROGRAM Button DC Jack STATUS LED RSSI /ID LED   RSSI: Received Signal Strength Indication Unpacking Unpack the box and check the items below: Repeater (WX-CR470) AC Adaptor (PQLV219) Screws Washers...

  • Page 11: Led Indications

    1 Overview LED Indications The LED patterns and the corresponding status of the repeater are as follows. For details, refer to "2 Procedure Overview (Page 13)". Status CM registration is complete, and relaying Amber On (Lane A) is possible. Green On (Lane B) When The signal is being relayed.
  • Page 12 1 Overview Maximum Number of Simultaneous Calls WX-CC411: 1 Maximum Number of Repeaters Registered to a CM WX-CC412: 2 The maximum number of simultaneous calls may decrease depending on the wireless environment or system configuration. General Specifications 111 mm (W) ´ 82 mm (H) ´ 39 mm (D) (4-3/8 Dimensions inches ´...

  • Page 13: Procedure Overview

    2 Procedure Overview 2 Procedure Overview When registering and installing the repeater, follow the procedure below to ensure smooth operation. Registering the Repeater IMPORTANT Register the repeater to 1 CM only. You cannot register to multiple CMs. 1. Plug in the repeater’s AC adaptor into an outlet near the CM. •...

  • Page 14: Deregistering The Repeater

    2 Procedure Overview Note The LED may turn amber or red, or flash red, depending on the strength of the signal. 4. Unplug the repeater’s AC adaptor and move the repeater to the installation location.   • Unplugging the AC adaptor will not cancel the registration. Deregistering the Repeater 1.
  • Page 15 2 Procedure Overview 1. Temporarily install the repeater within the CM coverage area. 2. Move the All-In-One Headset or Belt Pack to the area where they will be used and check that communication is smooth and there are no disconnections. •...
  • Page 16 2 Procedure Overview Notice Ensure that repeaters are installed at least 50 cm apart. However, this distance may vary depending on the environment. All-In-One Lane A Headset Repeater If the repeaters are too near, noise will be generated. Lane B ( Center Module ) Repeater Belt Pack...

  • Page 17: Wall Mounting

    3 Wall Mounting Mounting WARNING • Make sure that the wall that the unit will be attached to is strong enough to support the unit (approx. 88 g [3.1 oz]). If not, it is necessary for the wall to be reinforced.

  • Page 18: Reference For Wall Mounting

    3 Wall Mounting Reference for Wall Mounting Print this page and use as a reference for wall mounting. Install a screw here. 37 mm (1-15/32 inches ) Install a screw here. Note Make sure to set the print size to correspond with the size of this page. If the dimension of the paper output still deviates slightly from the measurement indicated here, use the measurement indicated here.

  • Page 19: Returning The Repeater To Factory Default

    4 Returning the Repeater to Factory Default After using the repeater, you can return it to its factory default state by pressing the button on the back of the repeater. 1. While pressing the PROGRAM button, plug in the repeater’s AC adaptor, and hold the PROGRAM button for more than 10 seconds.

  • Page 20: Troubleshooting

    5 Troubleshooting PROBLEM/QUESTION PROBABLE CAUSE/ANSWER PAGE • The RSSI/ID LED does not • The repeater is not registered. turn on. → Register the repeater. • The RSSI/ID LED flashes • The CM is not turned on. – red. → Turn on the CM. •...
  • Page 21 For customer support, call 1.800.528.6747 Two Riverfront Plaza, Newark, NJ 07102-5490 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905)624-5010 www.panasonic.ca Panasonic System Networks Co., Ltd. 2013 Printed in China Fd1113-0 PGQX1501ZA Imprimé en Chine 21   ...
