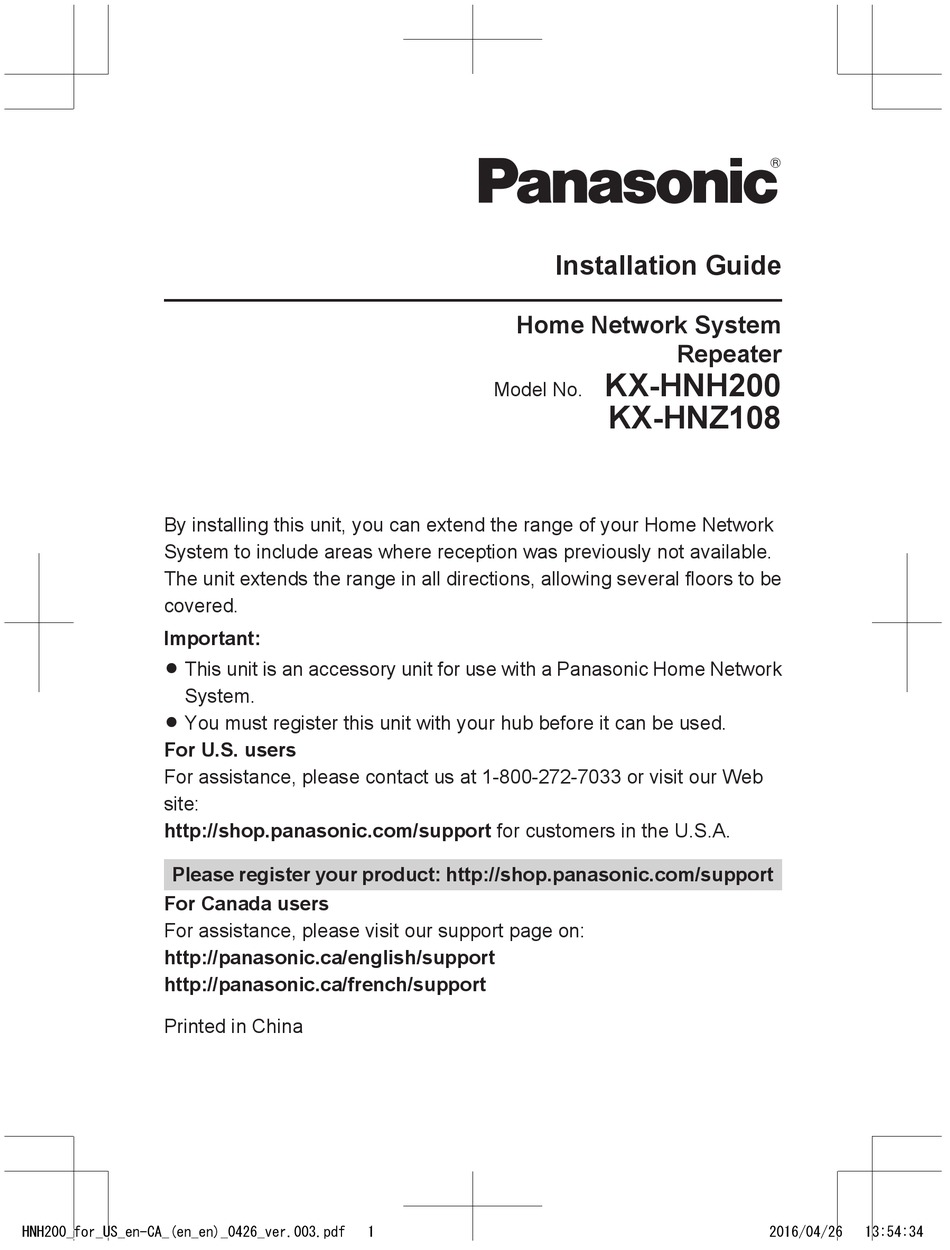

Installation Guide
Home Network System
Repeater
KX-HNH200
Model No.
KX-HNZ108
By installing this unit, you can extend the range of your Home Network
System to include areas where reception was previously not available.
The unit extends the range in all directions, allowing several floors to be
covered.
Important:
R This unit is an accessory unit for use with a Panasonic Home Network
System.
R You must register this unit with your hub before it can be used.
For U.S. users
For assistance, please contact us at 1-800-272-7033 or visit our Web
site:
http://shop.panasonic.com/support for customers in the U.S.A.
Please register your product: http://shop.panasonic.com/support
For Canada users
For assistance, please visit our support page on:
http://panasonic.ca/english/support
http://panasonic.ca/french/support
Printed in China
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf
1
2016/04/26
13:54:34
Advertisement
Table of Contents
Related Manuals for Panasonic KX-HNH200
Summary of Contents for Panasonic KX-HNH200
- Page 1 The unit extends the range in all directions, allowing several floors to be covered. Important: R This unit is an accessory unit for use with a Panasonic Home Network System. R You must register this unit with your hub before it can be used.
-
Page 2: Table Of Contents
Table of Contents Introduction Accessory information ....3 Important Information Graphical symbols for use on equipment and their descriptions .......4 For your safety ......5 Important safety instructions ..6 For best performance ....7 Other information .......8 Setup Control ........10 Installation/Registering the range repeater to the hub ....12 Appendix Wall mounting ......14... -
Page 3: Introduction
Introduction Accessory information Supplied accessories Accessory item/Part number Quantity AC adaptor/PQLV219Y Other information R Design and specifications are subject to change without notice. R The illustrations in these instructions may vary slightly from the actual product. HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:34... -
Page 4: Important Information
Important Information Graphical symbols for use on equipment and their descriptions Symbol Explanation Symbol Explanation Alternating current Class P equipment (A.C.) (equipment in which protection against electric shock relies on Double Insulation or Reinforced Insulation) Direct current (D.C.) “ON” (power) Protective earth “OFF”... -
Page 5: For Your Safety
For your safety smoke has stopped emitting and contact us at http:// To prevent severe injury and loss shop.panasonic.com/support of life/property, read this section R Unplug from power outlets and carefully before using the product never touch the inside of the... -
Page 6: Important Safety Instructions
Important Information R Do not disassemble the product. Important safety Medical instructions R Consult the manufacturer of any personal medical devices, such When using your product, basic as pacemakers or hearing aids, safety precautions should always to determine if they are be followed to reduce the risk of adequately shielded from fire, electric shock, and injury to... -
Page 7: For Best Performance
Product location/avoiding noise R Install the unit within hub range This product and other compatible in an indoor environment. We Panasonic devices use radio recommend installing the unit in waves to communicate with each a raised position (such as on a other. -
Page 8: Other Information
Important Information where the indicator lights R The maximum communication green. range may be shortened when the product is used in the following places: Near obstacles such as hills, tunnels, underground, near metal Handset Repeater objects such as wire fences, etc. R Operating the product near electrical appliances may cause Hub range... - Page 9 Important Information Notice HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:34...
-
Page 10: Setup
Setup Control STATUS indicator indicator ID indicator Understanding the STATUS indicator and indicator Indicator Light status Meaning STATUS Green R Within hub range. The unit indicator is ready for use. Flashing R 1 handset is communicating with the hub through this unit. - Page 11 Setup Indicator Light status Meaning Green R Signal strength of the hub is indicator strong. Amber R Signal strength of the hub is weak. R Out of hub range. R The unit is not being used. R The power is off. HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:34...
-
Page 12: Installation/Registering The Range Repeater To The Hub
Once the unit is connected to a power outlet in step 3, it automatically goes into registration mode (if not already registered). Range repeater: Connect the AC adaptor. R Use only the supplied Panasonic AC adaptor PQLV219. Hook Press plug firmly. - Page 13 Setup Note: R The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) R The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected.
-
Page 14: Appendix
Appendix Wall mounting Drive the screws (not supplied) into the wall. Mount the unit, then slide it down. Note: R Make sure that the wall is strong enough to support the weight of the unit. HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:34... -
Page 15: Troubleshooting
Appendix Troubleshooting Problem Cause/solution The unit does not work. R When the indicators do not light, the AC adaptor is not connected properly. Check the connections. R When the indicators do not light green, move the unit closer to the hub. -
Page 16: Specifications
Appendix The STATUS indicator N was pressed. The unit is in continues to light amber for a programming modes. To exit, while. press M N again. Do not press N, except when deregistering the unit. Specifications R Standard DECT (Digital Enhanced Cordless Telecommunications) R Frequency range 1.92 GHz –... -
Page 17: Fcc And Other Information (For U.s. Users Only)
Appendix equipment generates, uses, and FCC and other can radiate radio frequency energy and, if not installed and information (for used in accordance with the U.S. users only) instructions, may cause harmful interference to radio This device complies with Part 15 communications. - Page 18 Appendix top of a TV or VCR. If interference is experienced, move this device further away from the TV or VCR. This will often reduce or eliminate interference. FCC RF Exposure Warning: R This product complies with FCC radiation exposure limits set forth for an uncontrolled environment.
-
Page 19: Customer Services (For U.s. Users Only)
Appendix Customer services (for U.S. users only) Shop Accessories! for all your Panasonic gear Go to h p://shop.panasonic.com/support Get everything you need to get the most out of your Panasonic products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Ba eries, Backup Chargers &... -
Page 20: Limited Warranty (Only For U.s.a.)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,... - Page 21 Service Center. If the problem is not handled to your satisfaction, then write to: Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320 PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
-
Page 22: Other Notices And Information (For Canada)
Appendix Other notices and information (for Canada) NOTICE: This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 23: Warranty (For Canada Users Only)
PANASONIC PRODUCT - LIMITED WARRANTY EXCHANGE PROGRAM Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. - Page 24 This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory. CONTACT INFORMATION For product information and operation assistance, please visit our Support page: www.panasonic.ca/english/support For defective product exchange within the warranty period, please contact the original dealer. HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26...
- Page 25 Notes HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:35...
- Page 26 Notes HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:35...
- Page 27 Notes HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:35...
- Page 28 (found on the rear of the unit) Name and address of dealer Attach your purchase receipt here. Two Riverfront Plaza, Newark, NJ 07102-5490 © Panasonic System Networks Co., Ltd. 2016 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2016/04/26 13:54:35...
