STIEBEL ELTRON SH 30 S Operation And Installation

Open vented and sealed unvented wall mounted dhw cylinders
Hide thumbs Also See for SH 30 S:
Table of Contents

Advertisement

Quick Links

See also: Operating and Installation Instruction , Operation & Installation Manual
BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
ЭКСПЛУАТАЦИЯ И МОНТАЖ
Offener und geschlossener Warmwasser-Wandspeicher | Open vented and sealed
unvented wall mounted DHW cylinders | Ballon d'ECS mural à écoulement libre ou
sous pression | Open en gesloten warmwaterwandboiler | Настенный накопительный
водонагреватель открытого и закрытого типа
» SH 30 S
» SH 50 S
» SH 80 S
» SH 100 S
» SH 120 S
» SH 150 S
SERVICE
ANODE
°C
82
35
65
55
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH 30 S and is the answer not in the manual?

Questions and answers

Related Manuals for STIEBEL ELTRON SH 30 S

Summary of Contents for STIEBEL ELTRON SH 30 S

  • Page 1 DHW cylinders | Ballon d’ECS mural à écoulement libre ou sous pression | Open en gesloten warmwaterwandboiler | Настенный накопительный водонагреватель открытого и закрытого типа » SH 30 S » SH 50 S » SH 80 S » SH 100 S »...

  • Page 2: Table Of Contents

    CONTENTS | SPECIAL INFORMATION SPECIAL INFORMATION SPECIAL INFORMATION OPERATION General information ��������������������������������������� 19 Safety instructions ���������������������������������������������� 19 - The appliance may be used by children aged 8 Other symbols in this documentation ���������������������� 20 and up and persons with reduced physical, sen- Units of measurement �����������������������������������������...

  • Page 3: Special Information

    SPECIAL INFORMATION OPERATION Sealed unvented operating mode: - The appliance is under pressure. During the heat- up process, expansion water will drip from the safety valve. General information - Regularly activate the safety valve to prevent The chapter "Operation" is intended for appliance users and qual- it from becoming blocked, e.g.

  • Page 4: Other Symbols In This Documentation

    OPERATION Safety Other symbols in this documentation General safety instructions WARNING Burns Note During operation, the valve and safety assembly can General information is identified by the symbol shown reach temperatures in excess of 60 °C. on the left. There is a risk of scalding at outlet temperatures in ex- f Read these texts carefully.

  • Page 5: Appliance Description

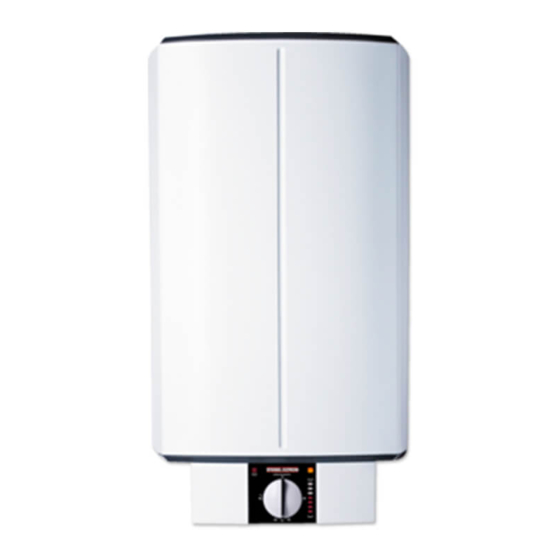

    °C SERVICE ANODE °C SH 30 S ON/OFF indicator SH 50 S Heat content indicator SH 80 S Temperature selector SH 100 S...

  • Page 6: Cleaning, Care And Maintenance

    OPERATION Cleaning, care and maintenance Cleaning, care and maintenance f Have the electrical safety of the appliance and the function of the safety assembly regularly checked by a qualified contractor. f The signal anode must be replaced by the qualified contrac- tor as soon as the SERVICE ANODE indicator illuminates (see chapter "Maintenance / Replacing the signal anode").

  • Page 7: Installation

    INSTALLATION Safety INSTALLATION Preparations Installation site The appliance is designed for installation on a solid wall. Ensure Safety the wall offers adequate load bearing capacity. Only a qualified contractor should carry out installation, commis- Always install the appliance vertically in a room free from the risk sioning, maintenance and repair of the appliance.

  • Page 8: Installation

    INSTALLATION Installation 10. Installation 10.2 Appliance installation Appliances with a nominal capacity of 120 l or 150 l require 2 10.1 Water connection people for installation. Material losses Carry out all water connection and installation work in accordance with regulations. For sealed unvented (pressurised) operation, operate the appli- ance only with pressure-tested taps.

  • Page 9: Power Supply

    INSTALLATION Commissioning 11. Commissioning 10.3 Power supply WARNING Electrocution 11.1 Commissioning Carry out all electrical connection and installation work f Open a draw-off point until the appliance has filled up and in accordance with relevant regulations. the pipework is free of air. Before any work on the appliance, disconnect all poles f Adjust the flow rate.

  • Page 10: Settings

    INSTALLATION Settings 12. Settings 14. Troubleshooting Limiting the temperature selection Note At temperatures below –15 °C the high limit safety cut-out You can adjust the temperature selection limit beneath the tem- may respond. The appliance may be subjected to these perature selector. temperatures during storage or transport.

  • Page 11: Maintenance

    WARNING Electrocution Carry out all electrical connection and installation work SH 30 S (M 8) in accordance with relevant regulations. f Removed the flanged immersion heater to replace the signal Before any work on the appliance, disconnect all poles anode.

  • Page 12: Specification

    INSTALLATION Specification 16. Specification 16.1 Dimensions and connections SERVICE ANODE °C SH 30 S SH 50 S SH 80 S SH 100 S SH 120 S SH 150 S Appliance Height 1050 1050 1210 1445 Appliance Width Appliance Depth b02 Entry electrical cables I...

  • Page 13: Wiring Diagrams And Terminals

    INSTALLATION Specification Controller-limiter combination immersion depths 1 kW 1/N/PE ~ 230 V 7 8 9 2 kW 1/N/PE ~ 230 V 7 8 9 1 Limiter sensor 2 Controller sensor 30 S 50 S 80 S 100 S 120 S 150 S 3 kW 1/N/PE ~ 230 V 7 8 9...

  • Page 14: Heat-Up Diagram

    16.5 Details on energy consumption Product data complies with EU regulations relating to the Directive on the ecodesign of energy related products (ErP). SH 30 S SH 50 S SH 80 S SH 100 S SH 120 S...

  • Page 15: Data Table

    INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING 16.6 Data table SH 30 S SH 50 S SH 80 S SH 100 S SH 120 S SH 150 S 073047 073048 073049 073050 073051 073052 Hydraulic data Nominal capacity Amount of mixed water 40 °C (15 °C/65 °C)
