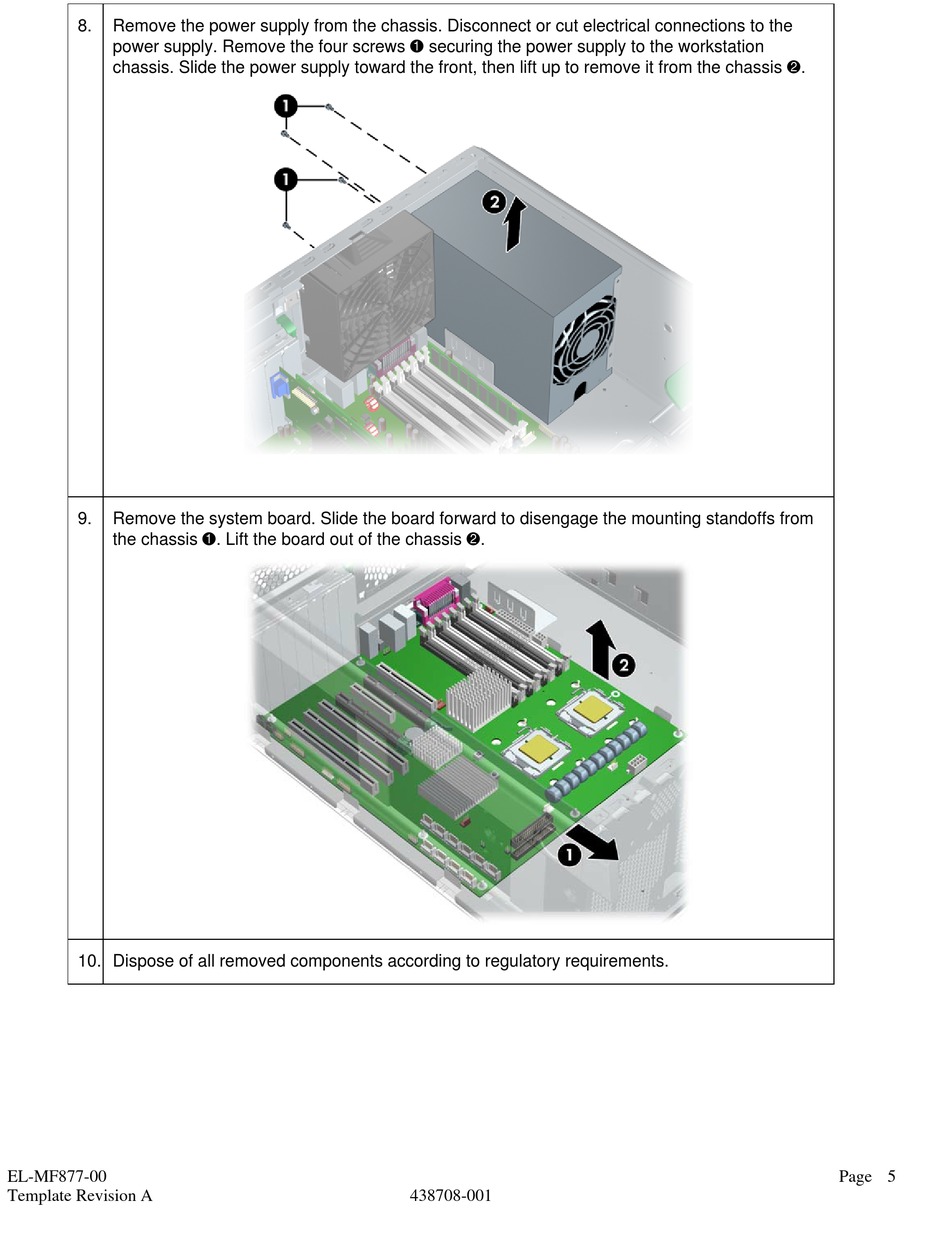

HP xw6400 Product End-Of-Life Disassembly Instructions page 5

8. Remove the power supply from the chassis. Disconnect or cut electrical connections to the
power supply. Remove the four screws 1 securing the power supply to the workstation
chassis. Slide the power supply toward the front, then lift up to remove it from the chassis 2.
9. Remove the system board. Slide the board forward to disengage the mounting standoffs from
the chassis 1. Lift the board out of the chassis 2.
10. Dispose of all removed components according to regulatory requirements.
EL-MF877-00
Template Revision A 438708-001
Page 5
