HP xw6400 Product End-Of-Life Disassembly Instructions page 4

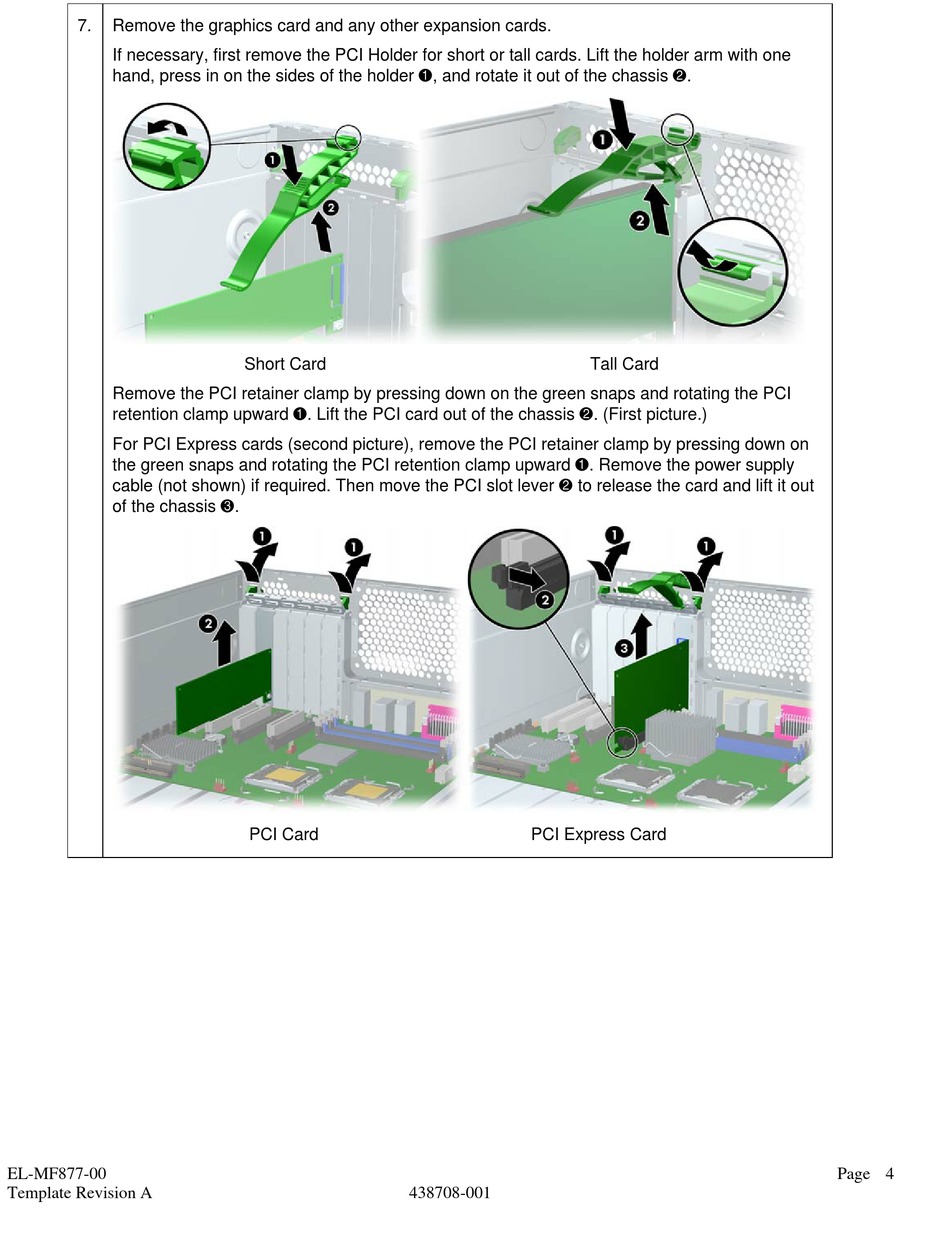

7. Remove the graphics card and any other expansion cards.
If necessary, first remove the PCI Holder for short or tall cards. Lift the holder arm with one
hand, press in on the sides of the holder 1, and rotate it out of the chassis 2.
Remove the PCI retainer clamp by pressing down on the green snaps and rotating the PCI
retention clamp upward 1. Lift the PCI card out of the chassis 2. (First picture.)
For PCI Express cards (second picture), remove the PCI retainer clamp by pressing down on
the green snaps and rotating the PCI retention clamp upward 1. Remove the power supply
cable (not shown) if required. Then move the PCI slot lever 2 to release the card and lift it out
of the chassis 3.
EL-MF877-00
Template Revision A
Short Card
PCI Card
438708-001
Tall Card
PCI Express Card
