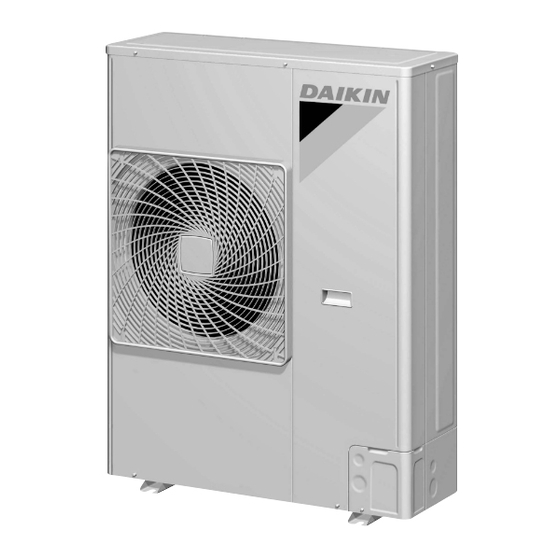

- Page 1 Si241312 REMOVAL PROCEDURE S E R V I C E M A N U A L 3/4/5/6 HP Class Outdoor Unit Non-Inverter Pair Type...
- Page 2 Service Manual Removal Procedure Outdoor Unit Applicable Models Cooling Only R71LUY1 R100LUY1 R125LUY1 R140LUY1...
-
Page 3: Table Of Contents
Si241312 Table of Contents 1. Procedure to Remove Outside Panels............2 2. Procedure to Remove Switch Box ............3 3. Procedure to Remove Propeller Fan and Fan Motor ......4 4. Procedure to Remove PCB Assy ............5 5. Procedure to Remove Thermistor ............6 6. -
Page 4: Procedure To Remove Outside Panels
Procedure to Remove Outside Panels Si241312 1. Procedure to Remove Outside Panels Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Procedure Points Step Pull the lower part (7 positions) of suction Top panel grille to your side and... -
Page 5: Procedure To Remove Switch Box
Si241312 Procedure to Remove Switch Box 2. Procedure to Remove Switch Box Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Procedure Points Step Removing top panel and front panel according to the “Procedure to Remove Outside Panels”. -
Page 6: Procedure To Remove Propeller Fan And Fan Motor
Procedure to Remove Propeller Fan and Fan Motor Si241312 3. Procedure to Remove Propeller Fan and Fan Motor Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Removing front panel and top panel according to the... -
Page 7: Procedure To Remove Pcb Assy
Si241312 Procedure to Remove PCB Assy 4. Procedure to Remove PCB Assy Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Procedure Points Step Removing top panel, front panel and side panel according to the “Procedure to Remove Outside Panels”. -
Page 8: Procedure To Remove Thermistor
Procedure to Remove Thermistor Si241312 5. Procedure to Remove Thermistor Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Procedure Points Step Removing top panel, front panel and side panel according to the “Procedure to Remove Outdoor air thermistor... -
Page 9: Procedure To Remove Electronic Expansion Valve And Low Pressure Sensor
Si241312 Procedure to Remove Electronic Expansion Valve and Low Pressure Sensor 6. Procedure to Remove Electronic Expansion Valve and Low Pressure Sensor Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points... -
Page 10: Procedure To Remove Compressor
Procedure to Remove Compressor Si241312 7. Procedure to Remove Compressor Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Procedure Points Step Removing the parts of Check that the refrigerant is outside panel and the completely discharged switch box according to... - Page 11 Revision History Month / Year Version Revised contents 01/2013 Si241312 First edition...
- Page 12 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
