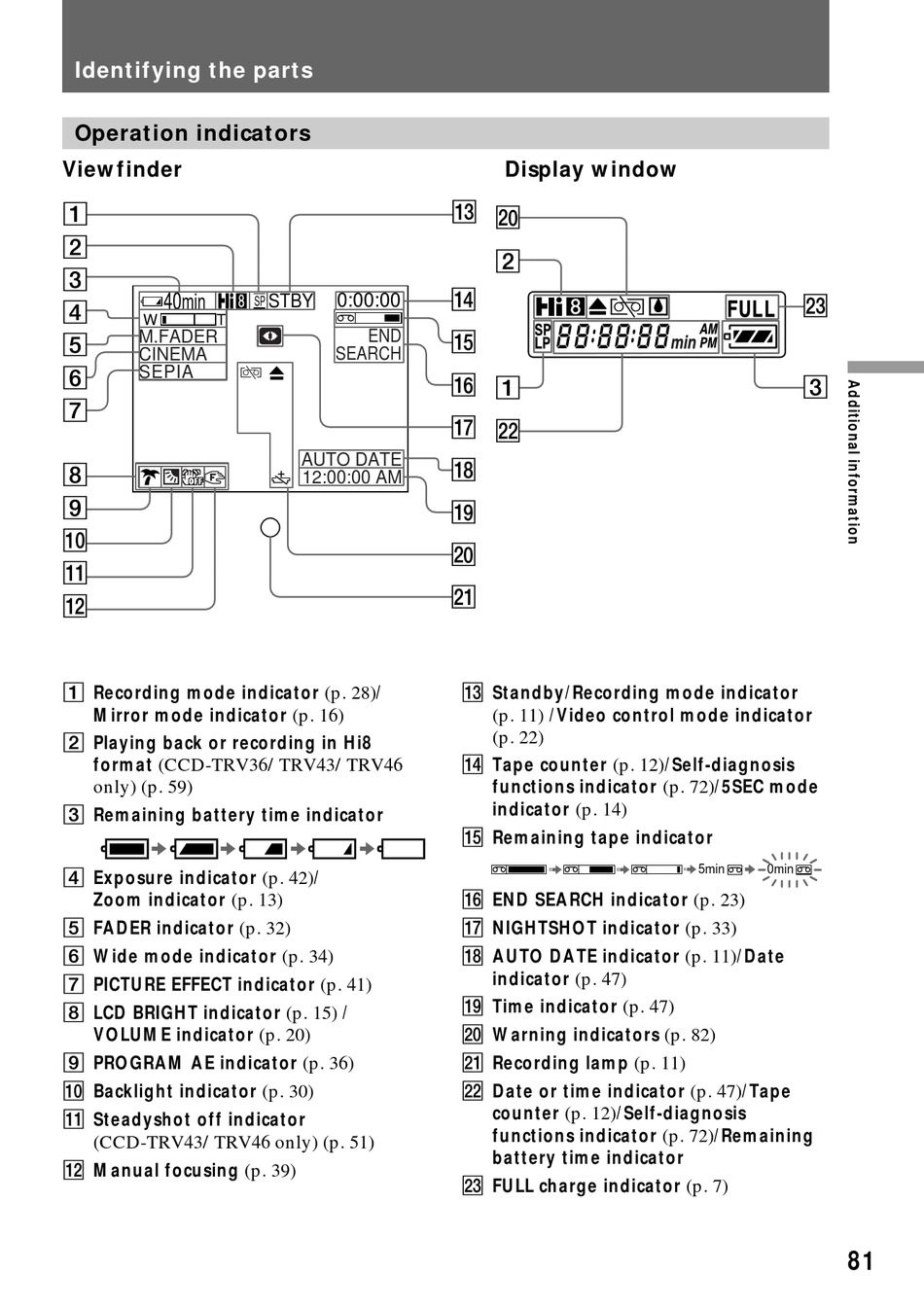

Identifying the parts
Operation indicators
Viewfinder
1
2
3
40
min
4
W T
M.FADER
5
CINEMA
6 SEPIA
7
8
9
0
!¡
!™
1 Recording mode indicator (p. 28)/
Mirror mode indicator (p. 16)
2 Playing back or recording in Hi8
format (CCD-TRV36/TRV43/TRV46
only) (p. 59)
3 Remaining battery time indicator
4 Exposure indicator (p. 42)/
Zoom indicator (p. 13)
5 FADER indicator (p. 32)
6 Wide mode indicator (p. 34)
7 PICTURE EFFECT indicator (p. 41)
8 LCD BRIGHT indicator (p. 15) /
VOLUME indicator (p. 20)
9 PROGRAM AE indicator (p. 36)
0 Backlight indicator (p. 30)
!¡ Steadyshot off indicator
(CCD-TRV43/TRV46 only) (p. 51)
!™ Manual focusing (p. 39)
STBY 0:00:00
SP
END
SEARCH
AUTO DATE
12:00:00 AM
Display window
!£
@º
2
!¢
!∞
!§
1
!¶
@™
!•
!ª
@º
@¡
!£ Standby/Recording mode indicator
(p. 11) /Video control mode indicator
(p. 22)
!¢ Tape counter (p. 12)/Self-diagnosis
functions indicator (p. 72)/5SEC mode
indicator (p. 14)
!∞ Remaining tape indicator
!§ END SEARCH indicator (p. 23)
!¶ NIGHTSHOT indicator (p. 33)
!• AUTO DATE indicator (p. 11)/Date
indicator (p. 47)
!ª Time indicator (p. 47)
@º Warning indicators (p. 82)
@¡ Recording lamp (p. 11)
@™ Date or time indicator (p. 47)/Tape
counter (p. 12)/Self-diagnosis
functions indicator (p. 72)/Remaining
battery time indicator
@£ FULL charge indicator (p. 7)
@£
3
5min 0min
