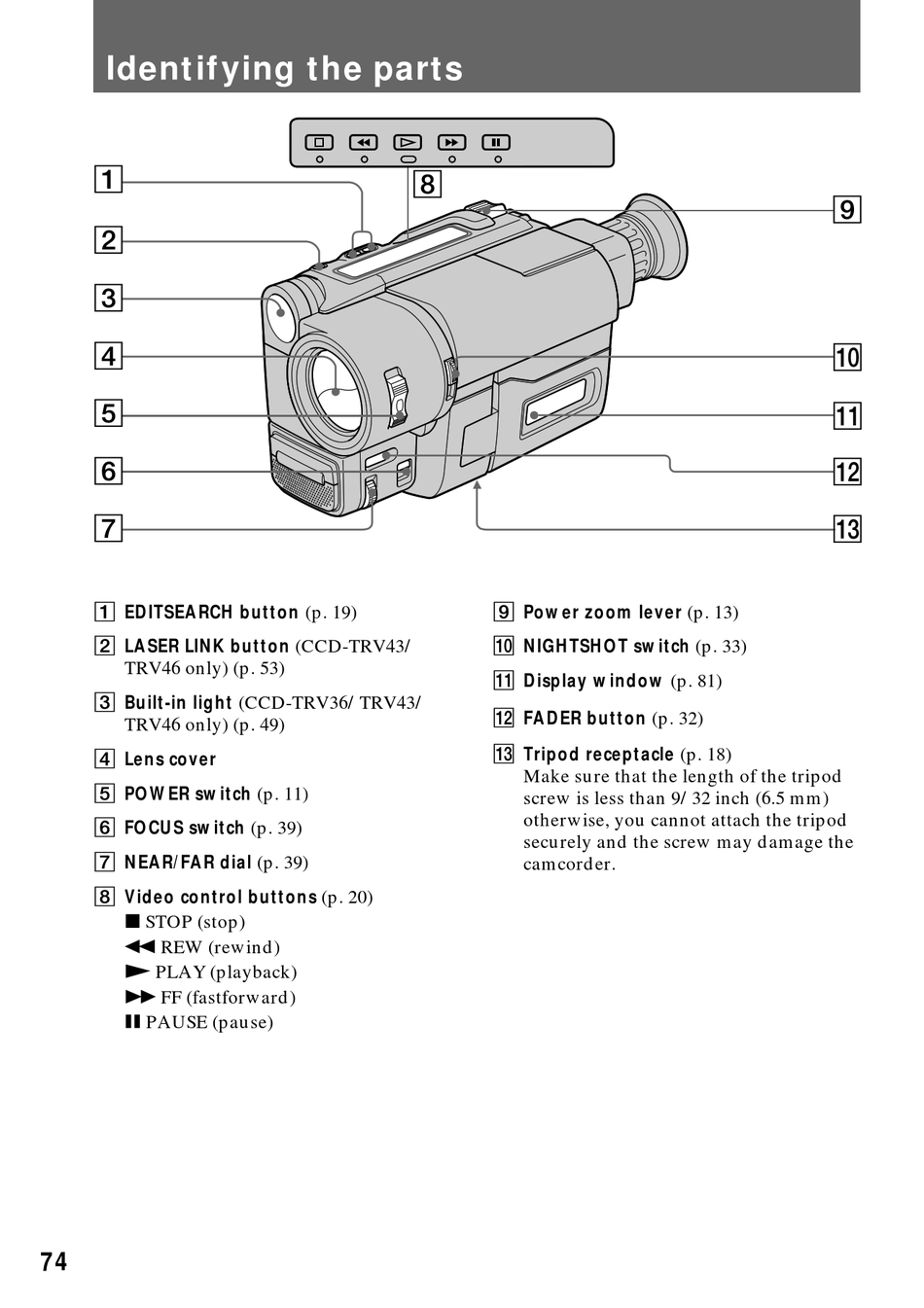

Identifying the parts

1
2
3
4
5
6
7
1 EDITSEARCH button (p. 19)
2 LASER LINK button (CCD-TRV43/
TRV46 only) (p. 53)
3 Built-in light (CCD-TRV36/TRV43/
TRV46 only) (p. 49)
4 Lens cover
5 POWER switch (p. 11)
6 FOCUS switch (p. 39)
7 NEAR/FAR dial (p. 39)
8 Video control buttons (p. 20)
p STOP (stop)
0 REW (rewind)
( PLAY (playback)
) FF (fastforward)
P PAUSE (pause)
74
8
9 Power zoom lever (p. 13)
!º NIGHTSHOT switch (p. 33)
!¡ Display window (p. 81)
!™ FADER button (p. 32)
!£ Tripod receptacle (p. 18)
Make sure that the length of the tripod
screw is less than 9/32 inch (6.5 mm)
otherwise, you cannot attach the tripod
securely and the screw may damage the
camcorder.
