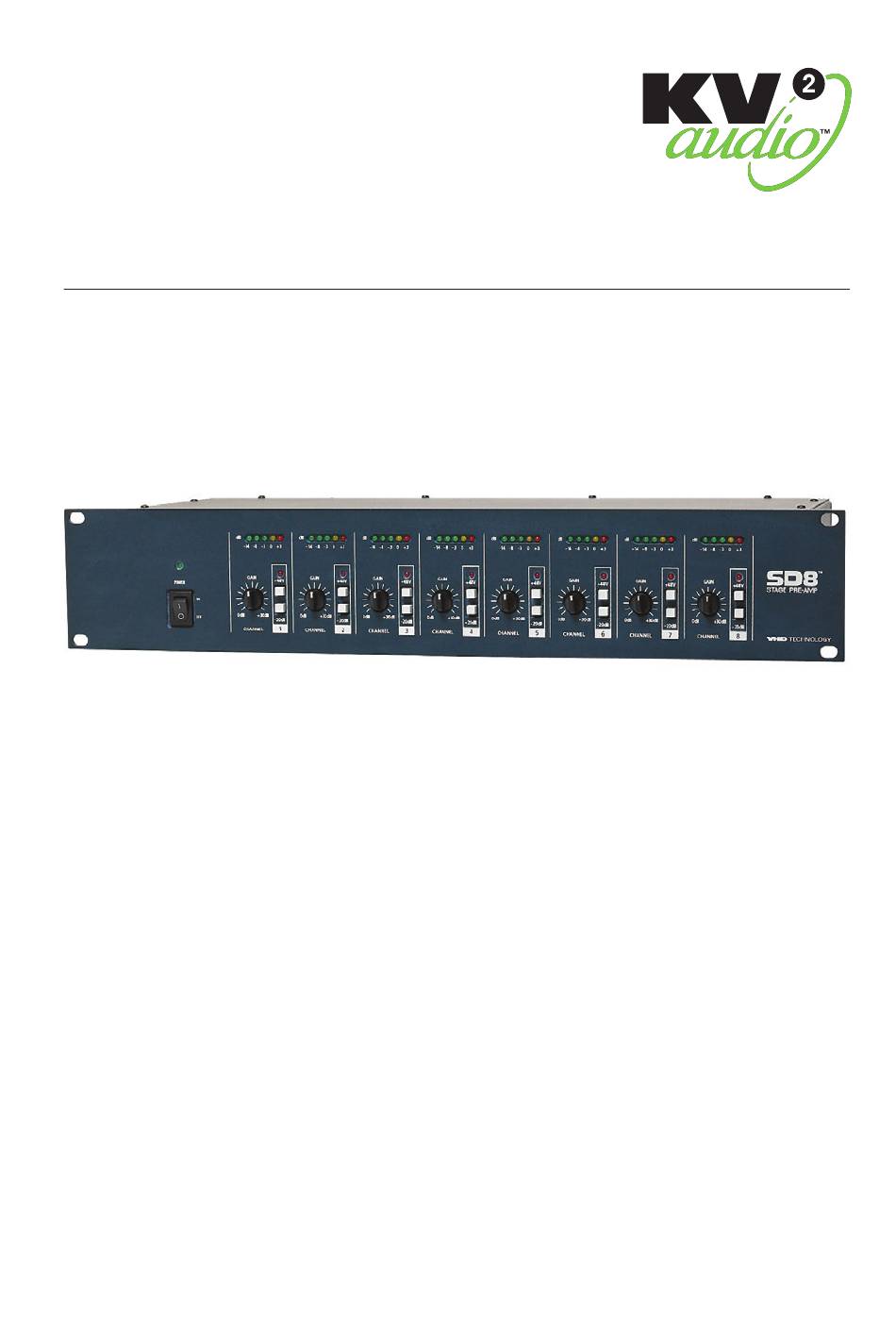

SD8
User Guide
Stage Driver - 8 Channel
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Related Manuals for KV2 Audio SD8
Summary of Contents for KV2 Audio SD8
- Page 1 Stage Driver - 8 Channel The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
- Page 2 - (50 ohms) can drive, without any loss, long symmetrical lines to the mixers - (up to 500m). It is suitable to place the SD8 directly on the stage, close to the active microphones as practical, as most microphones cannot provide loss-free excitation of long cables.
-
Page 3: Table Of Contents
SD8 · Contents Contents Introduction Introduction Dimensions Description Block Diagram (One Channel) Input / Output Connectors Pins Front panel Description Rear panel Description Specifications Warranty · Service... -
Page 4: Introduction

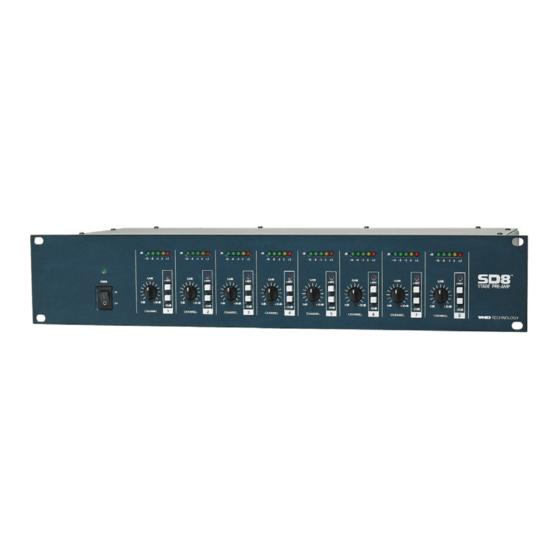

• Can be used with any Audio system for improved results Introduction The VHD SD8 is an eight-channel stage preamp designed with individual line drivers that maintain audio signal integrity over long cable lengths. As cable lengths increase, the length of the cable creates a high capacitance load that most microphones have difficulty in driving. -
Page 5: Description
SD8 · Description Block Diagram (One Channel) Input / Output Connectors Pins Front panel Description Rear panel Description... -
Page 6: Specifications
SD8 · Specifications Specifications System Acoustic Perfomance -1dB Response 6Hz to 500kHz Dynamic Range >120dB Total Harmonic Distortion <0.0005% Output Channels Max. Output Voltage 14V / 7V (50Ω) RMS Max. Output Current 450mA Signal Input Input Channels Input Impedance 20kΩ... -
Page 7: Warranty · Service
Service In the unlikely event that your SD8 develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel. - Page 8 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120013-00-05-0...
