Thermo Scientific Orion Star LogR Quick Start Manual

Key Description
up arrow
power
down arrow
calibrate
digits
measure

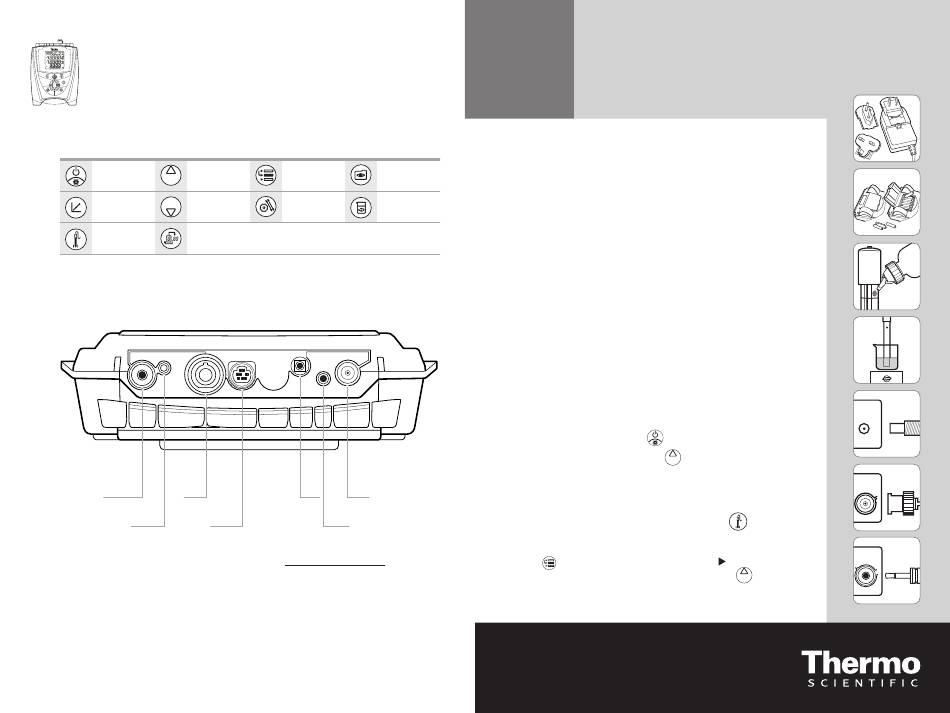

Meter Connections
Stirrer Jack
DO AUTO-STIR BNC
™
or Stir Probe pH/ISE
Pin Tip 8 Pin MiniDIN
Reference
For the complete Orion Star LogR™ User's Guide visit www.thermo.com/water
™
264906-001 RevA
QS-LogR-E 0110
view log
line select
setup
stir
RS232
Power
ATC Ground
Thermo Scientific
Orion Star LogR Meter
™
Quick Start Guide
Preparation
1. Power adapter - Select the appropriate wall socket plug and slide the plug
plate into the groove on the back of the adapter. See A.
Batteries - Select four AA Alkaline batteries. Confirm that the meter is powered
off and remove the battery cover. Orient and insert the batteries as depicted in
the battery compartment housing. Replace the cover. See B.
2. Prepare the electrode according to the directions in the electrode instruction
manual. In general, these steps include:
• Gently remove the protective cap from the sensing element and save for
storage.
• For refillable electrode, remove the fill hole cover and fill the electrode with
the appropriate fill solution. See C.
• Soak the electrode in the storage solution specified in the electrode
instruction manual. See D.
3. Meter connections - Connect the power adapter to the meter and then to the
wall socket. See E. Connect the ISE electrode to the BNC input on the meter.
See F. Connect the stir probe to the stir jack input on the meter. See G.
NOTE: Make sure that all unused inputs on the meter are covered with the
black caps.
Meter Overview
1. To power on the meter, press the key
2. In the measurement screen, press the key to change the value on the top
display line to:
i. pH, RmV, mV, temperature or a blank line
ii. pH, RmV, mV, ISE, temperature or a blank line for the Cat. No. 3115000.
3. To escape out of any meter function, press and hold the
meter returns to the measurement mode.
4. The middle display line is only active when the LogR setting is in use. Press
the to choose the top or middle display line. The
selected line. When the middle line is selected, press the
resistance of the glass pH bulb or to show a blank line.
A
B
C
D
E
key until the
F
will point to the
key to show the
G
