Thermo Scientific Orion Star Plus Quick Start Manual

Key Description
up arrow
power
down arrow
calibrate
digit
measure

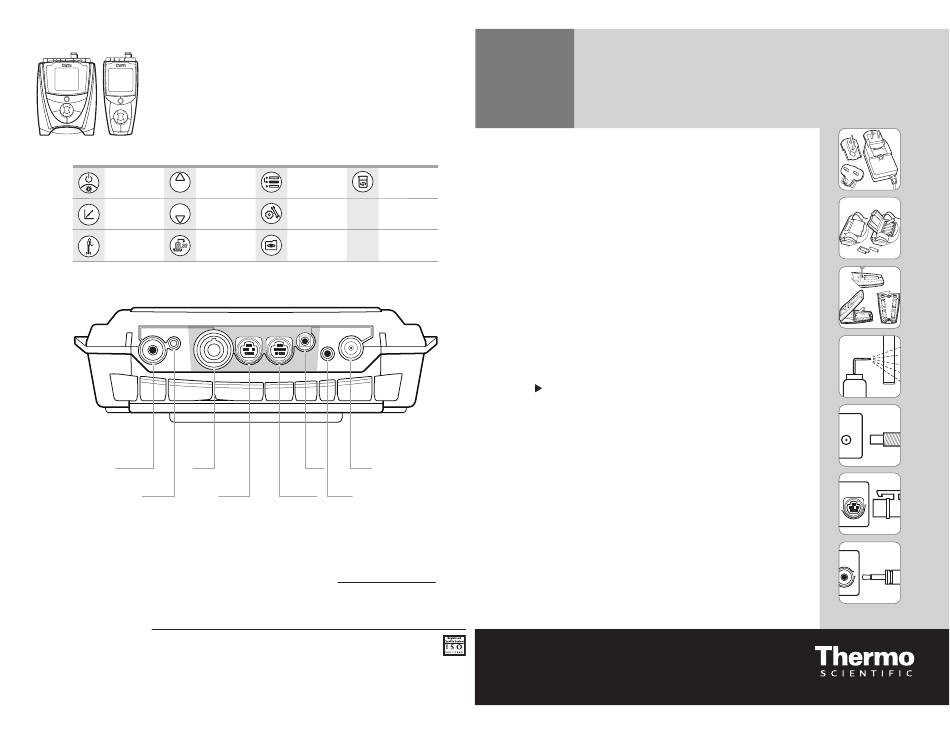

Meter Connections
Stir Jack – Stirrer or BNC – pH,
DO AUTO-STIR ™ Probe ORP or ISE
Pin Tip – 8 Pin MiniDIN –
Reference ATC or Cond
All connectors on the 5-Star Plus benchtop meter are depicted above. All connectors on the 5-Star
Plus portable meter are highlighted in gray.
The 3-Star Plus and 4-Star Plus meters will have fewer connectors. For example, the 3-Star Plus
portable conductivity meter will only have 8 pin miniDIN and RS232 connectors.
™
For the complete Orion Star and Star Plus meter user guide, visit www.thermo.com/water.
©2008 Thermo Fisher Scientifi c Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientifi c Inc.
and its subsidiaries. ROSS and the COIL trade dress are trademarks of Thermo Fisher Scientifi c Inc.
Environmental Instruments
North America
Water Analysis Instruments 166 Cummings Center
Beverly, MA 01915 USA
Toll Free: 1-800-225-1480
Tel: 1-978-232-6000
Dom. Fax: 1-978-232-6015
257311-001 Rev. A 07-08 Int'l Fax: 978-232-6031
(benchtop
line select stir
meters only)
setup
view log
RS232
Power
9 Pin
MiniDIN – DO Ground
Europe Asia Pacifi c
Denmark House, Angel Drove Blk 55, Ayer Rajah Crescent
Ely, Cambridgeshire #04-16/24, Singapore 139949
England, CB7 4ET Tel: 65-6778-6876
Fax: 65-6773-0836
Tel: 44-1353-666111
Fax: 44-1353-666001
www.thermo.com/water
Thermo Scientifi c
English
™
Orion Star Plus Conductivity Meter
Cond
Quick Start Guide
Preparation
1. Power adapter (benchtop meters only) – Select the appropriate wall outlet plug
and slide the plug plate into the groove on the back of the adapter. See A.
Batteries – Select four AA alkaline batteries. Confi rm that the meter is off and
remove the battery cover. Orient and insert the batteries as depicted in the
battery compartment housing. Replace the cover. See B and C.
2. Prepare the conductivity probe according to the directions in the conductivity
probe user guide. In general, this includes rinsing the cell with deionized
water. See D.
3. Meter connections – Connect the power adapter to the meter and then to the
wall outlet (benchtop meters only). See E. Connect the conductivity probe to
the 8 pin miniDIN input on the meter. See F. Connect the stirrer probe to the
stir jack input on the meter (benchtop meters only). See G.
Note: All unused inputs on the meter should be covered with the black caps.
Meter Overview
1. To power on the meter, press the power key.
2. Press the line select key to choose the top, middle or bottom display line.
The icon will point to the selected line.
3. In the measurement mode, press the up arrow or down arrow key to change
the measurement units on the middle display line to conductivity (μS/cm
or mS/cm), total dissolved solids (mg/L), salinity (ppt), resistivity (MΩ-cm),
temperature (no icon) or a blank line.
4. To escape out of any meter function, press and hold the measure key until the
meter returns to the measurement mode.
5. The 3-Star Plus, 4-Star Plus and 5-Star Plus conductivity meters can perform a
one point manual calibration, up to a three point automatic calibration or up to
a fi ve point direct calibration.
A
B
C
DI
D
E
F
G
