PA-800 SERIES NEXT-GEN FIREWALL QUICK START GUIDE
1
Before You Begin

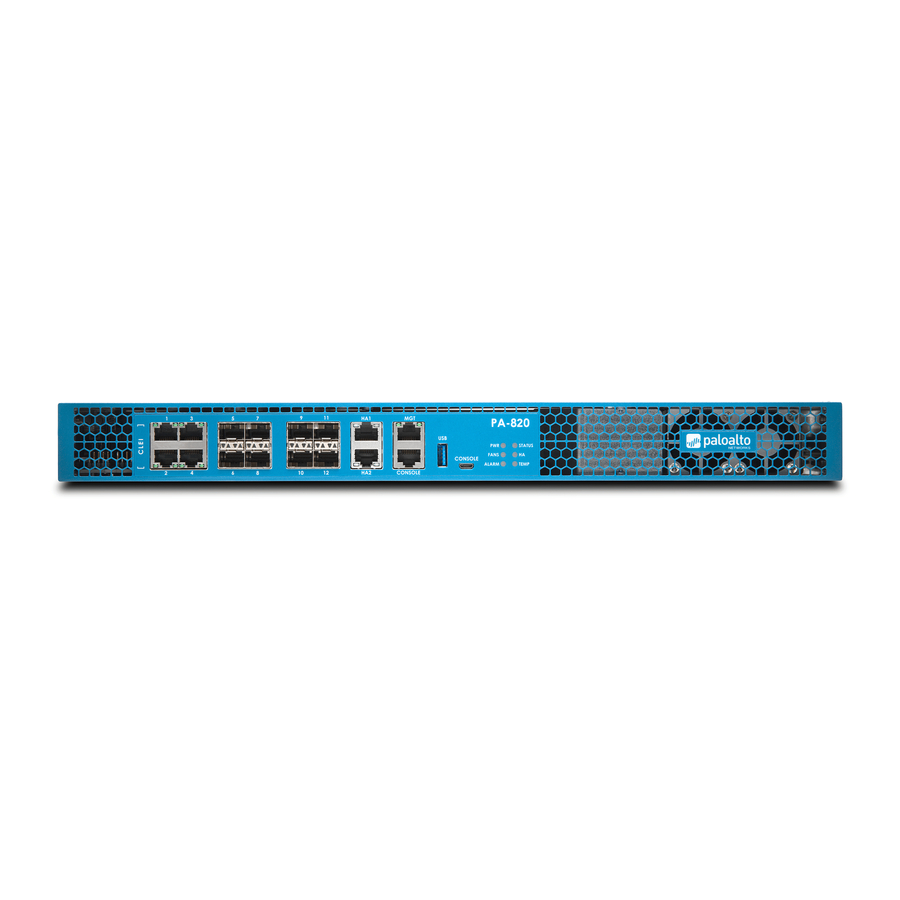

Use this document to install and begin setting up your Palo Alto Networks PA-820 or PA-850 next-generation firewall. Refer to the
PA-800 Series Next Gen Firewall Hardware Reference at
information, specifications, and more detailed procedures for installing the firewall.
• Verify that the installation site has adequate air circulation and AC power.
• Have a #1 and #2 Phillips-head torque driver available. Use the #1 Phillips-head bit to attach the rack-mount brackets to the
firewall and use the #2 bit to secure the rack-mount brackets to the equipment rack posts.
• Unpack the equipment and verify that you received the following items:
Qty Description
1 PA-800 Series next-generation firewall.
1 or 2 AC power cord (the PA-820 firewall ships with 1 cord and the PA-850 ships with 2 cords).
2 (PA-850 only) Velcro straps to secure the AC power cords to the power supplies.
1 Standard Type-A USB to micro USB console cable.
1 Standard RJ-45 CAT6 Ethernet cable for management (MGT) port access.
2 Front rack-mount brackets used to secure the firewall to a two-post or four-post equipment rack.
8 #6-32 x 5/16" front rack-mount bracket screws to attach the front rack-mount brackets to the firewall.
4 #10-32 x 3/4" rack-mount screws to secure the front rack-mount brackets to a rack with #10-32 threaded holes.
4 #12-24 x 1/2" rack-mount screws to secure the front rack-mount brackets to a rack with #12-24 threaded holes.
1 End User License Agreement (EULA).
1 China RoHS declaration.
2

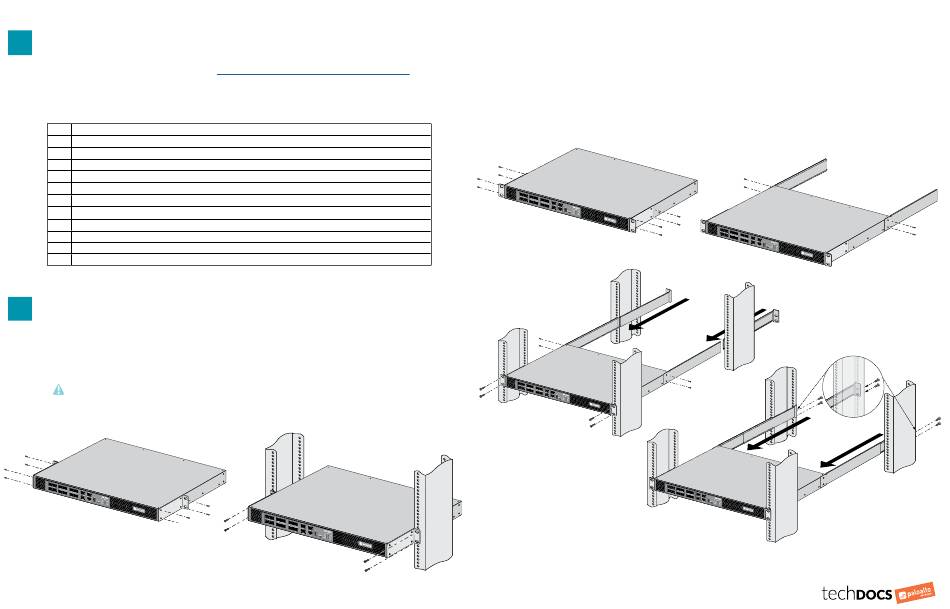

Rack Mount the Firewall
The PA-800 Series firewall ships with two rack-mount brackets for an installation in a two-post or four-post 19" equipment
rack. If you install the firewall in a four-post rack, you can purchase an optional four-post kit to secure the firewall to the
back rack posts to provide additional support. Both procedures are covered in this section.
Install the Firewall in a Two-Post Equipment Rack
1. Attach one rack-mount bracket to each side of the firewall using four #6-32 x 5/16" screws for each bracket
torque to 9 in-lbs. For a two-post rack, we recommend that you install the brackets in the mid-mount position as shown in
Figure 1. For a four-post rack or cabinet, install the rack-mount brackets in the front-mount position as shown in
Ensure that the equipment rack is properly anchored so it can support the weight of the installed equipment.
2. With help from another person, hold the firewall in place in the rack and secure the rack-mount brackets to the rack using
two screws for each bracket (Figure 2). Use the appropriate screws (#10-32 x 3/4" or #12-24 x 1/2") for your rack and
torque to 25 in-lbs. Use cage nuts (not provided) to secure the screws if the rack has square holes.
Figure 1
Attach Front Rack-Mount Brackets
paloaltonetworks.com/documentation
https:/ /www.paloaltonetworks.com/documentation/platforms
(Figure
Figure 2
Secure the Firewall to the Rack
(Optional) Install the Four-Post Rack Kit
1. Attach one rack-mount bracket to each side of the firewall using four #6-32 x 5/16" screws for each bracket
for safety 9 in-lbs.
2. Attach one side rack-mount rail to each side of the firewall using two #6-32 x 5/16" screws for each bracket
9 in-lbs. The side rack-mount rail screws ship with the four-post rack kit.
3. With help from another person, hold the firewall in the rack and secure the rack-mount brackets to the front rack posts using two
screws for each bracket (Figure
Use cage nuts (not provided) to secure the screws if the rack has square holes.
4. Slide one back rack-mount bracket into each of the two previously installed side rack-mount rails and secure the brackets to the back
rack posts (Figure 6) using the appropriate screws for your rack (#10-32 x 3/4" or #12-24 x 1/2") and torque to 25 in-lbs.
Figure 3
Attach Front Rack-Mount Brackets
1) and
Figure 3.
Figure 5
Secure the Firewall to the Front Rack Posts
5). Use the appropriate screws (#10-32 x 3/4" or #12-24 x 1/2") for your rack and torque to 25 in-lbs.
Attach Side Rack-Mount Rails
Figure 6
Install the Back Brackets and Secure them to the Back Rack Posts
(Figure 3) and torque to
(Figure 4) and torque to
Figure 4
