IDEAL AP140 PRO Operating Instructions Manual

Hide thumbs Also See for AP140 PRO:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Operating Instructions
Air Purifier
IDEAL AP140 PRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP140 PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDEAL AP140 PRO

Summary of Contents for IDEAL AP140 PRO

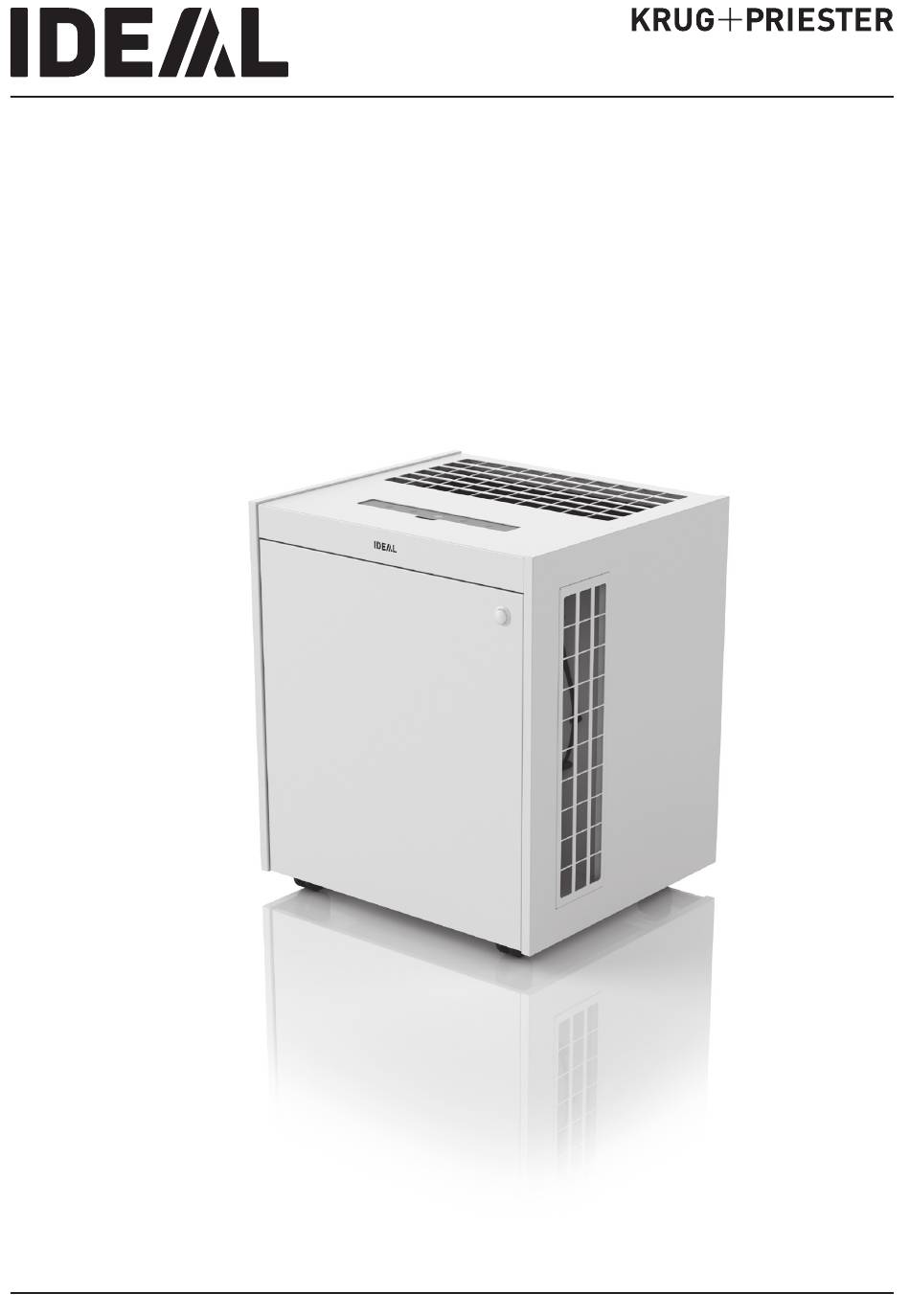

  • Page 1 Operating Instructions Air Purifier IDEAL AP140 PRO...

  • Page 2: Table Of Contents

    Operating Instructions (25 – 47) Intended use Safety instructions Product features Included in the box Unpacking and setting up Control panel Fan speeds Timer function Quiet function Air quality indicator Filter replacement indicator Daylight sensor IR receiver Air quality sensor Remote control (when using for the first time) Remote control (replacing the battery) Remote control (function)

  • Page 3: Intended Use

    Safety instructions Introduction Thank you for choosing a device from IDEAL. Intended use • The device is used exclusively for cleaning the ambient air indoors. • Please read these operating instructions before starting to use the device and please follow the safety instructions.
  • Page 4 Safety instructions Safety instructions • Do not block the air intake and outlet. • K eep this air purifier away from direct sunlight, naked flames or heat. • O nly use the air purifier in living spaces and within the specified technical parameters. Improper usage may pose a threat to life and health. • D o not use the unit near a fire alarm. If the outlet air is blowing towards a fire alarm, the alarm may respond late or not at all. Caution Risk of injury due to electric shock. Always disconnect the mains plug prior to: •...

  • Page 5: Product Features

    Remote control (including filter cartridge) • With self-adhesive magnetic film • With 3V lithium battery Luftreiniger Betriebsanleitung Air Purifier Operating Instructions Purificateur Mode d´emploi Purificador Depuratore Instrucciones de uso Zuiveraar Manuale d´istruzione Gebruiksaanwijzing IDEAL AP140 PRO www.ideal.de Power cable Printed operating instructions...

  • Page 6: Unpacking And Setting Up

    Unpacking and setting up Installation guidelines for optimum performance: • Place the device at least 10 cm away from the wall. • Keep the device away from areas subjected to draft (wind). • Make sure that furniture, fabrics or other objects do not come in contact with the air intake/ outlet or block them.
  • Page 7 Unpacking and setting up Place the air purifier incl. packaging carefully on the castors (tilt the wooden crate by 90°). Cut the plastic belt. Remove the cardboard cover. Carefully pull the machine forwards out of the wooden crate. Remove the protective foil. Unlock the door by pressing the push lock, the door knob appears.
  • Page 8 Unpacking and setting up Insert the filter cartridge with the three tabs in the notches provided and lock in position by turning clockwise Tip: For this, the filter cartridge can be placed on the assembly pins (X). Close the door and lock it by pressing the push lock. Connect the power cable to the device first, then to the socket. Safety information Operating the air purifier without panels and protective covers (motor protection grille,...

  • Page 9: Control Panel

    Control panel On/off button Air quality indicator Quiet button Fan speed button Timer button Fan speed indicator Timer indicator Filter replacement Daylight sensor Air quality sensor Quiet indicator indicator IR receiver Note: The air quality sensor (L) is recalibrated the first time you switch it on (A) and after being disconnected from the mains power supply.

  • Page 10: Fan Speeds

    Control panel On/off button Air quality indicator Quiet button Fan speed button Timer button Fan speed indicator Timer indicator Filter replacement Daylight sensor Air quality sensor Quiet indicator indicator IR receiver Fan speeds • Press the on/off button (A) to switch the air purifier on or off. • T he air purifier runs in automatic mode . In automatic mode, the fan speed (G) automatically adapts to the measured air quality.

  • Page 11: Quiet Function

    Filter replacement indicator (F) An illuminated red " " on the control panel indicates that the filter needs replacing. • T he life expectancy of the filter is approx. 1 year (depending on operation and purification activities). • O nly use original IDEAL filter cartridge. The device will only function with an original IDEAL filter cartridge. Daylight sensor (J) The display brightness is automatically adjusted to the ambient light. IR receiver (K) Receives the signals from the remote control.

  • Page 12: Remote Control (When Using For The First Time)

    Remote control Battery usage • Always use 3V lithium batteries CR2025 for the remote control. • Incorrect battery usage may result in leakage of battery fluid and/or damage. • If the remote control is not going to be used for a long time, please remove the battery. Unsuitable location •...

  • Page 13: Remote Control (Replacing The Battery)

    Remote control Replacing the battery • Open the battery compartment by pressing (1.) and pulling out (2.) at the same time. Take out the flat battery. • Insert a new battery into the battery compart- ment, making sure the polarity is correct (+ / -). •...

  • Page 14: Remote Control (Function)

    Remote control On/off button Quiet button Automatic button Turbo Auto Timer buttons Fan speed buttons Locking button Function Select the required fan speed O: Switches the air purifier to automatic mode . P: Switches the air purifier on/off . Q: Switches the air purifier to Quiet mode . Select the required timer time Press the locking button to lock the buttons on the control panel (air purifier).

  • Page 15: Changing The Filter

    Changing the filter Filter replacement (e.g. in accordance with the filter replacement indicator F, see page 34) Note: Only original IDEAL filter cartridges (order from www.ideal.de) may be used. No tools are required to replace the filter cartridge. CAUTION: Disconnect the mains plug! Unlock the door by pressing the push lock, the door knob appears.

  • Page 16: App Control / Wlan

    App Control / WLAN App Control Your purifier can additionally be controlled by the "IDEALAIRPRO" App via your smartphone / tablet (iOS /Android). WLAN Air quality indicator Quiet button Enabling/disabling WLAN The air purifier is connected to the power supply and switched off. Press and hold down the Quiet button (D) until the air quality indicator (E) flashes The WLAN is enabled ...

  • Page 17: Cleaning And Maintenance / Accessories

    • Do not use any substances containing silicone, since this could destroy the air quality sensor. • Do not test the effectiveness of the air quality sensor with high quantities of gas, or alcohol, since this could destroy the air quality sensor. Accessories You can source accessories via your dealer or at www.ideal.de. IDEAL filter cartridge Order no. 7320 099...

  • Page 18: Troubleshooting

    (page 31). Has a filter cartridge been inserted? Is the filter cartridge inserted correctly?  M ake sure that an original IDEAL filter cartridge is inserted.  M ake sure that the filter cartridge is clicked in place with all 3 tabs and is fully locked (padlock icon, page 31).
  • Page 19 Troubleshooting The indicators on the control panel do not Is the air purifier switched on? light up at all.  S witch the air purifier on by pressing the on/off button (A, page 32). Has the Quiet function been activated?  Disable the Quiet function by pressing the Quiet button (D, page 34).
  • Page 20 Troubleshooting The air purifier is making loud noises. Is the filter cartridge really dirty?  C lean the pre-filter with a vacuum cleaner. Is the air purifier located on an even surface?  Place the device on an even surface. Is the air purifier running at a high fan speed? ...

  • Page 21: Technical Data

    Technical data IDEAL AP140 PRO: Power supply 200-240V 50/60Hz / 100-120V 50/60Hz   Power consumption 175W (200-240V) / 175W (100-120V) Suitable for rooms 120 to 160 m² * Air flow rate (max.) 1400 m³/h Dimensions (L × W × H) 633 ×...
  • Page 22 IDEAL provides a warranty for this device from the date of purchase. The terms of warranty are defined by our local representative. • If a material or design defect occurs during the warranty period, IDEAL shall repair or replace the device, or repay the purchase price, at its discretion.
  • Page 23 The company Krug + Priester has the following certifications: • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2009 • Energy management system according to DIN EN ISO 50001:2011...
  • Page 24 To file a warranty claim, the device must still bear its original identification plate. Subject to technical changes. EC-declaration of conformity - Herewith we declare that GS-IDENT. No. UL-IDENT. No. IDEAL AP140 PRO Made in Germany 11732001 10732001 - complies with the following provisons applying to it 2014/35/EU Low voltage directive 2011/65/EU...
  • Page 25 Instrukcja pobrana ze strony loveair.pl...
