Air Purifier
EN
Operating Instructions
IDEAL AP60 PRO
IDEAL AP80 PRO
www.idealhealthstore.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP80 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for IDEAL AP80 PRO

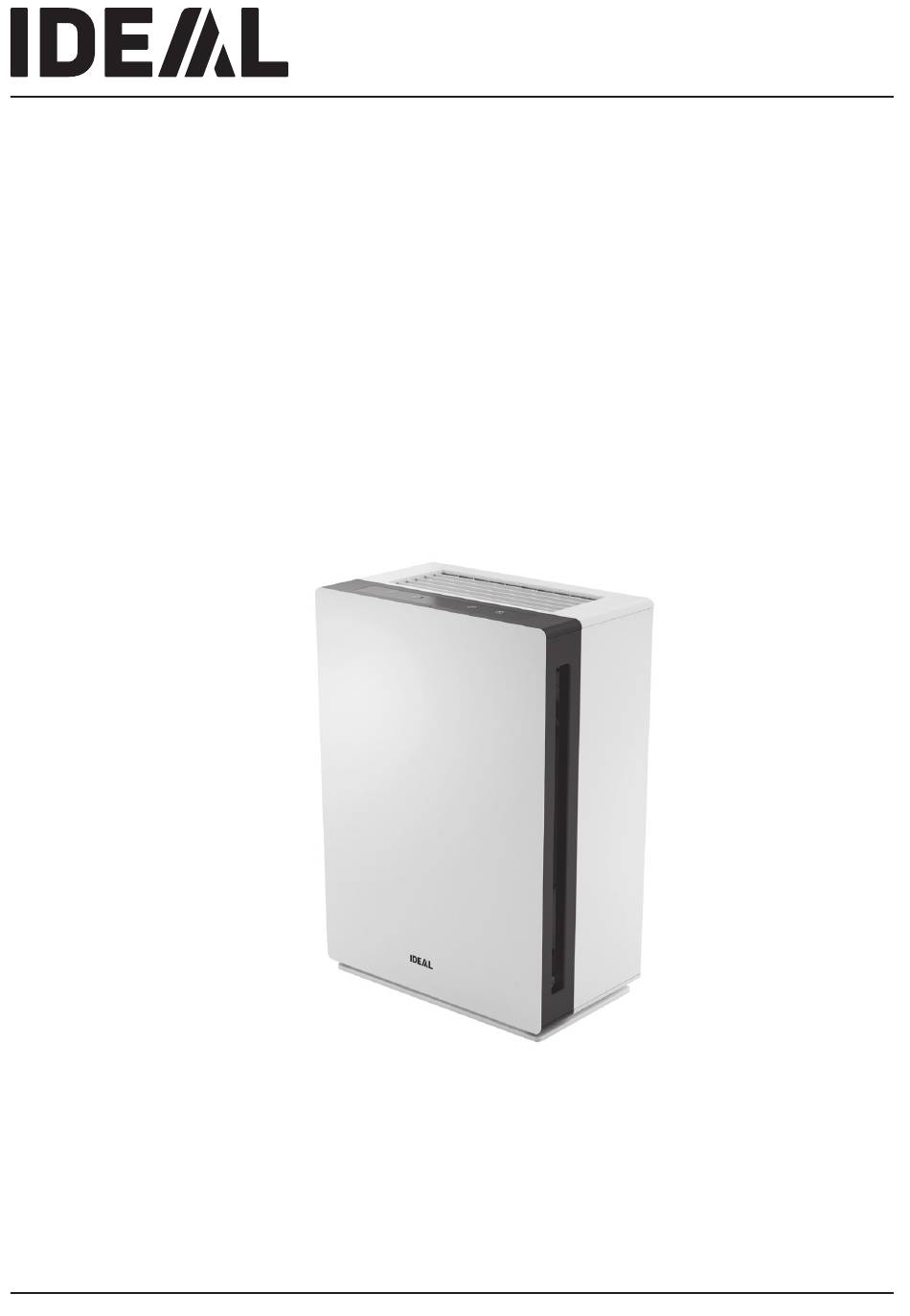

  • Page 1 Air Purifier Operating Instructions IDEAL AP60 PRO IDEAL AP80 PRO www.idealhealthstore.com...
  • Page 2: Table Of Contents

    Operating Instructions (25 – 47) Intended use Safety instructions Product features Included in the box Unpacking and setting up Overview and description of parts Control panel Fan speeds Timer function Quiet function Air quality indicator Filter replacement indicator Daylight sensor IR receiver Air quality sensor Remote control (when using for the first time)
  • Page 3: Intended Use

    Safety instructions Introduction Thank you for choosing a device from IDEAL. Intended use • The device is used exclusively for cleaning the ambient air indoors. • Please read these operating instructions before starting to use the device and please follow the safety instructions.
  • Page 4 Safety instructions Safety instructions • Do not block the air intake and outlet. • K eep this air purifier away from direct sunlight, naked flames or heat. • O nly use the air purifier in closed interiors and within the specified technical parameters. Improper usage may pose a threat to life and health. • D o not use the unit near a fire alarm. If the outlet air is blowing towards a fire alarm, the alarm may respond late or not at all. Caution Risk of injury due to electric shock. Always disconnect the mains plug prior to: •...
  • Page 5: Product Features

    (including filter cartridge) • With self-adhesive magnetic film • With 3V lithium battery Luftreiniger Betriebsanleitung Air Purifier Operating Instructions Purificateur Mode d´emploi Purificador Depuratore Instrucciones de uso Zuiveraar Manuale d´istruzione Gebruiksaanwijzing IDEAL AP60 PRO IDEAL AP80 PRO www.ideal.de Power cable Printed operating instructions...
  • Page 6: Unpacking And Setting Up

    Unpacking and setting up Installation guidelines for optimum performance: • The air intake ducts on the top can be used as handles (see adjacent diagram). • Place the device at least 10 cm away from the wall. • Keep the device away from areas subjected to draft (wind). •...
  • Page 7 Unpacking and setting up Hold the filter cartridge with both hands using the recessed grips provided and turn it anti-clockwise (9.). Take out the filter cartridge (10.) and remove the protective film (11.). Insert the filter cartridge with the three tabs in the notches provided and lock in position by turning clockwise (12.). Hook in the front panel at the bottom first (13.), then pivot upwards and press shut (14.). Connect the power cable to the device first (15.), then to the socket (16.).
  • Page 8: Overview And Description Of Parts

    Overview and description of parts Air outlet grill Control panel Air intake ducts Filter cartridge Front panel Power cable...
  • Page 9: Control Panel

    Control panel On/off button Air quality indicator Quiet button Fan speed button Timer button Fan speed indicator Timer indicator Filter replacement Daylight sensor Air quality sensor Quiet indicator indicator IR receiver Note: The air quality sensor (L) is recalibrated the first time you switch it on (A) and after being disconnected from the mains power supply.
  • Page 10: Fan Speeds

    Control panel On/off button Air quality indicator Quiet button Fan speed button Timer button Fan speed indicator Timer indicator Filter replacement Daylight sensor Air quality sensor Quiet indicator indicator IR receiver Fan speeds • Press the on/off button (A) to switch the air purifier on or off. • T he air purifier runs in automatic mode . In automatic mode, the fan speed (G) automatically adapts to the measured air quality.
  • Page 11: Quiet Function

    An illuminated red " " on the control panel indicates that the filter needs replacing. • T he life expectancy of the filter is approx. 1 year (depending on operation and purification activities). • I f odours are no longer being filtered out, or if the filter produces unpleasant odours, then the filter cartridge needs to be replaced sooner. • O nly use original IDEAL filter cartridge. The device will only function with an original IDEAL filter cartridge. Daylight sensor (J) The display brightness is automatically adjusted to the ambient light. IR receiver (K) Receives the signals from the remote control.
  • Page 12: Remote Control (When Using For The First Time)

    Remote control Battery usage • Always use 3V lithium batteries CR2025 for the remote control. • Incorrect battery usage may result in leakage of battery fluid and/or damage. • If the remote control is not going to be used for a long time, please remove the battery. Unsuitable location •...
  • Page 13: Remote Control (Replacing The Battery)

    Remote control Replacing the battery • Open the battery compartment by pressing (A) and pulling out (B) at the same time. Take out the flat battery. • Insert a new battery into the battery compart- ment, making sure the polarity is correct (+ / -). •...
  • Page 14: Remote Control (Function)

    Remote control On/off button Quiet button Automatic button Turbo Auto Timer buttons Fan speed buttons Locking button Function Select the required fan speed O: Switches the air purifier to automatic mode . P: Switches the air purifier on/off . Q: Switches the air purifier to Quiet mode . Select the required timer time Press the locking button to lock the buttons on the control panel (air purifier).
  • Page 15: Changing The Filter

    Changing the filter Filter replacement (e.g. in accordance with the filter replacement indicator F, see page 34) Note: Only original IDEAL filter cartridges (order from www.ideal.de) may be used. No tools are required to replace the filter cartridge. CAUTION: Disconnect the mains plug! The front panel is hooked in at the bottom in two places, and kept shut with 4 magnets.
  • Page 16: App Control / Wlan

    App Control / WLAN App Control Your purifier can additionally be controlled by the "IDEALAIRPRO" App via your smartphone/tablet (iOS /Android). WLAN Air quality indicator Quiet button Enabling/disabling WLAN The air purifier is connected to the power supply and switched off. Press and hold down the Quiet button (D) until the air quality indicator (E) flashes The WLAN is enabled  when the air quality indicator (E) flashes blue The WLAN is disabled ...
  • Page 17: Cleaning And Maintenance / Accessories

    • Do not test the effectiveness of the air quality sensor with high quantities of gas, or alcohol, since this could destroy the air quality sensor. Accessories You can source accessories via your dealer or at www.ideal.de. IDEAL filter cartridge Order no. 8741 099 Wall mount Order no.
  • Page 18: Troubleshooting

    (page 30). Has a filter cartridge been inserted? Is the filter cartridge inserted correctly?  M ake sure that an original IDEAL filter cartridge is inserted.  M ake sure that the filter cartridge is clicked in place with all 3 tabs and is fully locked (padlock icon, page 30).
  • Page 19 Troubleshooting The indicators on the control panel do not Is the air purifier switched on? light up at all.  S witch the air purifier on by pressing the on/off button (A, page 32). Has the Quiet function been activated?  Disable the Quiet function by pressing the Quiet button (D, page 34).
  • Page 20 Troubleshooting The air purifier is making loud noises. Is the filter cartridge really dirty?  C lean the pre-filter with a vacuum cleaner. Is the air purifier located on an even surface?  Place the device on an even surface. Is the air purifier running at a high fan speed? ...
  • Page 21: Technical Data

    468 × 275 × 668 mm Weight 15 kg 56,6 dB(A) Volume at turbofan speed (max.) 16,5 dB(A) Volume in Quiet mode (min.) IDEAL AP80 PRO: Power supply 200-240V 50/60Hz / 100-120V 50/60Hz   Power consumption 175W (200-240V) / 180W (100-120V) Suitable for rooms 70 to 90 m²...
  • Page 22 IDEAL provides a warranty for this device from the date of purchase. The terms of warranty are defined by our local representative. • If a material or design defect occurs during the warranty period, IDEAL shall repair or replace the device, or repay the purchase price, at its discretion.
  • Page 23 • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2015 • Energy management system according to DIN EN ISO 50001:2018...
  • Page 24 - Herewith we declare that GS-IDENT. No. UL-IDENT. No. IDEAL AP60 PRO Made in Germany 11874101 10874101 IDEAL AP80 PRO Made in Germany 11874102 10874102 - complies with the following provisons applying to it 2014/35/EU Low voltage directive 2011/65/EU, 2015/863/EU...
