IDEAL AP 100 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Air Purifiers
EN Operating Instructions
AP 100
EN
Please read and follow all safety rules and instructions in this manual
before operating.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDEAL AP 100

Summary of Contents for IDEAL AP 100

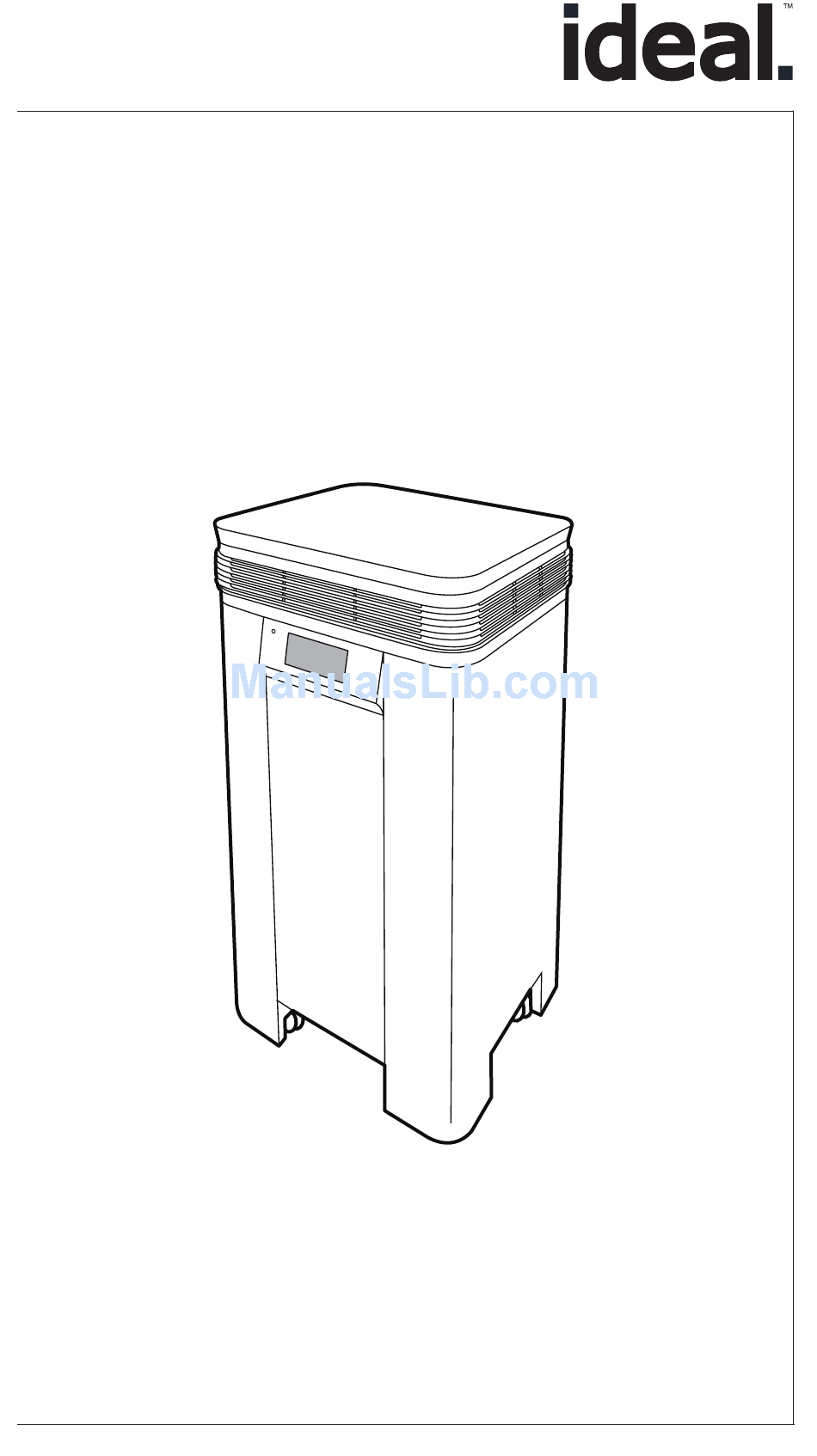

  • Page 1 Air Purifiers EN Operating Instructions AP 100 Please read and follow all safety rules and instructions in this manual before operating.

  • Page 2: Table Of Contents

    AP 100 TABLE OF CONTENTS Safety precautions 1. When Installing Caution | 2. When Using 3. When Cleaning Names of Each Part Screen Composition Preparation | Installing and Preparing 1. Select Installation Location 2. Filter Installation Using 1. Initial Action 2.
  • Page 3 Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6 Fine Mesh PM2.5 Filter Antimicrobial Active Carbon Filter PlasmaWave® True HEPA Filter Material Cleancel® Pre-Filter Stage 1: Fine Mesh Cleancel Pre-Filter ® Cleansing Filters large household particles such as dust, pet hair, filter section pollen, and lint.
  • Page 4 AP 100 FEATURES Smart sensor Outdoor/indoor environment information Operates automatically by comprehensively analyzing and The home screen shows local weather detecting indoor air contamination data, as temperature, weather levels through dust/smell/ conditions and Pollution level illumination level sensors. (dust PM2.5) along with the indoor air conditions.

  • Page 5: Product Specifications

    Safety Instructions | Installation Product Specifications Before operating this equipment, carefully read and follow these safety cautions and instructions to avoid damage and ensure safe use. Follow these instructions to reduce the risk of serious WARNING injury or death. Failure to follow these safety instructions may lead to NOTICE personal injury or property damage.

  • Page 6: Caution

    | Safety Instructions Installation AP 100 Installation Do not install near electronics such Do not place the unit facing into as TVs, radios, or air conditioners. wind or drafts. Electromagnetic interference may cause This may cause the sensors to fail.
  • Page 7 Safety Instructions | Operation Operation Do not use in places that are very Unplug the power cord when not humid or moist or where the unit in use for long periods. may get wet, such as bathrooms. Leaving it plugged in could cause the insulation to deteriorate, posing a risk of This may result in fire or electric shock.
  • Page 8 | Safety Instructions Operation AP 100 Operation Do not unplug or move the unit Make sure the filters have been while it is running. inserted before running the unit. This may cause product failure or fire. Running it without filters shortens the product’s service life and may cause...
  • Page 9 This may cause product failure, electric contact the IDEAL service center. shock, or fire. If repairs are needed, contact the service center. Such occurrences may lead to electric shock or fire.

  • Page 10: When Cleaning

    | Safety Instructions Cleaning AP 100 Operation Do not tie up or bundle the power Do not use for specialized cord when operating the unit. purposes or sites, such as places devoted to animals and plants, This may cause electric shock or fire.

  • Page 11: Names Of Each Part

    Set-up | Names of parts Name of Each Part | Front | Top cover Air vent (4 directions) Light detecting sensor Full Color LCD Touch screen Castor Power plug (120V) - 49 -...
  • Page 12 | Set-up Names of parts AP 100 | Back | Top cover Top cover release button 4 True HEPA Filter Speaker Dust sensor Detects dust density PlasmaWave ® Smell sensor (interior) Detects indoor smells 3 Active Carbon Filter 2 Antimicrobial PM2.5 Filter 1 Fine Mesh Cleancel®...

  • Page 13: Screen Composition

    Set-up | Names of parts Screen Composition | Main (Home) Screen | The color of the main screen will change depending on the condition of the indoor air. Brown: poor / Green: fair / Blue: good Temperature Contamination level Power condition display information The power to the...

  • Page 14: Filter Replacement

    | Set-up Names of parts AP 100 | Menu Screen | Set volume Home (Main Screen) Set brightness Set Wi-Fi This is used to return to the The Wi-Fi function main screen. can be turned on or off. Set fan speed...
  • Page 15 Set-up | Names of parts | Alert/Verification Window | Alert pop-up window Appears when the filter replacement time is notified, when the filter cover is opened, and when the filter cover is closed Verification pop-up window Appears when a problem occurs with the product, when asking for verification for Wi-Fi initialization, and when power is turned off during operation.

  • Page 16: Select Installation Location

    | Set-up Installation and set-up AP 100 Installation and set-up 1. Choosing a location A location that has low humidity and is well ventilated There may be a risk of electric shock or product malfunction due to rust. Place it in an indoor location away from direct sun.

  • Page 17: Filter Installation

    Set-up | Installation and set-up 2. Filter Installation All filters are assembled and packaged before being shipped out of the factory. The packaging of filters must be removed before use.  Failure to remove the packaging before operating the product may result in malfunction.
  • Page 18 | Set-up Installation and set-up AP 100 ① Fine Mesh Cleancel® Pre-Filter Antimicrobial PM2.5 Filter Active Carbon Filter. Push the filters in this order to the very back of the product. 3 Active Carbon Filter 2 Antimicrobial PM2.5 Filter 1 Fine Mesh Cleancel® Pre-Filter X Please make sure that the pre-filter is not flipped upside down before inserting.
  • Page 19  Th e re m ay b e a d i f fe re n ce i n t h e f i l te r re p l a ce m e nt c yc l e d e p e n d i n g o n u s a g e environment. Filter purchase inquiries: www.ideal-health.de ▶ Please refer to pages 68~69 for details on how to replace filters...

  • Page 20: Initial Action

    | Operation How to Use AP 100 How to Use 1. Initial action Insert the power plug into a power outlet. ① power plug into a power outlet (❷). x The Display Panel lights will turn on and then off.
  • Page 21 Operation | How to use "Auto", "PLASMAWAVE", "Regional Info", etc. ① will be displayed and the product will run. x The fan speed will be set automatically depending on the indoor air contamination level and PlasmaWave® will run to remove harmful substances in the air.

  • Page 22: Auto Mode

    | Operation How to Use AP 100 2. Auto Mode Runs automatically by detecting indoor air contamination level. Select "Auto". x The product will run with " PlasmaWave® " displayed. x The fan speed will be adjusted automatically depending on indoor air contamination level and PlasmaWave®...

  • Page 23: Plasmawave

    Operation | How to use 4. PlasmaWave® This air purification function removes harmful substances from the air. Select "Menu". ① Select "PlasmaWave®" and then select "ON". ② x PlasmaWave® will begin running. 5. Sleep Mode Select "Menu". ① Select "Sleep" and then select "ON". ②...

  • Page 24: Set Timer

    | Operation How to Use AP 100 6. Timer Setup Select this if you wish to run the product during a specified time. Select "Menu". ① Select "Power off reservation" and then select "-" or "+". ② x You can set up to "12 hours".

  • Page 25: Use | 7. Set Wi-Fi Connection

    Select "Setup", select "Wi-Fi", select "ON". ② x The "Wi-Fi" icon will flicker. To install the IDEAL air app, search for "IDEAL air" in the ③ App Store or in the Google Play Store. Run the downloaded exclusive APP and follow the app’s ④...
  • Page 26 Wi-Fi initialization. Select "Yes". ③ x Wi-Fi setup will be initialized. To install the IDEAL air app, search for "IDEAL air" in ④ the App Store or in the Google Play Store. Run the downloaded exclusive APP and follow the ⑤...

  • Page 27: Set Brightness

    Operation | How to use 8. Set Brightness Select "Menu" and then select "Setup". ① Select "Brightness" and then select "-" or "+". ② x Selecting "-" will gradually darken the screen, while selecting "+" will gradually brighten the screen. 9.

  • Page 28: How To Manage And Clean

    | Operation Operating the air cleaner AP 100 How to Manage and Clean 1. How to Replace Filter  Checking the filter When it appears, touch the ① pop-up window that alerts you it is time to replace the filter.
  • Page 29 Pre-Filter 2 Antimicrobial 12 months PM2.5 Filter 3 Active Carbon filter 12 months 4 True HEPA filter 12 months There may be a difference in the filter replacement cycle depending on usage environment. Filter purchase inquiries: www.ideal-health.de - 67 -...
  • Page 30 X Please make sure that the pre-filter is not flipped upside down before inserting. Push the two buttons on the filter ④ cover towards the middle to attach it to the product. X Only genuine IDEAL filters must be used. - 68 -...
  • Page 31 Operation | Operating the air cleaner 4 True HEPA filter replacement  Press the release buttons on either ① side of the top cover and lift the cover off. Hold the grips on either side and ② pull the filter out. Insert the new 4 True HEPA filter.

  • Page 32: How To Clean Pre-Filter

    | Operation Operating the air cleaner AP 100 2. How to Clean Pre-Filter The filter cleaning time may differ depending on the surrounding contamination levels. Clean using a vacuum cleaner or a soft brush, and use a neutral detergent to clean if it is heavily contaminated.

  • Page 33: How To Clean Fine Dust Sensor

    Operation | Operating the air cleaner 3. How to Clean Fine Dust Sensor The dust sensor detects the contamination level of dust, so it is recommended to clean the sensor once every two months for the air purifier to function optimally. Please clean the sensor more often if the product is used in a location where there is a greater amount of dust.

  • Page 34: Cleaning Exterior / Cleaning Interior

    | Operation Operating the air cleaner AP 100 4. Cleaning the exterior / Cleaning the interior  Exterior Wipe the product with a soft cloth made wet with water mixed in with a neutral detergent, and then wipe it with a dry cloth.

  • Page 35: Malfunction And Checking Measures

    Other | Troubleshooting Troubleshooting Problem Check Measures It does not turn on at all ▶ Is the power cord securely attached to the socket on the back of the unit? Check both ends of the power cord to make sure it is plugged in and the power connections are secure.
  • Page 36 | Other Troubleshooting AP 100 Problem Check Measures The power plug and power outlet are hot. ▶ Is the power plug plugged in correctly? Plug in the power plug correctly. There is a strange smell. ▶ Are you using it in a place with large amount of...
  • Page 37 Other | Troubleshooting Problem Check Measures The display is dark. ▶ Is there any debris on the illumination level sensor window? Remove the debris from the illumination level sensor. ▶ Is it in sleep mode? If the indoor lighting becomes dark, the product will be automatically set to sleep mode and the display area will darken.

  • Page 38: Product Specifications

    | Other Product Specifications AP 100 Product Specifications Model Name AP 100 Power Voltage AC 120V, 60 Hz Power Rate 200 W Siutable for room 697,5 sq. ft. sizes up to Weight 68,3 lb Dimensions 21,1 inch (W) x 21,0 inch (D) x 44,8 inch (H) Subject to technical modifications.

  • Page 39: Warranty

    IDEAL will repair or replace the device at its expense. • IDEAL will only repair or replace the device, if convincing proof is provided, for example by a receipt and if the claim is made within the guarantee period.
  • Page 40 IDEAL Health For fresh air. For more health, vitality and quality of life. Perceptible. With every breathe you take. • MBM Corporation • North Charleston • South Carolina • www.mbmcorp.com •...
