SImx LHT0268 Installation Instructions

PRODUCT COMPLIANCES
Product complies with:
AS/NZS60598.1:2003 AS/NZS60598.2.5
EN55015:2006 EN61000.3.2:2000 EN61000.3.3:1995 EN61547:1995
EN62031 EN 62471:2008 EN62471 EN60529 and relevant amendments.
MANUFACTURERS EXTENDED WARRANTY
This product is guaranteed by SIMX Ltd for 36 MONTHS from the date of purchase against faulty materials
or workmanship which affects its designed ability to detect or switch. During this period if the product has a
defect of this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar one
of higher specification. ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user i.e. a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation instructions, or
installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user replaceable parts. It does not confer
any rights other than those expressly set out above and does not cover any claims for consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under the Australian and New Zealand Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Distributed by: Simx Limited
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
Email: sales@simx.co.nz | www.simx.co.nz
Simx reserves the right to alter technical specifications without prior warning
PUB1322 iss01
INSTALLATION INSTRUCTIONS

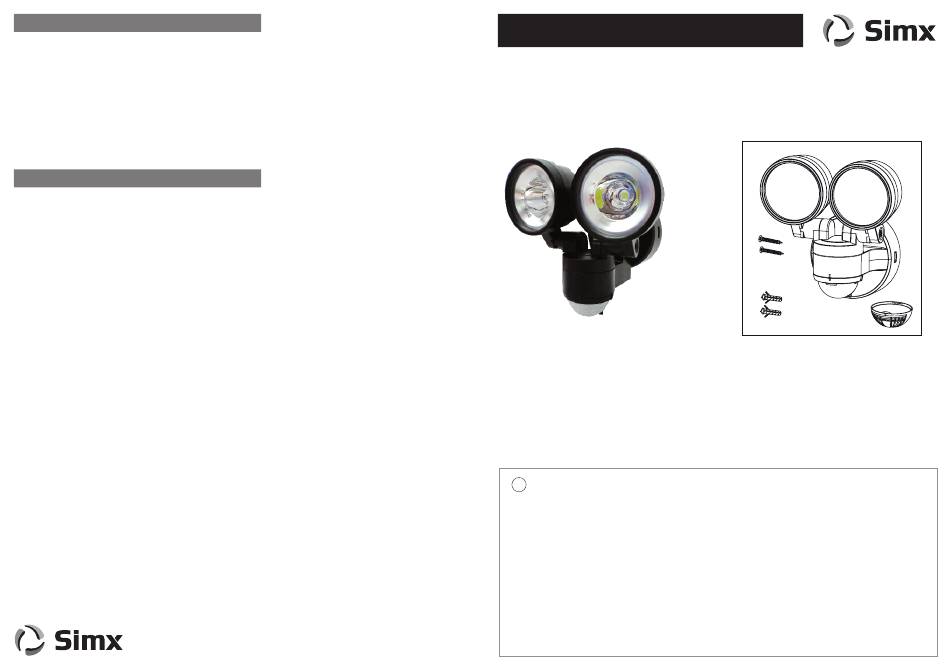

Model: 2 x 4 Watt Sensor LED II
Thank you for purchasing this SIMX sensor light. This light is suitable for both ceiling or wall
installation and sheltered outdoors. It requires a 220 ˜ 240V AC power supply. Please read
this manual thoroughly before installation and retain for future reference.
LHT0267 Black
LHT0268 White

TECHNICAL SPECIFICATIONS

8 ± 2 m
Detection range:
140° at 3 metres; 90° at 8 metres
Detection Angle:
min 30 sec ± 10 sec
Time setting:
max 6 min ± 2 min
Day to night (adjustable)
Dusk control:
PIR Aiming adjustment: Pan only, left 90° & right 90°
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed on the circuit
for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the
manufacturer, will void any and all stated warranties.
2x
4x 32 mm
2x
1x
6x 30 mm
9W max
Rated load:
220 lumens per lamp
Luminous flux:
30° to 1/2 peak intensity
Light beam angle:
-20° C ~ +40° C
Working temperature:
IP44
Ingress Protection:
Polycarbonate UV stabilised
Construction:
