SImx LHT0244 Installation Instructions

MANUAL CONTROL (Override Function)
When power is first switched on, the PIR detector enters into the "WARM-UP" period for about 1 minute,
then automatically switches into AUTO MODE.
Turning the wall switch off and on twice, within 3 seconds, will change from Auto Mode to Manual Mode. In
MANUAL MODE, the Lamp(s) will remain ON, not affected by duration time and Lux control settings, after
8 hours, the lamp will change to AUTO MODE again.
To change it back to AUTO MODE, prior to this, turn the wall switch off and on twice in about 3 seconds
(the same override used to go from AUTO to MANUAL mode.).
During MANUAL MODE or AUTO MODE, by switching off the ON/OFF main switch over 10 seconds and
then on again, the PIR detector will reset to WARM-UP periods.
PRODUCT COMPLIANCES
Product complies with:
AS/NZS60598.1:2003 AS/NZS60598.2.1
AS/NZS61347 Pt 1, 2.11, 2.13 and relevant amendments
MANUFACTURERS EXTENDED WARRANTY
This product is guaranteed by SIMX Ltd for 3 years from the date of purchase against faulty materials or
workmanship which affects its designed ability to detect or switch. During this period if the product has a
defect of this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar
one of higher specification. ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user. ie a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation
instructions, used on a supply voltage other than that indicated in the product specifications, or installed
in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user serviceable parts. It
does not confer any rights other than those expressly set out above and does not cover any claims for
consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under the New Zealand Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail
to be of acceptable quality and the failure does not amount to a major failure.
Distributed by: Simx Limited
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
Email: sales@simx.co.nz | www.simx.co.nz
AS/NZS C1SPR15:2011
Pub1256 iss02 04/14
Simx reserves the right to alter technical specifications without prior warning.
INSTALLATION INSTRUCTIONS

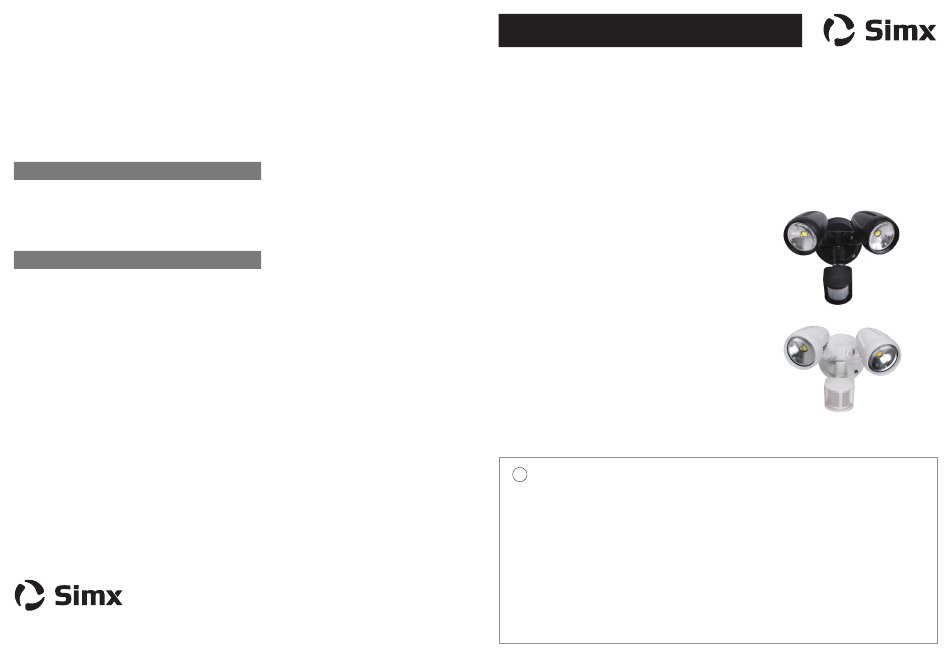

LHT0244 BLACK / LHT0250 WHITE
Twin 8W LED Sensor Light
The Simx LED Eco Spot Sensor Light incorporates a PIR (Passive Infra Red) motion sensing
device which continuously scans a preset operating zone and immediately switches the light on
when it detects movement in that area. This product is suitable for exterior sheltered locations. It
requires a 230V AC power supply to operate and should be installed by a registered electrician.
TECHNICAL SPECIFICATIONS
Power Source 220-240 V AC
Power Frequency 50Hz
Detection Range 12 metres max at 180°
Time Setting Min: 10sec ± 5sec
Max: 4min ± 1min
Dusk Control Day to Night (adjustable)
PIR Aiming adjustment Pan/Tilt
Sensitivity Control Yes
PIR Switching Capacity 300W
Standby Power 1W (sensor head only)
16 Watt
Rated Load
CREE LED lamps
Lamp Type
Lumens
1440 lumens (total)
Ingress Protection IP44
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit
for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the
manufacturer, will void any and all stated warranties.
Class 1
