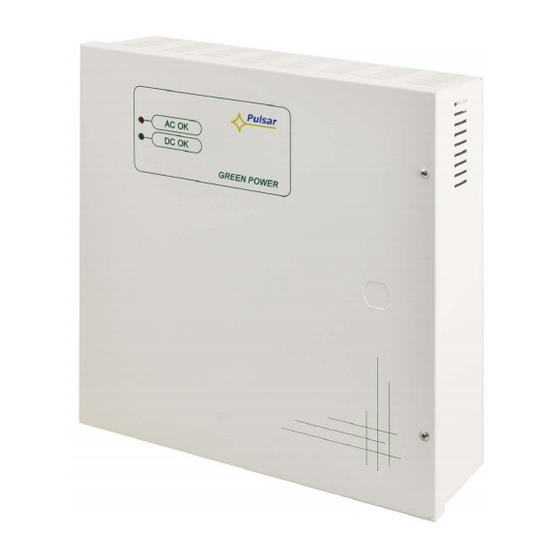

Buffer, switch mode power supply unit with automatic operation control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HPSBOC 3512C
v.1.0
HPSBOC 13,8V/3A/17Ah/OC
Buffer, switch mode power supply unit
with automatic operation control.
EN
Edition: 1 from 22.01.2013
Supercedes the ------------- edition:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPSBOC 3512C and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar HPSBOC 3512C

Summary of Contents for Pulsar HPSBOC 3512C

  • Page 1 HPSBOC 3512C v.1.0 HPSBOC 13,8V/3A/17Ah/OC Buffer, switch mode power supply unit with automatic operation control. Edition: 1 from 22.01.2013 Supercedes the ------------- edition:...

  • Page 2: Table Of Contents

    HPSBOC2512B Features: • • DC 13,8V/3A uninterruptible power supply FAC technical output indicating AC power loss • • fitting battery: 17Ah/12V FPS technical output indicating PSU failure • • wide range of mains supply: 176÷264V FLB technical output indicating battery low •...

  • Page 3: Block Diagram

    HPSBOC2512B BATTERY 7Ah: 1.Buffer power supply unit HPSBOC 13,8V/12V/6x0,5A/7Ah. - HPSBOC3512C + RN500 (13,8V/12V) + LB8 6x0,5A (AWZ580 lub AWZ578) + 7Ah 2. Buffer power supply unit HPSBOC 13,8V/2x5V÷7,4V/2x2A/7Ah. - HPSBOC3512C + 2xDCDC20 (2x5V÷7,4V/2x2A) + 7Ah 3. Buffer power supply unit HPSBOC 13,8V/5V÷7,4V/4x0,5A/7Ah.

  • Page 4: Specifications

    HPSBOC2512B Description of PSU components and connectors (tab.2, fig.3). Part no. [Fig. 3] Description PSU module TAMPER, contact, sabotage protection (NC) Tab.2. The components of the PSU. Fig.3. The view of the PSU 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4)
  • Page 5 HPSBOC2512B - TAMPER – indicating unwanted opening of the 0,5A@50V DC (max.) PSU’s enclosure LED indication: - AC diode indicating AC power status - red, normal status – on, failure: off - AUX diode indicating DC power status at - green, normal status –...

  • Page 6: Requirements

    HPSBOC2512B 2. Installation. 2.1 Requirements. The buffer PSU shall be mounted by a qualified installer with appropriate permissions and qualifications for 230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.

  • Page 7: Technical Outputs

    HPSBOC2512B Moreover, the PSU is equipped with 3LEDs on the PCB board: - red LED (Fig.2, element 1) normal status (AC power): permanently illuminated. AC power absence is indicated by the AC diode going out. Caution! LED indicates power absence if the outage lasts >10s.

  • Page 8: Maintenance

    GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a three-year warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
