Summary of Contents for Pulsar HPSB 3524B

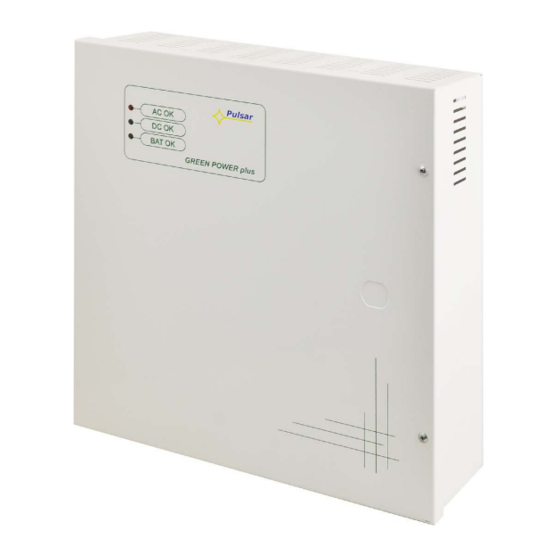

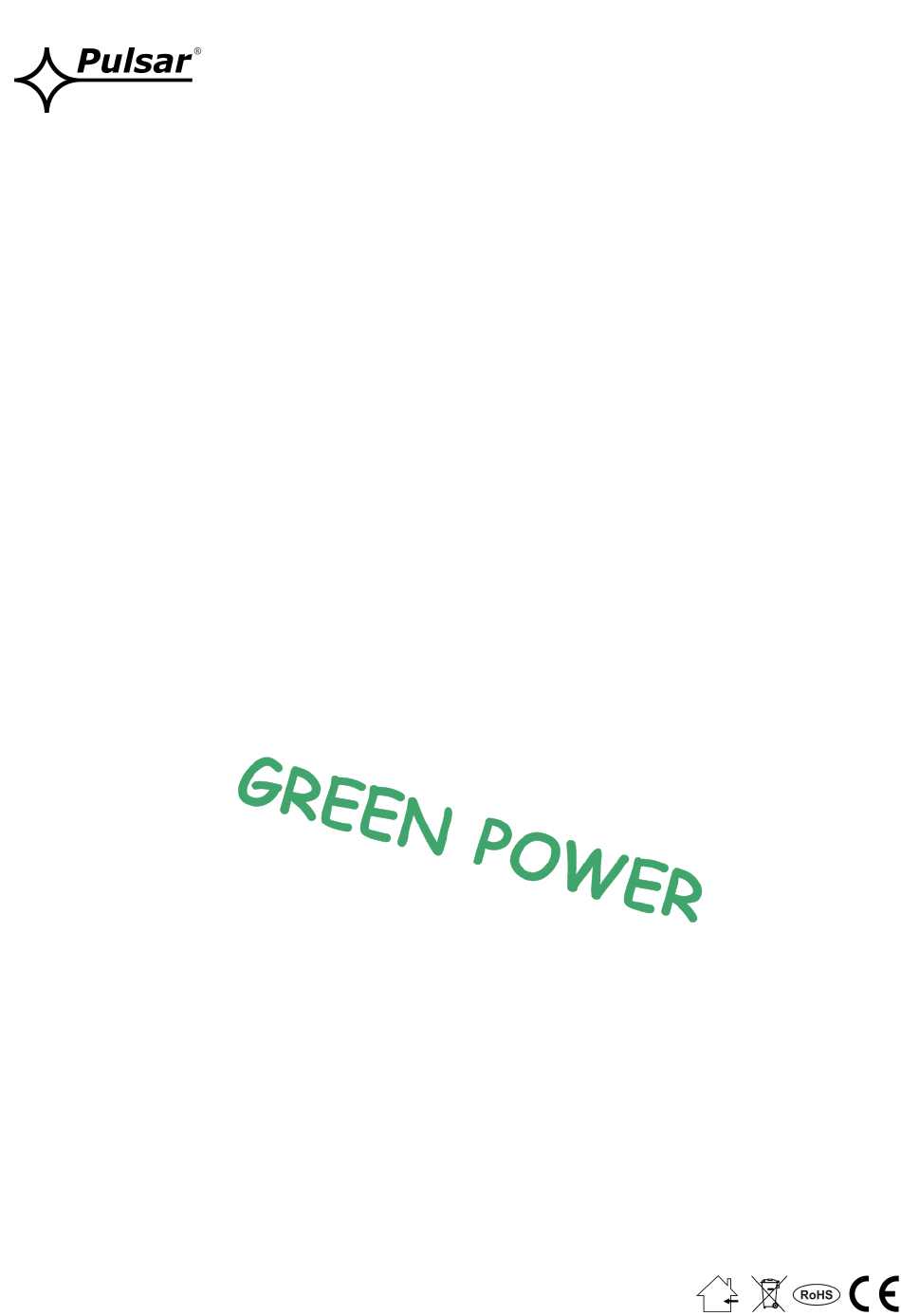

- Page 1 HPSB 3524B v.1.0 HPSB 27,6V/3A/2x7Ah Buffer, switch mode power supply unit. Edition: 5 from 05.06.2014 Supercedes the edition: 4 from 10.02.2014...
- Page 2 PSU, with high energy efficiency. The PSU is housed in a metal enclosure (colour RAL 9003) which can accommodate two 7Ah/12V batteries. A micro switch indicates door opening (front cover). OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualisation available at: www.pulsar.pl) 1. Buffer power supply unit HPSB 27,6V/2x1,5A/2x7Ah. - HPSB3524B + LB2 2x1,5A (AWZ586) + 2x7Ah 2.
- Page 3 GREEN POWER www.pulsar.pl HPSB3524B 1.2 Block diagram Fig.1 Fig.1. The block diagram of the PSU 1.3 Description of PSU components and connectors ( tab.1, tab.2, fig.2). Element no. Description [Fig. 2] PSU module connectors (see: tab.2) green LED indicates AC power...
- Page 4 GREEN POWER www.pulsar.pl HPSB3524B Fig.2. The view of the PSU.
- Page 5 GREEN POWER www.pulsar.pl HPSB3524B 1.4 Specifications - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) PSU type A (EPS - External Power Source) Mains supply 176÷264V AC Current up to 0.9A@230VAC...
- Page 6 GREEN POWER www.pulsar.pl HPSB3524B Operating parameters (tab.6) Operating temperature -10ºC...+40ºC (see: chart 1) Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insulation unacceptable Vibrations and impulse waves during transport According to PN-83/T-42106 Chart 1.
- Page 7 GREEN POWER www.pulsar.pl HPSB3524B The shock protection circuit shall be performed with a particular care, i.e. the yellow and green wire coat of the power cable shall stick to one side of the terminal - marked with ‘ ‘ symbol on the PSU enclosure. Operation of the PSU without the properly made and fully operational shock protection circuit is UNACCEPTABLE! It can cause a device failure or an electric shock.
- Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a two-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
