- Page 1 HPSB 3512B v.1.0 HPSB 13,8V/3A/7Ah Buffer, switch mode power supply unit. EN** Edition: 1 from 19.02.2016 Supercedes the edition: ----------...
-
Page 2: Table Of Contents
During normal operation, the total current drawn by the equipment may not exceed I = 3A Maximum battery charging current: 0,5A Total device current + battery: 3,5A max* The power supply housing has space for additional modules (fuse blocks, voltage regulators and DC-DC converters). Optional power supply configurations are available at the website: www.pulsar.pl... -
Page 3: Block Diagram
GREEN POWER www.pulsar.pl HPSB3512B 1.2 Block diagram (fig.1). Fig.1. The block diagram of the PSU. 1.3 Description of PSU components and connectors (tab.1, tab. 2, fig. 2). Part no. Description [Fig. 2] PSU module connectors (see: tab.2) green LED indicates AC power... -
Page 4: Specifications

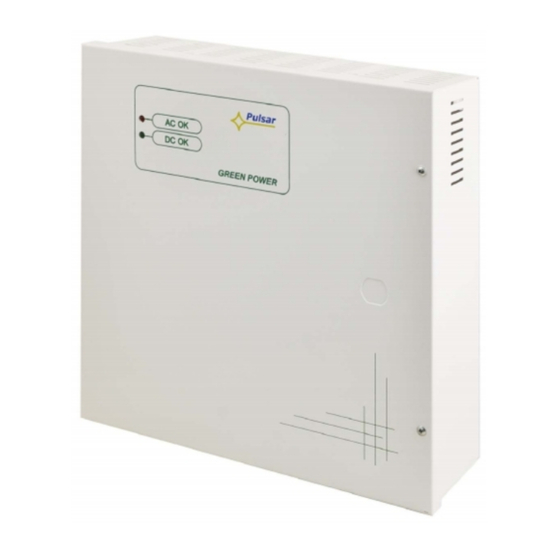

GREEN POWER www.pulsar.pl HPSB3512B Fig.2. The view of the PSU. 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) PSU type A (EPS - External Power Source) 176÷264V AC... -
Page 5: Installation
GREEN POWER www.pulsar.pl HPSB3512B Mechanical parameters (tab. 4) Enclosure dimensions 250 x 250 x 80+8 [mm] (WxHxD) Fixation See figure 2 Fitting battery 7Ah/12V (SLA) max. 160x90x75mm (WxHxD) max Net/gross weight 1,8 kg / 2kg Enclosure Steel plate DC01, thickness: 0,7mm, colour: RAL 9003... -
Page 6: Installation Procedure
GREEN POWER www.pulsar.pl HPSB3512B Before installation, prepare a PSU load balance. During normal operation, the total current drawn by the device may not exceed I=3A*. Maximum battery charge current: 0,5A*. Total device current + battery: 3,5A max As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an appropriate overload protection shall be guaranteed in the power supply circuit. -
Page 7: Operation And Use
GREEN POWER www.pulsar.pl HPSB3512B 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on) In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over. - Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar (the manufacturer) grants two-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
