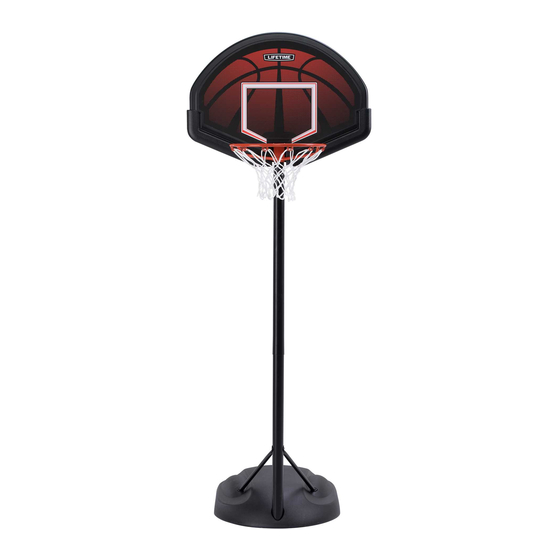

- Page 1 MODEL N° 90269 OWNER’S MANUAL Keep this Identification Number in case you must contact our Customer Service Department.
-
Page 2: Safety Instructions
REGISTER YOUR PRODUCT ONLINE AT WWW.LIFETIME.COM At Lifetime, we are committed to providing innovative and quality products. While registering, you will have the opportunity to give us your feedback. Your input is valuable to us. directly. LIFETIME’S PROMISE TO YOU: Maintaining your privacy is our long-standing policy at Lifetime. -
Page 3: Before Beginning Assembly
BEFORE BEGINNING ASSEMBLY *Two adults required to complete assembly* TOOLS AND PARTS REQUIRED FOR THIS ASSEMBLY... - Page 4 ASSEMBLY GUIDES Refer to the following areas throughout the instructions to assist in the assembly process: TOOLS AND HARDWARE REQUIRED FOR THIS PAGE This area is located at the top, left-hand corner of the page and indicates which tools and hardware are needed to complete the assembly steps on a page.
-
Page 5: Parts List
PARTS LIST Description HARDWARE LIST Description Hardware Blister Pack... -
Page 6: Parts Identifier
No cuelgue nada del aro, ni el tablero, ya que esto puede dañar el sistema y anular la garantía. www.lifetime.com # 1041050s 08/6/2008... - Page 7 PARTS IDENTIFIER HARDWARE BLISTER PACK All hardware shown at actual size...
- Page 8 POLE ASSEMBLY HARDWARE REQUIRED Hardware shown at Actual Size PARTS REQUIRED Parts shown at 10% of Actual Size ” 1/16 TOOLS REQUIRED...
- Page 9 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Top Pole (ALH) Middle Pole (ALF) Remove Plastic Note: If needed, reinsert the Top Pole into the Middle Pole by sliding the Top Pole up through the bottom of the Middle Pole. Note: Insert the Screw. until the Screw Head is flush with Note: The Knob (ACN) will face the back of the system.
- Page 10 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE *THIS STEP CANNOT BE REVERSED* Middle Pole Bottom Pole NOT COMPLETE ASSEMBLY Hole Slot 5-6 times Scrap Wood or Cardboard Note: Do not hit your feet with the Pole sections, as serious injury could occur. WARNING The Poles must be seated together! Even if the Poles cover the slots before seating, they must be struck on a hard...
- Page 11 BASE ASSEMBLY HARDWARE REQUIRED Hardware shown at Actual Size PARTS REQUIRED Parts shown at 10% of Actual Size Parts shown at 25% of Actual Size Left Brace TOOLS REQUIRED NO TOOLS REQUIRED FOR THIS SECTION...
- Page 12 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO TOOLS REQUIRED FOR THIS PAGE Press down over the Wheels to snap the Axles in place. Note: Check to be sure that both Axles snapped securely in place.
- Page 13 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO TOOLS OR HARDWARE REQUIRED FOR THIS PAGE Bottom View Front Edge...
- Page 14 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO TOOLS REQUIRED FOR THIS PAGE Left Brace Assembly (ALK). Push Pole Brace forward to snap the Axle in place.
- Page 15 POLE TO BASE ASSEMBLY HARDWARE REQUIRED Hardware shown at Actual Size PARTS REQUIRED NO PARTS REQUIRED FOR THIS SECTION TOOLS REQUIRED 7/16” Wrench 9/16” Wrench Pliers...
- Page 16 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 7/16” Knob Note: The Bolt will not go through the entire width of the Pole. Use Pliers to hold the T-Nut in place.
- Page 17 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 9/16” Note: Completely tighten the hardware. WARNING...
- Page 18 FILLING THE BASE HARDWARE REQUIRED Hardware shown at Actual Size PARTS REQUIRED NO PARTS REQUIRED FOR THIS SECTION TOOLS REQUIRED Sand Water Hose Funnel...
- Page 19 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE FILLING THE BASE WITH SAND Base (AJM) Base Plug (AZY) Figure 2 Figure 1 WARNING For safety reasons, we recommend that sand be used instead of water to fi ll the Base. If a leak develops, water could run out unnoticed, allowing the system to fall over, resulting in serious personal injuries, or property damage.
- Page 20 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE FILLING THE BASE WITH WATER Base (AJM) Base Plug (AZY) WARNING For safety reasons, we recommend that sand be used instead of water to fi ll the Base. If a leak develops, water could run out unnoticed, allowing the system to fall over, Figure 1 Figure 2...
- Page 21 BACKBOARD AND RIM ASSEMBLY HARDWARE REQUIRED Hardware shown at Actual Size PARTS REQUIRED Parts shown at 10% of Actual Size TOOLS REQUIRED...
- Page 22 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/8” Note: Do not overtighten the Screws.
- Page 23 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 1/2” WARNING Adjustment Knob...
- Page 24 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO TOOLS OR HARDWARE REQUIRED FOR THIS PAGE Net (AKZ) Rim (ALX). Note: If a replacement Net is needed, please call our Customer Service Department. Our Nets are shorter than average to reduce the risk of entanglement.
-
Page 25: Moving The System
OPERATION OF HEIGHT ADJUSTMENT SYSTEM MOVING THE SYSTEM WARNING: CAUTION: POLE CARE AND SYSTEM MAINTENANCE IF RUST HAS PENETRATED THROUGH THE POLE ANYWHERE, REPLACE IT IMMEDIATELY! - Page 26 ® ENHANCE YOUR LIFETIME PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS: To purchase accessories or other Lifetime Products, visit us at: www.lifetime.com Or call: 1-800-424-3865...
- Page 27 WARNING Surface beneath the base must be smooth and free of gravel FAILURE TO FOLLOW THESE WARNINGS MAY RESULT or other objects. Punctures cause leakage and could cause IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. system to tip over. Owners must ensure that all players know and follow Once a month check pole and all metal parts for signs of these rules for safe operation of the system.
-
Page 28: Warranty Information
THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE. ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY A SALES RECEIPT. REPORT PRODUCT DEFECTS IN WRITING TO: To register the product, visit our Web site at www.lifetime.com www.lifetime.com...
