Summary of Contents for Botex SDC-16

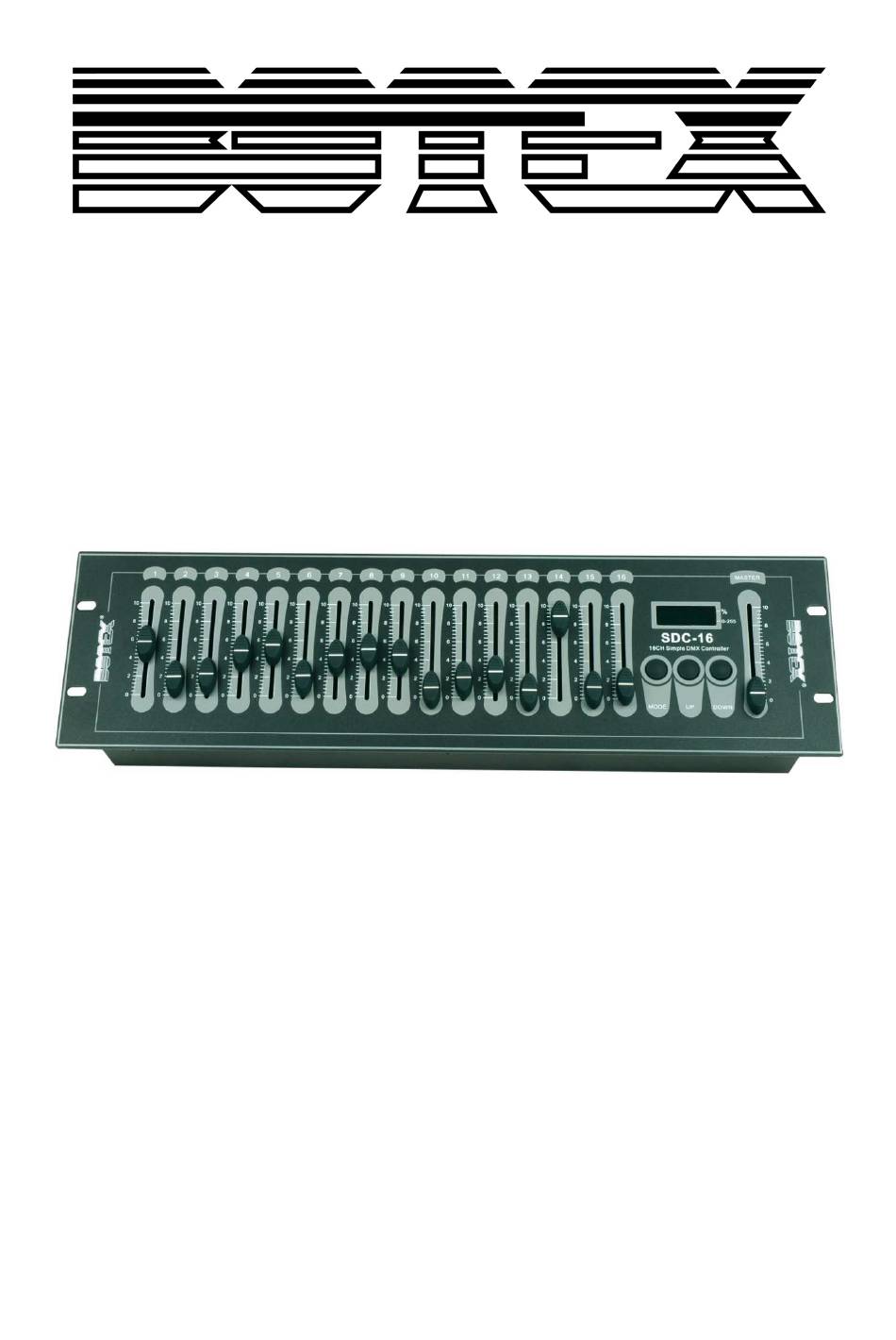

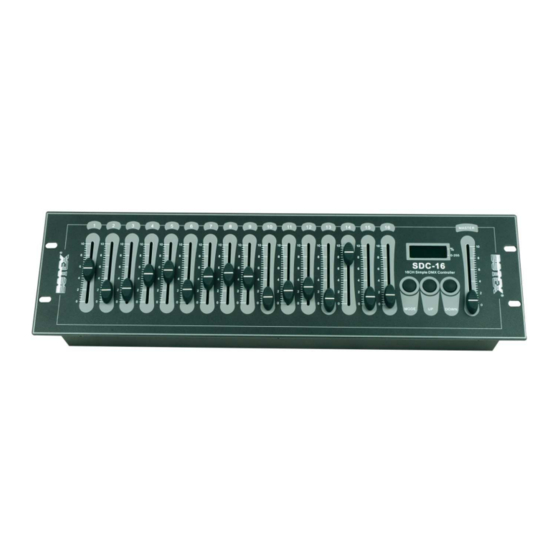

- Page 1 Manual Controller DMX SDC-16...
- Page 2 Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Control .............................. 5 Technical data ..........................6 2 / 8...
-
Page 3: Safety Instructions
1. Safety instructions • Read the safety instructions and also this manual carefully. • Keep the manual. • Observe all red flags. • Observe the manual. • To prevent fire or electric shocks, protect the device against rain and humidity •... - Page 4 Accessory Please use only the accessory which is set by the manufacturer. Important Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel.
- Page 5 3. Control 1. When switching on the power supply, the display will show the start DMX channel address. It can be “A001”. If there are no character and number display, check the power whether it’s correctly connected. 2. The default start address for controlling the DMX channels is channel 1. To adjust the initial start address, you can press the “Up”...
-
Page 6: Technical Data
4. Technical data Power supply DC 9V; 300 mA min. DMX Output 3 pin female XLR Measurements 482x132x80 Weight 2,3kg 6 / 8... - Page 7 7 / 8...
- Page 8 Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 8 / 8...
