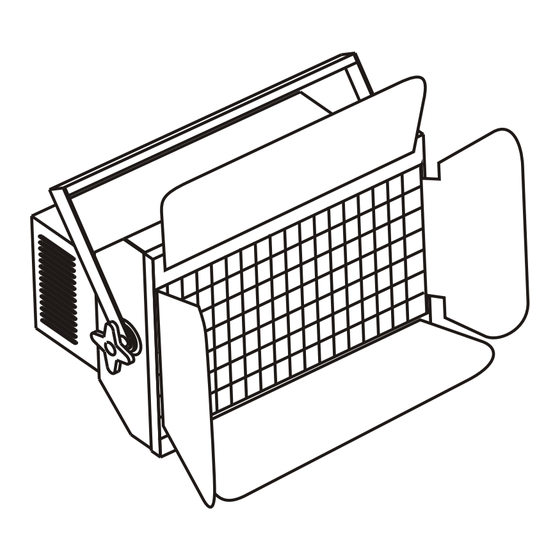

- Page 1 English RP-2000A USER'S MANUAL Please read before use...
-
Page 2: Table Of Contents
Content Content Content Feature General Instruction Controls and Functions Operation Chase Mode Receive Mode Separate and Pararallel Link-up Technical Specification... -
Page 3: Feature
Features Thank you for your purchase. This product features include: 4 channel chaser with 16 built-in programs 4 channel DMX dimmer pack with 4 individual DMX addresses MIDI and DMX input are selectable Serves as one channel or four channel dimmer pack Red, Blue, Green and Yellow color effects Linkup connection Power failure memory... -
Page 4: General Instruction
General Instruction Read the instruction in this manual carefully and throughly, as they give important information regarding safety during use and maintenance. Please keep this manual with the unit, in order to consult it in the future. Warnings This product must be earthed. DO NOT make any inflammable liquids, water or metal objects enter the unit. -
Page 5: Controls And Functions
Controls and Functions... - Page 6 Controls and Functions 1. Channel LED's: Indicate the activities of corresponding channels. 2. Segment Display: Reads current function state or activity. 3. Mode button: Selects operating mode from Receive/ Chase modes. 4. Menu button: Press to select desired menu setup. Each pressing changes the menu setup once.
-
Page 7: Operation
Operation Chase Mode 1 CH. 2 CH. 3 CH. 4 CH. Press Mode Button to select Receive DMX Signal Chase Mode. Parallel MIDI Signal Chase MODE MENU Button or Button to your wanted chase from 16 1 CH. 2 CH. 3 CH. -
Page 8: Receive Mode
Operation Receive Mode Press Mode Button to select 1 CH. 2 CH. 3 CH. 4 CH. Receive Mode. Receive DMX Signal Parallel MIDI Signal Chase MODE MENU Button to set MIDI in channels 1 CH. 2 CH. 3 CH. 4 CH. Receive DMX Signal Parallel... -
Page 9: Separate And Pararallel
Operation Receive Mode Press Menu Button to select Master 1 CH. 2 CH. 3 CH. 4 CH. dimmer setting. Use button Receive DMX Signal to adjust the light intensity of all Parallel MIDI Signal Chase four channels. MODE MENU Separate and Parallel In Receive Mode, press Mode 1 CH. -
Page 10: Link-Up
Operation Link-up This product can work with more than one unit through link-up easily and conveniently. All other link-up units are controlled by the first one and change of work state set will change all. There is time-delay with the max. 0.4S change when the function set change is transmitted to the next unit. -
Page 11: Technical Specification
Technical Specification Power Input ..........AC 230V~50Hz, 2000W max. Lamp Type ............Halogen 230V 500W Circuit Breaker ................16A DMX In/Outt ........3 pin female & male XLR socket MIDI In/Thru ............5 pin multiple socket Dimensions ............... 514x224x161mm Weight(appro.) ................. 7.5 Kgs... - Page 12 All Rights Reserved. 24-004-1019 Rev 1.0 April 2003...
