User manual
Botex X-Fade-6 II

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-Fade-6 II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Botex X-Fade-6 II

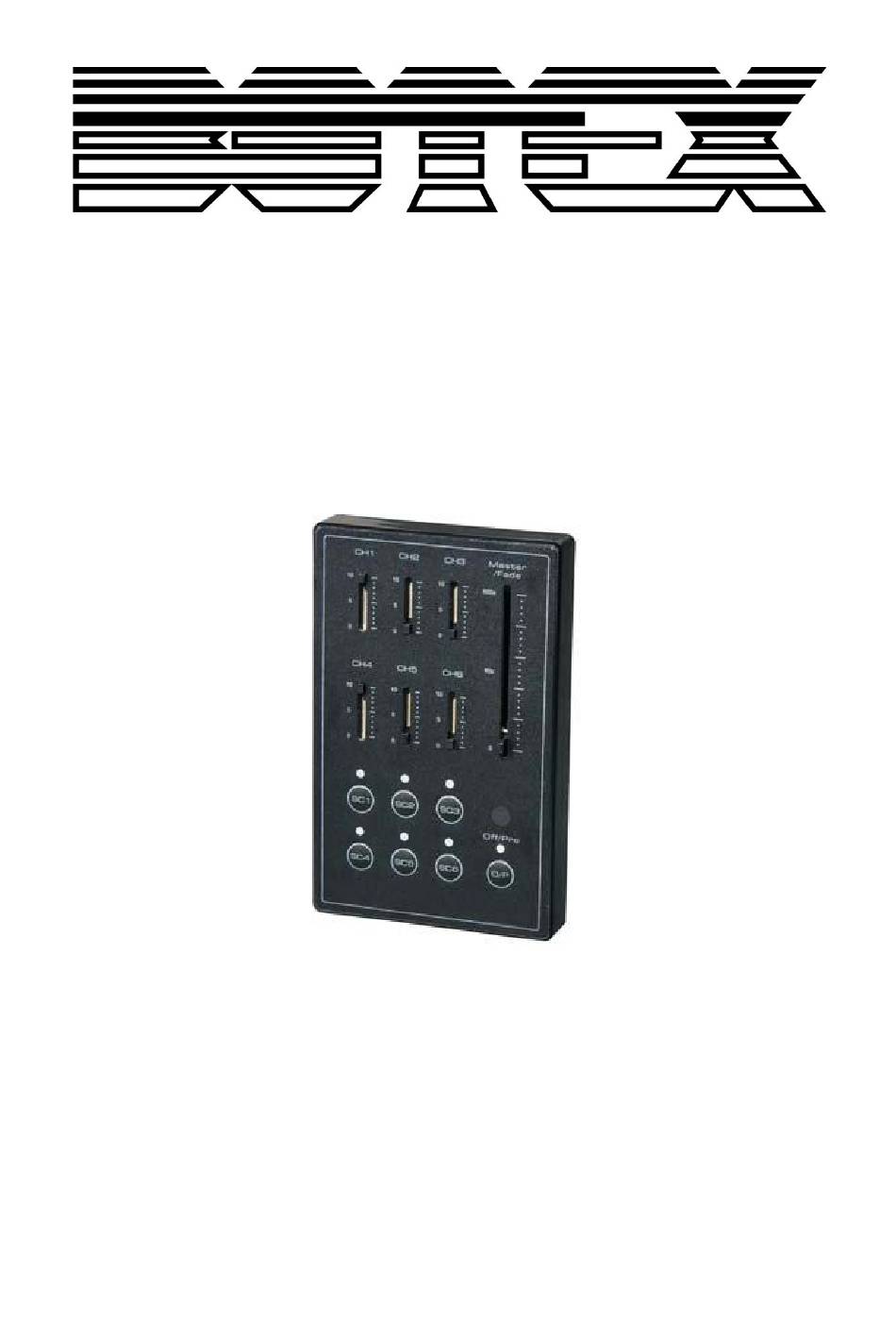

  • Page 1 User manual Botex X-Fade-6 II...
  • Page 2: Table Of Contents

    Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Introduction ............................4 Key features ............................. 4 Technical data ..........................4 Control Panel View ........................... 5 Operating ............................6 6.1. Online Operation ........................6 6.2. Stand Alone Operation ......................
  • Page 3: Safety Instructions

    1. Safety instructions This device is suitable for indoor use only. All modifications to the device will void the warranty. Repairs are to carry out by skilled personnel only. Use only fuses of the same type and original parts as spare parts. Protect the unit from rain and humidity to avoid fire and electric shocks.
  • Page 4: Introduction

    European safety standards. 2. Introduction Thank you for purchasing our digital product X-Fade-6 II. You now have a premiere, hybrid 6 channel DMX controller combining with 6 channel faders. Its compact and portable design is convenient to mount and easy to operate.
  • Page 5: Control Panel View

    5. Control Panel View Channel faders (1~6): Used to control the output level of each corresponding fixture channel. Master Control fader: Used to control the overall output level for all channels 1~6 or control the master level for all scenes. Scene buttons (1~6): To select the corresponding programmed scene for playback.
  • Page 6: Operating

    6.1. Online Operation When dip switch 10 is flipped to the “ON” position, the Online mode is enabled. Every X-Fade-6 II outputs the DMX data within 6 channels and the DMX address can be set by flipping the dip switches 1-9 inside the unit.
  • Page 7: Stand Alone Operation

    The operation of the dip switches will only take effect when you repower the X-Fade-6 II. 6.2. Stand Alone Operation When dip switch 10 is flipped to “OFF” position, the Stand Alone mode is enabled. Every X-Fade-6 II outputs the DMX data of 512 channels.
  • Page 8: Assigning Scenes Fade Time

    Once you’ve stored all of your scenes, press and hold the “O/P” button to exit. A blue LED next to the “O/P” button illuminates to indicate that you are out of the Recording Scenes mode. NOTE: If 2 continuous steps have the same data, they will merge into one step automatically. The fade time now is twice as long as before.
  • Page 9: Setting The Total Number Of Controllable Channels

    Adjust the “Master Control fade” to the maximum when selecting the channel number. Keep and hold the “O/P” button and power on the X-Fade-6 II, all LED indicators will turn on. Release the “O/P” button and all LED indicators will flash repeatedly 3 times.
  • Page 10: System Connection Diagram

    7. System Connection Diagram 10 / 11...
  • Page 11 Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 11 / 11...
