Lacros SCAMPER S600 Manual

Electric folding bike
Hide thumbs Also See for SCAMPER S600:
Table of Contents

Advertisement

Quick Links

Download this manual

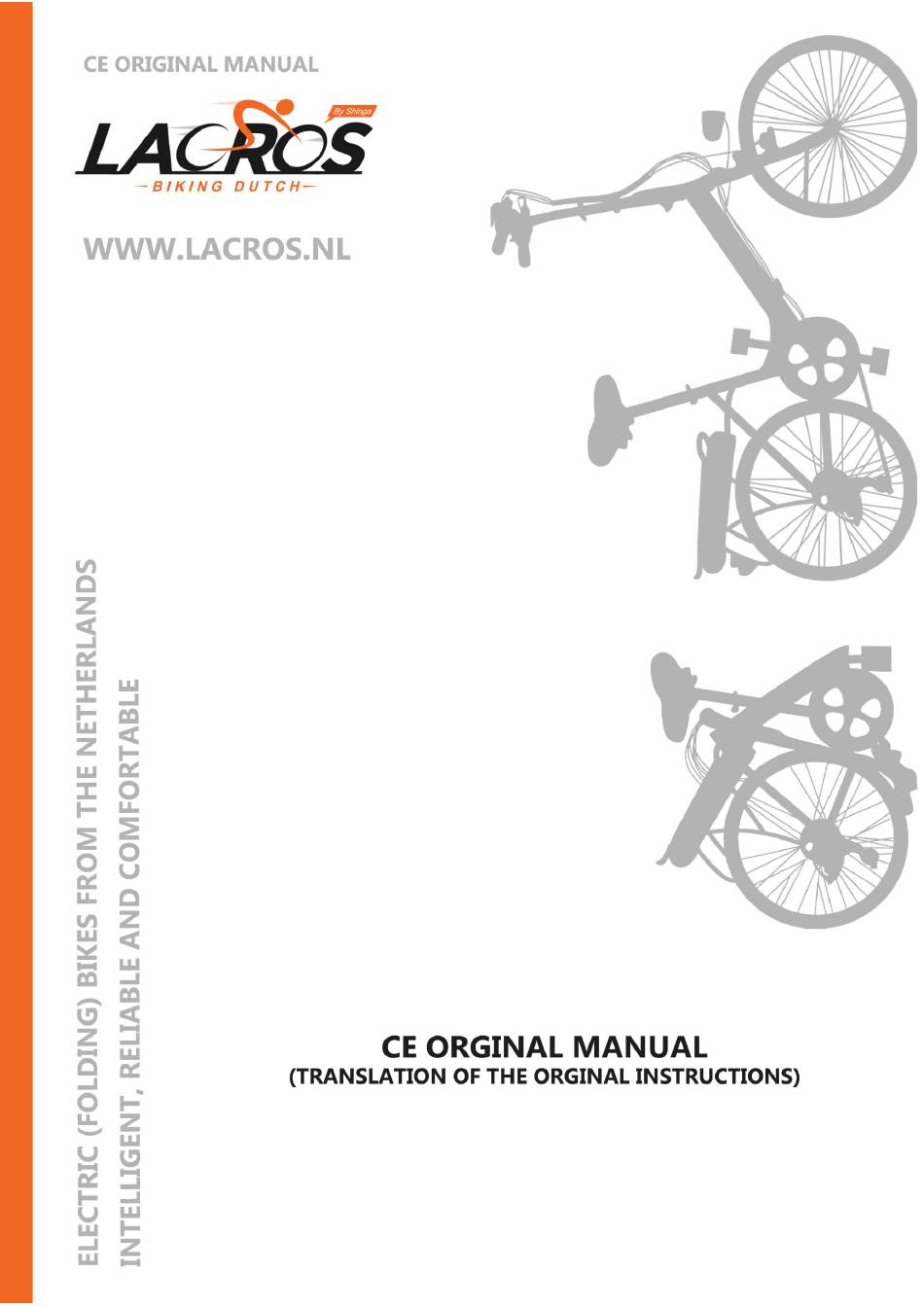

CE ORIGINAL MANUAL
LACROS SCAMPER S600
VERSION CE 1.2 EN
LACROS SCAMPER S600
ELECTRIC FOLDING BIKE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCAMPER S600 and is the answer not in the manual?

Questions and answers

Related Manuals for Lacros SCAMPER S600

Summary of Contents for Lacros SCAMPER S600

  • Page 1 CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN LACROS SCAMPER S600 ELECTRIC FOLDING BIKE...

  • Page 2: For Your Safety

    1. The LACROS Electric bike is equipped with an electromotor. It is very important that you are familiar with the bike as soon as possible. We advise you to choose the first "practice rides" for easy roads with little traffic and a smooth road surface.

  • Page 3: Review Documentation Emc-Directive: 2014/30/Eu Machine Directive: 2006/42/Eg

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and halfway at the frame. The bike is equipped with a pedal support system which is powered by an external battery.

  • Page 4: Table Of Contents

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN Table of contents For your safety ................................ 2 Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG ..........3 1. Unfolding the bicycle .............................. 5 2. Folding the bicycle ..............................6 3. How to operate the bicycle ............................. 7 Turn on the display ..............................

  • Page 5: Unfolding The Bicycle

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN 1. Unfolding the bicycle Magnetic lock Push the wheels apart to remove them from their magnetic lock. A = metal locking plate B = magnet C = direction in which you can lock...

  • Page 6: Folding The Bicycle

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN 2. Folding the bicycle Folding the pedals Fold down the bicycle's stand and fold the pedals in by pushing the entire pedal towards the bike and then folding it up or down.

  • Page 7: How To Operate The Bicycle

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN 3. How to operate the bicycle Switch on the battery and read the battery status The battery (model 2019) is located on the luggage rack with the Scamper. Switch on the electrical system with the button on the left side of the battery (A).

  • Page 8: Walk Assist

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN Walk Assist Press and hold button (2) when stationary to activate the Walk Assist which provides support from 0 km/h to 6 km/h. By using button (2) while cycling, the electrical support goes directly to its maximum (25 km/h).

  • Page 9: Battery And Recharging

    Recharge advice • Always recharge the battery with the Lacros charger supplied with the bike. Do not use any other charger. • The first 2 recharges of a new bicycle must be more than 60%. To realize this, wait the first 2 times before recharging, until the battery indicator on the display has fallen below 40%.

  • Page 10: Warning

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN Warning Read the warnings below carefully. • Do not expose the battery to fire or heat. Never put the battery in fire. • Do not drop the battery or damage it.

  • Page 11: Removing The Battery

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN Removing the Battery The battery can be removed from the battery box by first turning the key (1) 180 degrees to the left, and then carefully pull the battery back. Ensure that the battery is always locked when you place it back.

  • Page 12: Safety Rules

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN 6. Safety rules • Read your bicycle's manual carefully before your first use. • Follow the traffic rules strictly. • Never dismantle the bicycle yourself. Contact your Shinga B.V supplier for the device component.

  • Page 13: Warranty Provisions And Legal Requirements

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN 7. Warranty provisions and legal requirements Battery warranty The supplier of your battery gives a warranty on any material and construction errors to your battery if the following conditions are met: You can only claim the warranty if you can show a warranty or proof of purchase.

  • Page 14: Technical Specifications

    CE ORIGINAL MANUAL LACROS SCAMPER S600 VERSION CE 1.2 EN 8. Technical specifications • Dimensions folded out (LxWxH): 160x62x113cm • Dimensions folded (LxWxH): 86x40x80cm • Frame: Aluminum • Motor type: Bafang midmotor • Motor voltage: 36V • Motor power: 250W •...

  • Page 15: Ec Declaration

    THE NETHERLANDS Product: Electric folding bike Model: JSL 039Z Name: Lacros Scamper S600 THIS E-BIKE IS MANUFACTURED ACCORDING AND IN APPLIANCE WITH EUROPEAN UNION GUIDELINES AND REGULATIONS CONCERNING ELECTRIC BIKES WITH A MAXIMUM SPEED OF 25 KM/HOUR AND A MAXIMUM MOTOR OUTPUT OF 250W THE FOLLOWING “EN”...
