Signode SCM-12 Operation, Parts And Safety Manual page 13

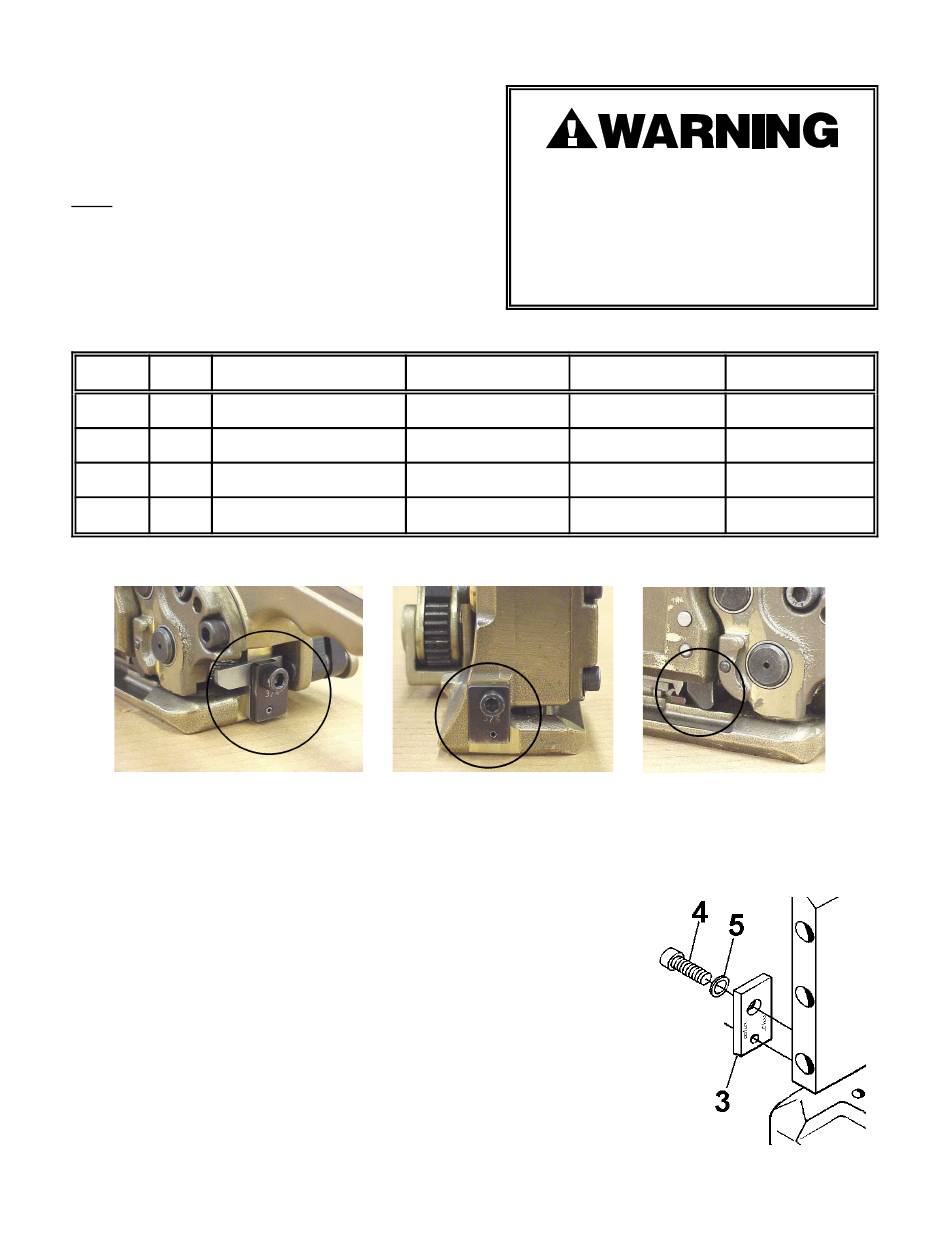

CHANGING SCM STRAP SIZE
The following table illustrates the unique
parts to a particular strap size for the SCM
tool. If the strap size of the tool is to be
changed, this table must be used to
coordinate all the respective parts which
must be reconfigured or replaced.
Follow all specified parts removal,
replacement & adjustment procedures found
in this manual when changing any of the
strap conversion parts.
UNIQUE PARTS & CONFIGURATION TO SCM STRAP SIZES
KEY QTY DESCRIPTION
3 1 Front Guide
2 1 Back Guide
26 1 Outer Guide
63 1 Nameplate
BACK GUIDE
NOTES:
1. Install guide (Key 3) with text "1/2" facing outward from tool.
Do not attempt to convert a tool's strap
size without replacing/reconfiguring all
of the specified parts for the conversion.
Failure to replace/reconfigure all
required parts may cause severe
personal injury.
1/2" (12mm) 5/8" (16mm)
424244, Note-1 424244, Note-2
424245, Note-3 424245, Note-4
424121, Note-5 424121, Note-5
424312 424314
FRONT GUIDE
16
3/4" (19mm)
424244, Note-2
424245, Note-4
424121, Note-6
424316
OUTER GUIDE
