3 Installation of ZWMA module

The ZWMA module should be mounted onto a wall or other permanent element of the building by
means of screws driven into cylindrical plugs inserted into openings drilled in the wall. In order to install the
ZWMA module, it is necessary to:
1. Take off the cover terminal of the casing.
2. Remount casing to the wall using screws.
3. Make all the necessary electric conections.
4. Screw the cover terminal of the casing .
cover
terminal
plug

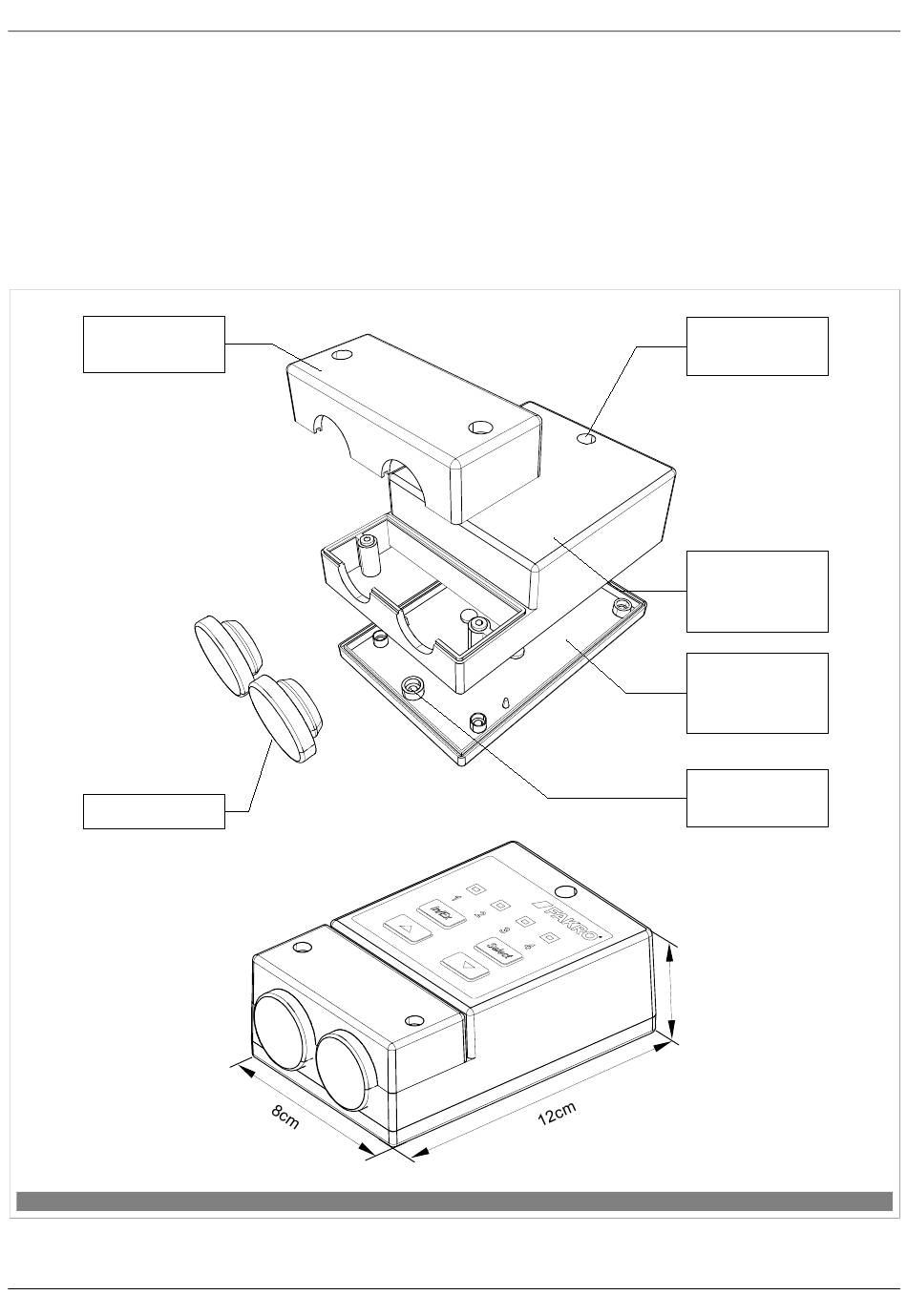

Figure 2: ZWMA adaptive module casing
13.11.21 NC825-GB 4/16
mounting
hole
upper part
of module
casing
lower part
of module
casing
mounting
hole
4,4cm
