4.6.2 Excluding a device from the Z-Wave network using the ZWMA adaptive module (EXCLUDE

function)

Excluding a device from the "Z-Wave" network is possible only with the use of a PRIMARY controller
(e.g. ZWK10, ZWP10, ZWPTV). If the ZWMA module in the Z-Wave network is marked as PRIMARY
(network configuration as per section 4.6.1), then devices can be excluded only using that module. The
procedure of device excluding from the network with the use of the ZWMA module is presented in Figure 8.
x2
1. Within 1 sec, press "In/Ex"
button twice.
4. The controller is signaling that
the device has been successfully
excluded form the network (two
external LEDs on for app. 2-3 sec.).
Note!!!
In the newer version of a controller, interrupting any procedure is possible by pressing the "IN/EX" button. In the older
version, it is necessary to wait 10 seconds until the error is signalled by the controller or reset it by disconnecting the power
supply.

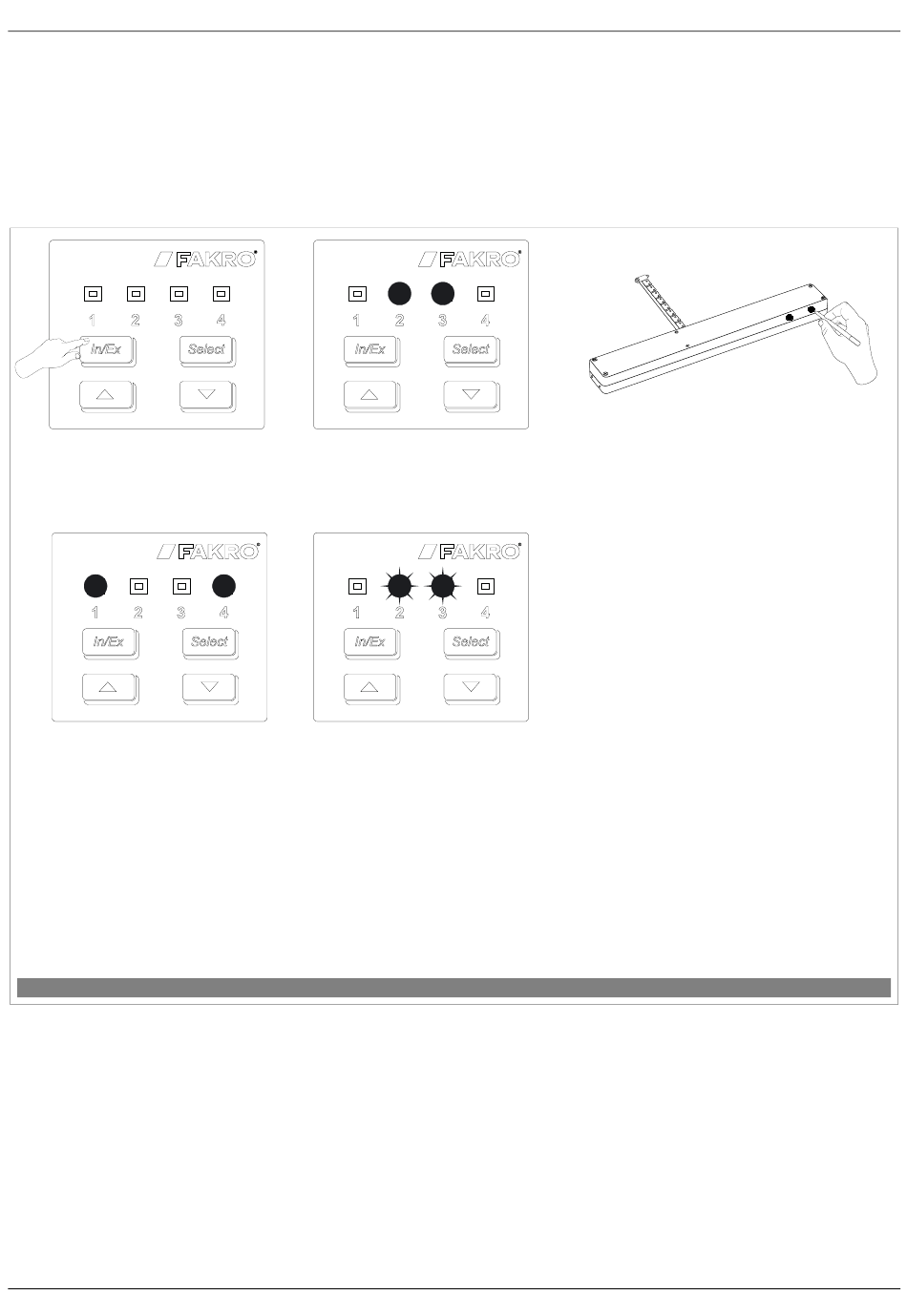

Figure 8: Excluding device from the Z-Wave network with the use of ZWMA adaptive module.
*) Programming error results from the fact of not receiving any response from the device and may be caused by:
failure to press the programming button within 10 seconds from the module signalling its readiness to delete the
•
device;
the device belonging to network other than module.
•
the device is already assigned to another network or has not been assigned to any network. It is necessary to
•
perform EXCLUDE function on the device and then again perform INCLUDE and ASSOCIATE functions.
13.11.21 NC825-GB
2. The controller is signaling
readiness for excluding the
device from the network (two
middle LEDs on for 10 sec.).
5*. Programming error – two
middle LEDs flashing for app.
2-3 sec.
11/16
3. Press "P" button on the device and
hold it for 0.5 sec. (see Device
Programming Manual).
x1
>0,5Sec.
