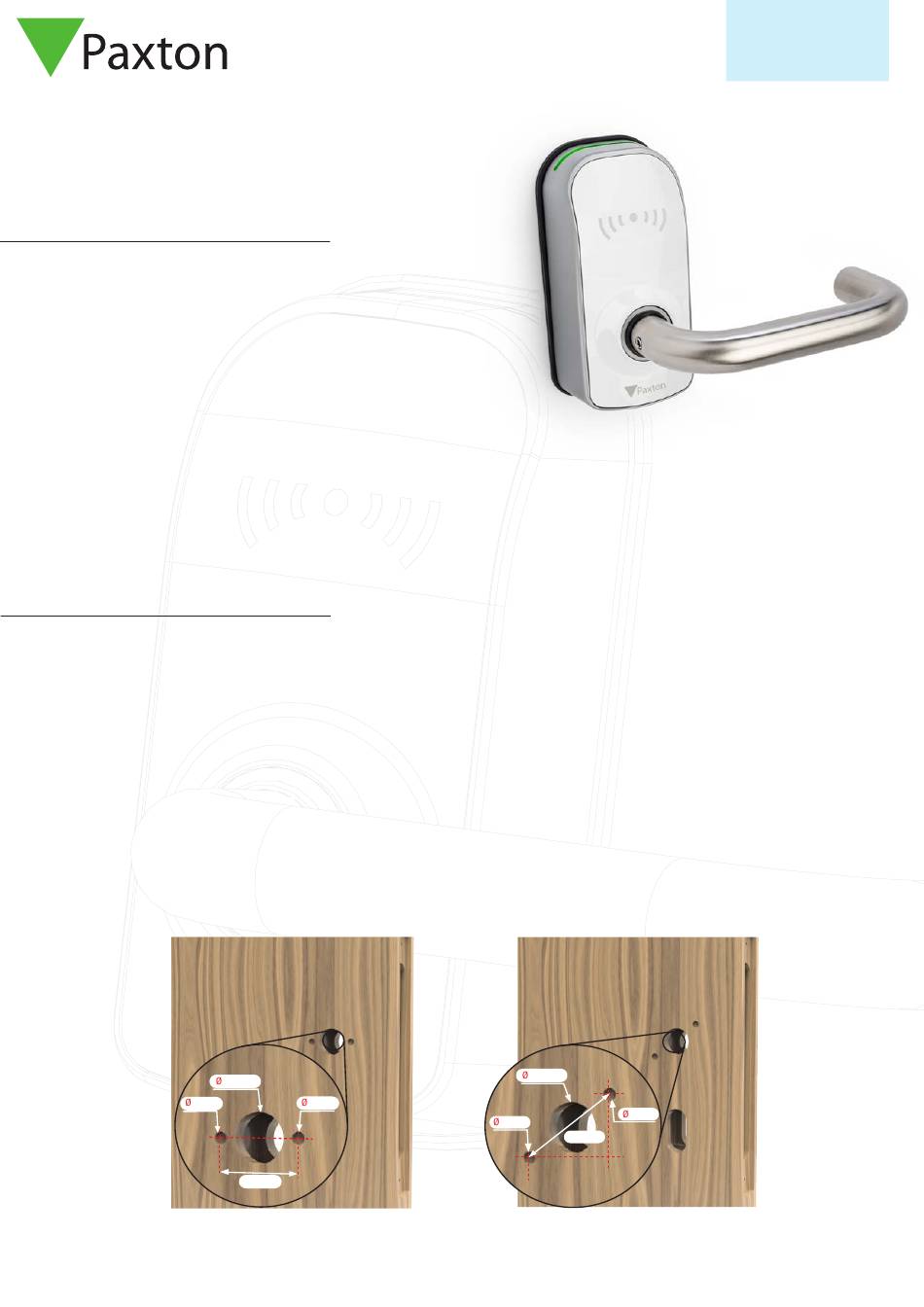

PaxLock Pro – Installation
and Commissioning Guide
Overview
When installing a PaxLock Pro it is important to
ensure the environment the PaxLock Pro is to be
installed in is fit for purpose.
This application note covers the preparation that
should be carried out before, during and after
installation to ensure the longevity of the PaxLock
Pro as well as correct installation.
This application note also covers a few common problems which may impact the performance
and quality of the PaxLock Pro
Checks to make prior to installation
Before installing the PaxLock Pro onto the door it is important to check that the door, frame and any
relevant door furniture are in good working order. This is important to ensure both the longevity and
smooth operation of the PaxLock Pro once installed
Through door holes
The PaxLock Pro has been designed to work with locksets that are either European (DIN 18251-1) or
Scandinavian profile as shown in Figure 1.
The through door holes must be 8mm diameter and the central follower must have at least 20mm
clearance around it.
20mm
8mm
Figure 1 – European drilling holes (left) & Scandinavian drilling holes (right)
8mm
38mm
.
20mm
8mm
34mm
Net2
AN1173-AE
8mm
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PaxLock Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paxton PaxLock Pro

Summary of Contents for Paxton PaxLock Pro

  • Page 1 Checks to make prior to installation Before installing the PaxLock Pro onto the door it is important to check that the door, frame and any relevant door furniture are in good working order. This is important to ensure both the longevity and...

  • Page 2: Door Frame

    It is best practice to ensure there is a gap of ≤3mm from the door edge to the frame. This is to ensure that if an anti-cord plunger is present on the lock case, it can function correctly. The door keep should also be ≤15mm to avoid clashing with the PaxLock Pro when the door is closed.
  • Page 3 Net2 AN1173-AE Figure 3 Floor The distance between the bottom of the door and the floor must be sufficient to allow the door to freely open and close without rubbing on the floor.
  • Page 4 Metal doors The PaxLock Pro is suitable for installation onto metal doors providing both the width and lockset are within the specifications outlined on the PaxLock Pro datasheet. To ensure correct operation the following must be checked: •...
  • Page 5 The PaxLock Pro is certified to the BS EN179 standard meaning the product is suitable for use on emergency exits in areas where a panic situation is unlikely to develop. The PaxLock Pro must be used with the PaxLock Pro - Euro, EN179 kit or the door system will not be compliant to BS EN179.

  • Page 6: Fire Doors

    > Fire Doors The PaxLock Pro is certified to EN 1634-1 covering both FD30 and FD60 rated timber fire doors. All door furniture used in the installation must have equivalent fire certification in order to comply. This includes the use of interdens as recommended by the lockset manufacturer.
  • Page 7 When passing the PaxLock Pro through the door to fit it, the unit must sit completely flush against the face of the door. If this is not the case the holes in the door may need adjusting.
  • Page 8 Once the PaxLock Pro has been installed there are several checks that can be made to ensure the PaxLock Pro has been installed and is functioning correctly. When the PaxLock Pro is first powered up it will remain in an unlocked state. This will give you the chance to check the following;...

  • Page 9: Troubleshooting

    The latch bolt is not fully retracting when the The turning angle of the lock case must be 45° handle is fully depressed? or lower for the PaxLock Pro to fully retract the latch. If it is over this, the lockcase will need replacing.
  • Page 10 Net2 AN1173-AE The PaxLock Pro is not responding when I Make sure the secure side chassis is fitted. This present a token is required for the PaxLock Pro to function. The through door cables have sheered when This may be because the door is too narrow fitting the chassis.
