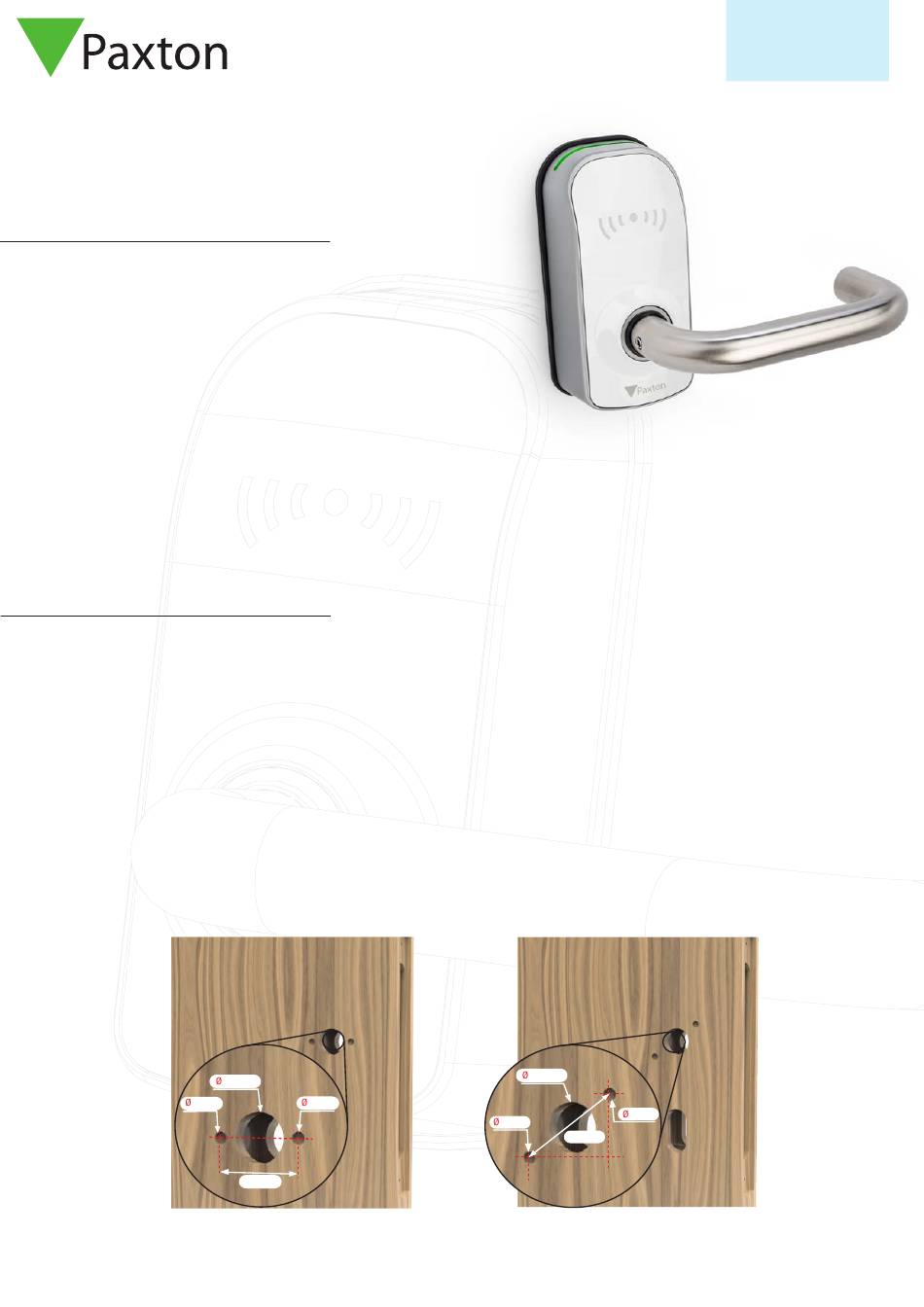

PaxLock Pro – Installation
and Commissioning Guide
Overview
When installing a PaxLock Pro it is important to
ensure the environment the PaxLock Pro is to be
installed in is fit for purpose.
This application note covers the preparation that
should be carried out before, during and after
installation to ensure the longevity of the PaxLock
Pro as well as correct installation.
This application note also covers a few common problems which may impact the performance
and quality of the PaxLock Pro
Checks to make prior to installation
Before installing the PaxLock Pro onto the door it is important to check that the door, frame and any
relevant door furniture are in good working order. This is important to ensure both the longevity and
smooth operation of the PaxLock Pro once installed
Through door holes
The PaxLock Pro has been designed to work with locksets that are either European (DIN 18251-1) or
Scandinavian profile as shown in Figure 1.
The through door holes must be 8mm diameter and the central follower must have at least 20mm
clearance around it.
20mm
8mm
Figure 1 – European drilling holes (left) & Scandinavian drilling holes (right)
8mm
38mm
.
20mm
8mm
34mm
Net2
AN1173
8mm
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Paxton Pro AN1173
Summary of Contents for Paxton Pro AN1173
- Page 1 Net2 AN1173 PaxLock Pro – Installation and Commissioning Guide Overview When installing a PaxLock Pro it is important to ensure the environment the PaxLock Pro is to be installed in is fit for purpose. This application note covers the preparation that should be carried out before, during and after installation to ensure the longevity of the PaxLock Pro as well as correct installation.
-
Page 2: Door Frame
The door keep should also be ≤15mm to avoid clashing with the PaxLock Pro when the door is closed. Door usage The PaxLock Pro is recommended for use on doors being operated up to 75 times per day. For usage above this number we would recommend a Paxton hard wired solution. - Page 3 Net2 AN1173 Figure 3 Floor The distance between the bottom of the door and the floor must be sufficient to allow the door to freely open and close without rubbing on the floor.
- Page 4 Net2 AN1173 Door Closer If a door closer is being used it must be adjusted to ensure the door closes without slamming but does not require excessive force to open. Door Stop The use of a door stop is advised on doors that can hit an adjacent wall when fully opened. This will prevent damage being caused to the PaxLock Pro.
- Page 5 The appropriate cover plate will need to be ordered depending on whether a key override is present and matched to the centre measurement of the lockset. Also see: Cover plates dimensional drawing < paxton.info/3560 > BS EN179 – Emergency Exit devices for use on escape routes BS EN179 is a standard for devices to be used in emergency situations where people are familiar with the emergency exit and its hardware, therefore a panic situation is unlikely to develop.
-
Page 6: Fire Doors
AN1173 Sales Code: 901-015 PaxLock Pro - Euro, EN179 kit You can view the PaxLock Pro’s BS EN179 certification at the following link < paxton.info/3689 > Fire Doors The PaxLock Pro is certified to EN 1634-1 covering both FD30 and FD60 rated timber fire doors. All door furniture used in the installation must have equivalent fire certification in order to comply. - Page 7 AN1173 PaxLock Pro Installation The supplied template < Paxton.info/3585 > should be used to check that the holes in the door are in the right location and correctly sized for the PaxLock Pro. To ensure the PaxLock Pro is perpendicular to the door edge it is important to mark and drill the anti- rotation screw in the correct location, as indicated below.
- Page 8 Net2 AN1173 After terminating the power and data cables it is important to tuck the cables behind the PCB in the centre of the device, as indicated below Post installation commissioning Once the PaxLock Pro has been installed there are several checks that can be made to ensure the PaxLock Pro has been installed and is functioning correctly.
-
Page 9: Troubleshooting
Net2 AN1173 Troubleshooting To help improve the quality of the installation and the longevity of the product several common issues and potential solutions are listed below. Problem Recommendation Lockset Lockcase is old, worn or not freely moving Applying a silicone-based lubricant may improve this operation. - Page 10 Net2 AN1173 The PaxLock Pro is not responding when I Make sure the secure side chassis is fitted. This present a token is required for the PaxLock Pro to function. The through door cables have sheered when This may be because the door is too narrow fitting the chassis.
