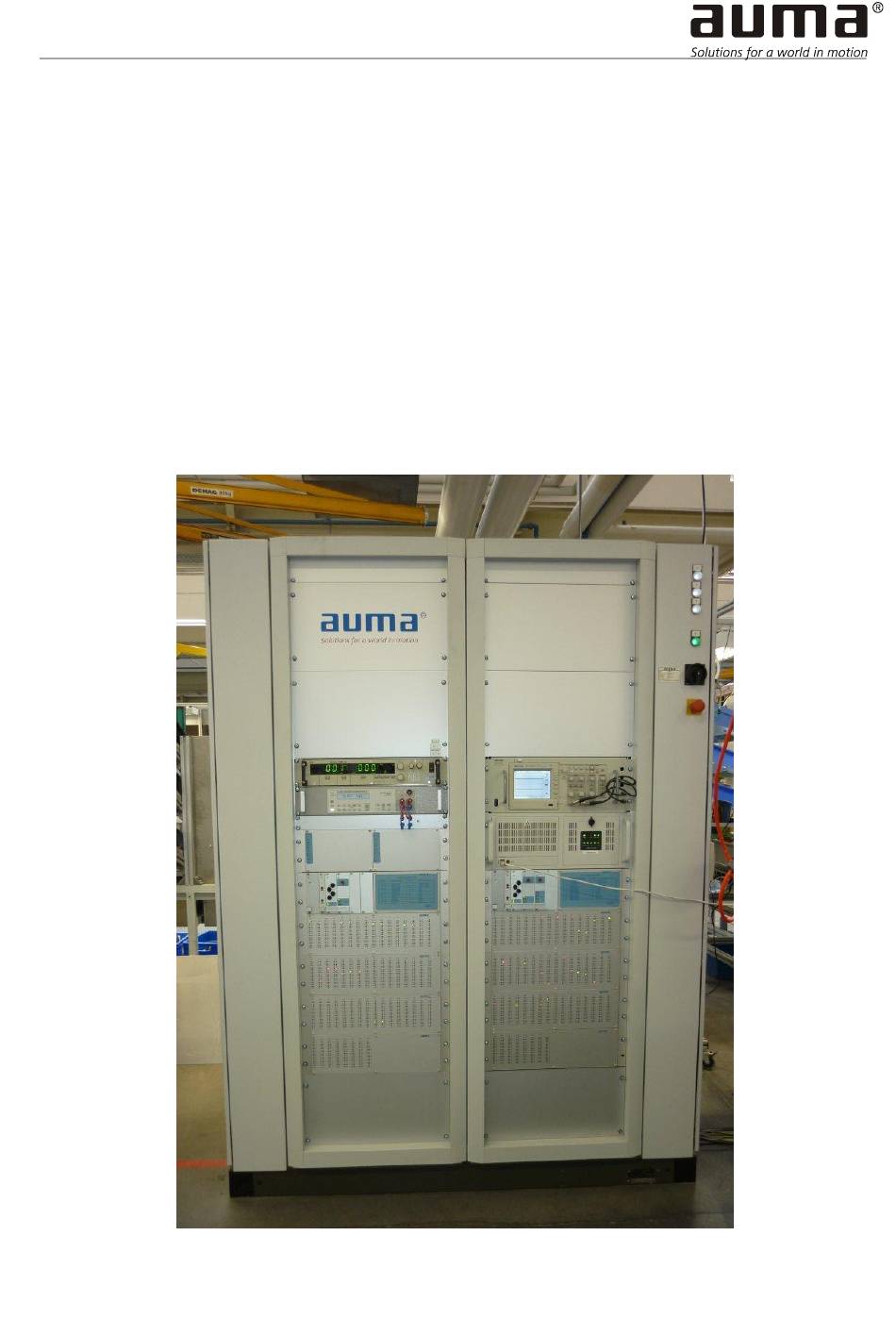

  • Page 1 Operation instructions PV1644 Testing device for auma AC control systems Control system...
  • Page 2 Workbench Page 2...
  • Page 3 NOTICE Read operation instructions first. Observe safety instructions. • These operation instructions are part of the product. • Retain operation instructions during product life. • Pass on instructions to any subsequent user or owner of the product. • NOTICE Warranty claims Failure to observe these operation instructions voids all warranty claims.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Safety instructions ..................5 General information on safety ..................5 Warnings and notes ....................... 6 General information .................. 7 Important notes ..................8 Transport and storage ....................8 Operating conditions ...................... 8 Assembly and commissioning ..................8 3.3.1 Installation (electrical connection) ................
  • Page 5: Safety Instructions

    1.1 General information on safety Standards/directives AUMA products are designed and manufactured in compliance with recognised standards and directives. This is certified in a declaration of incorporation and a declaration of conformity. The end user or the contractor of the plant must observe national laws and regulations regarding assembly, electrical connection, and commissioning on site.
  • Page 6: Warnings And Notes

    WARNING During electrical operation, certain parts inevitably carry hazardous voltages. Work on the electrical system or equipment must only be carried out by a skilled electrician himself or by specially instructed personnel under the control and supervision of such an electrician and in accordance with the applicable electrical engineering rules.
  • Page 7: General Information

    A new calibration of the measuring unit can only be performed by trained personnel while observing the calibration instructions. 2 General information This device is used to perform functional tests of AUMA control systems Page 7...
  • Page 8: Important Notes

    Prior to storage: Protect test contacts against corrosion 3.2 Operating conditions Operation of PV1644 is guaranteed when working in ambient temperatures of 0 – 40 ° C. Fluctuation of the supply voltage is only permissible within the tolerances TAB/VDE 3.3 Assembly and commissioning 3.3.1...
  • Page 9: Commissioning

    AUMA original parts. • • 4 Purpose This document document describes the use of PV1644. The device is used for performing the functional tests on AUMA controls, without the use of AUMA actuators. Page 9...
  • Page 10: System Overview (Refer To Attachment)

    5 System overview Page 10...
  • Page 11: Description Of The Design

    5.1 Description of the design 5.1.1 The supply module consists of: Main switch • Main fuses • Control fuses • Residual current circuit breaker, 3-phase • Main contactor • 3-phase AC constant-voltage transformer 0 – 710V, motor operated • 3-phase AC rectifier •...
  • Page 12: Crossbar Xk

    5.1.4 Crossbar Xk The crossbar is controlled via an USB module within the control computer. The code from the USB module is transformed into an I²C bus signal. This signal controls the individual relays on the relay board. Control is performed in series.
  • Page 13: Crossbar Xa

    5.1.6 Crossbar Xa The crossbar is controlled via an USB module within the control computer. The code from the USB module is transformed into an I²C bus signal. This signal controls the individual relays on the relay board. Control is performed in series.
  • Page 14: Load Module

    Load module The load module can be used for simulating actuator functions. A load of approx. 1A is applied to the test specimen (AUMA MATIC, AUMATIC etc.) within the power circuit. This is implemented by power resistors which are controlled in four load steps depending on the operating voltage.
  • Page 15: Technical Data

    7 Technical data Dimensions (W-H-D) 1760 x 2000x 600 mm control cabinet Weight approx. 120kg Ambient temperatures 0 ° C to 40 ° C Enclosure protection IP 50 Connection voltage 3Ph 400 V 50 Hz, N, PE Fuse max. 10 A Power consumption 3 kVA max Dimensions (W-H-D)
  • Page 16 AUMA Riester GmbH & Co. KG P.O.Box 1362 D 79373 Muellheim Tel +49 7631 809 - 0 Fax +49 7631 809 - 1250 riester@auma.com www.auma.com Y005.661/003/en/1.12 For detailed information on AUMA products refer to the Internet: www.auma.com...
