Orion
60mm Multi-Use Guide Scope
®
Congratulations on your purchase of the Orion 60mm Multi-Use Guide Scope with Helical Focuser. It's
a smartly designed, versatile guide scope that can also be used as a straight-through finder scope with
the addition of a 1.25" eyepiece, sold separately. It features a "non-rotating" helical focuser with a built-
in, adjustable extension tube that enables the user to quickly achieve sharp focus of guide stars with
your autoguiding camera. The guide scope's 60mm objective lens gathers 44-percent more light than a
50mm guidescope, putting more potential guide stars on your autoguider's CCD sensor! Includes dual-
ring mounting bracket with six-point adjustment and Vixen-style dovetail bar.
Parts list
1.
60mm guide scope with precision helical focuser
2.
Dual-ring bracket with six nylon-tip screws and dovetail bar
3.
Objective lens cover
Accesory collar
thumbscrews
1.25" accessory
collar
Focus lock
thumbscrew

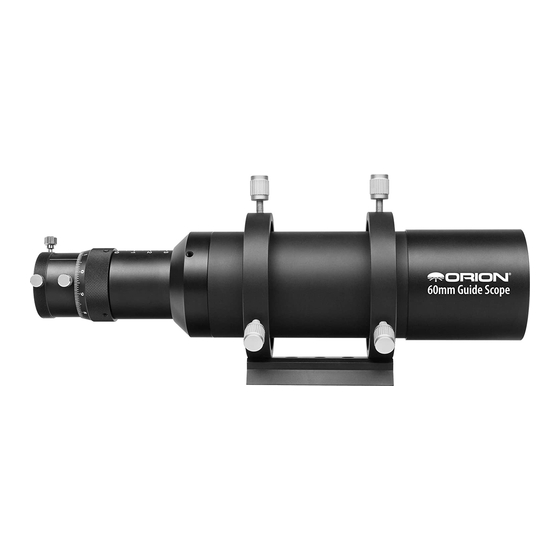

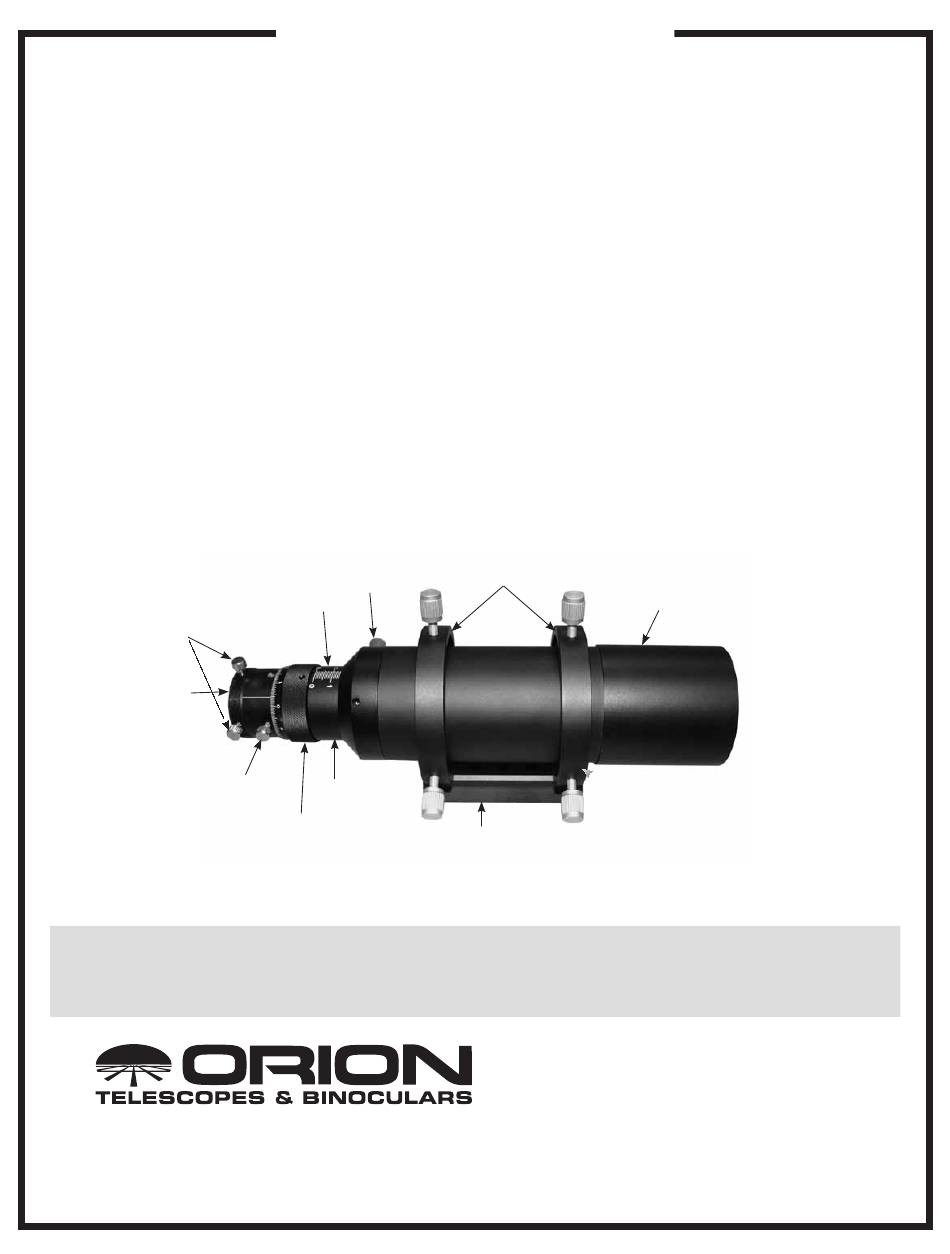

Figure 1. The Orion 60mm Multi-Use Guide Scope with Helical Focuser and included components.
WarninG: Never look directly at the Sun with the naked eye or with an optical instrument – unless you
have a proper solar filter installed over the front of the instrument! Otherwise, permanent, irreversible eye
damage may result.
Providing Exceptional Consumer Optical Products Since 1975
All Rights Reserved. No part of this product instruction or any of its contents may be reproduced,
copied, modified or adapted, without the prior written consent of Orion Telescopes & Binoculars.
inStrUctiOn ManUal
with Helical Focuser
Extension tube locking
thumbscrew
Millimeter scale
Extension tube
Knurled helical
foucus ring
Copyright © 2015 Orion Telescopes & Binoculars
#13008
assembly
The 60mm Multi-Use Guide Scope comes fully assembled and
mounted in the dovetail bracket. Refer to Figure 1 to familiar-
ize yourself with the features and parts of the guide scope.
Thumbscrews (x6)
Dovetail bar
Customer Support:
www.OrionTelescopes.com/contactus
Corporate Offices:
89 Hangar Way, Watsonville CA 95076 - USA
Dew/glare
Shield
Dual-ring
bracket
IN 558 Rev. A 08/15
