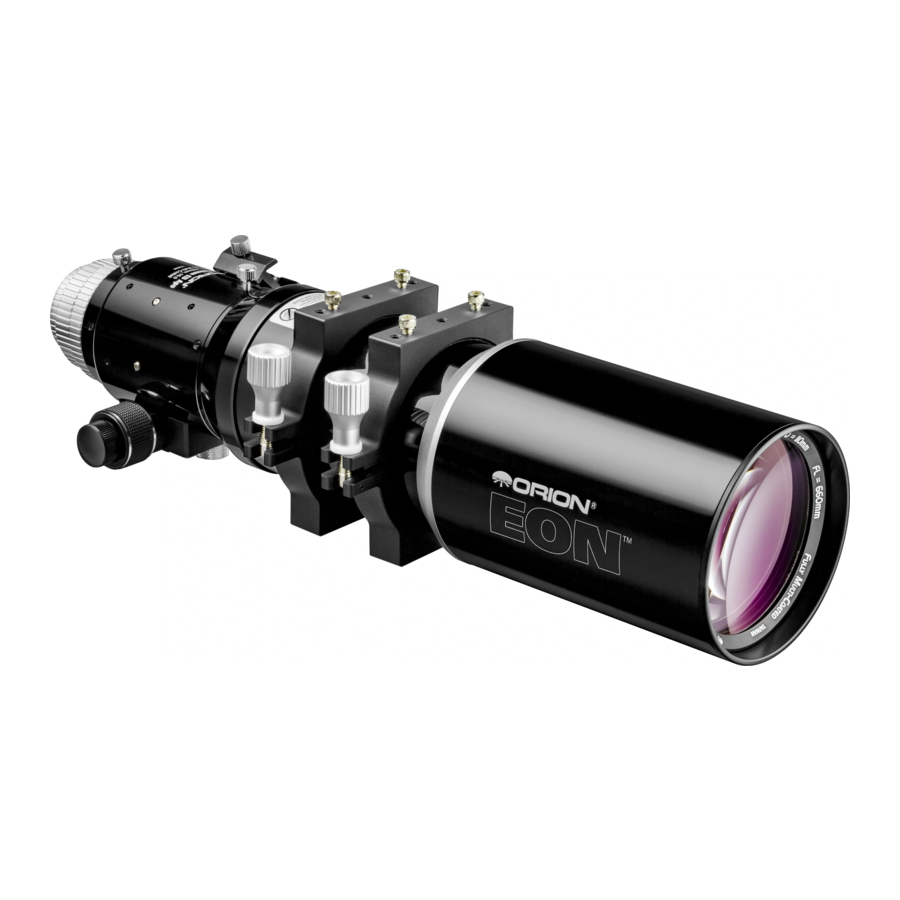

Orion EON 110mm ED f/6.0 Instruction Manual

Apochromatic refractor
Hide thumbs

Advertisement

Quick Links

Download this manual

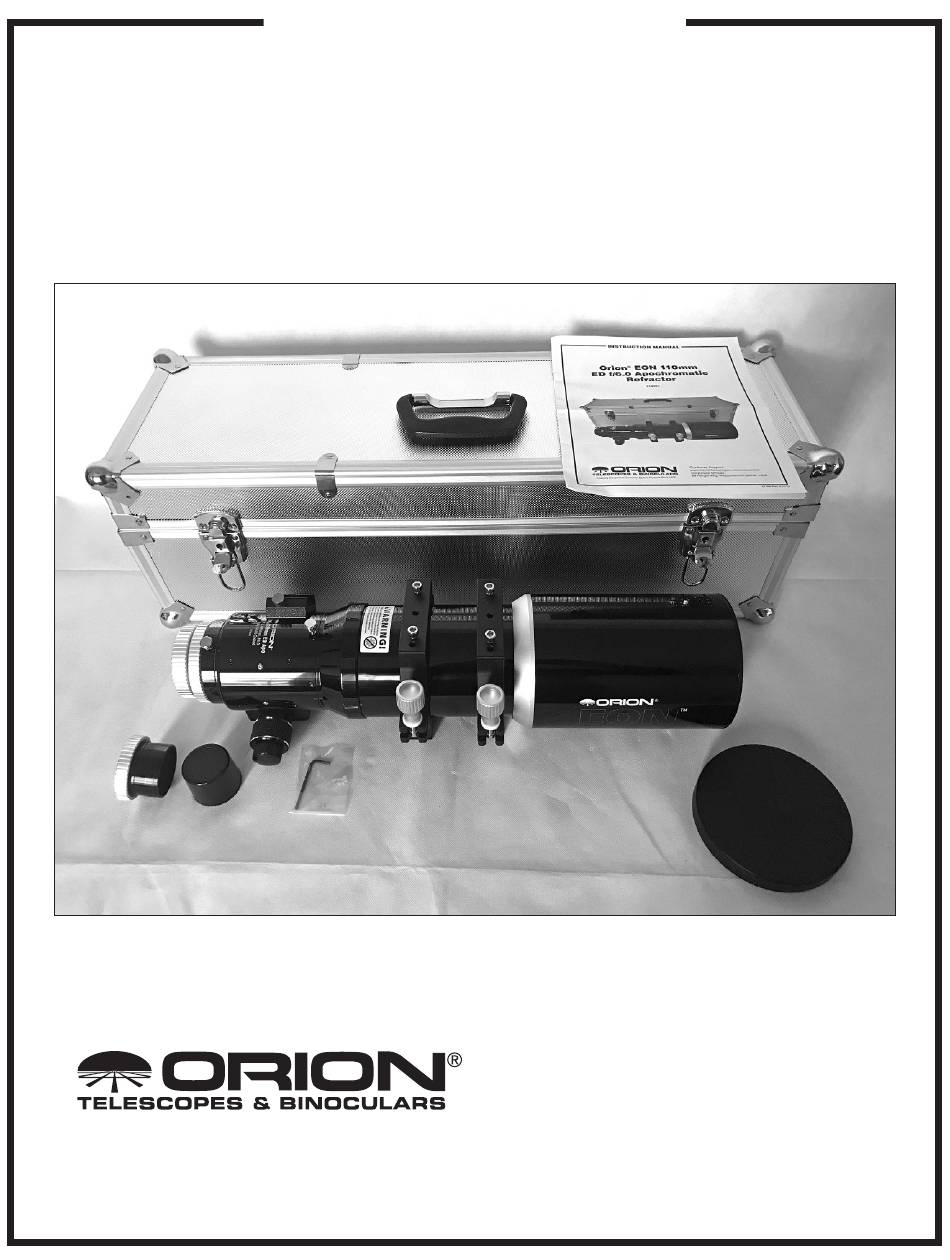

INSTRUCTION MANUAL
Orion
EON
110mm ED f/6.0
®
™
Apochromatic Refractor
#10031
Customer Support:
www.OrionTelescopes.com/contactus
Corporate Offices:
Providing Exceptional Consumer Optical Products Since 1975
89 Hangar Way, Watsonville CA 95076 - USA
Copyright © 2018 Orion Telescopes & Binoculars
All Rights Reserved. No part of this product instruction or any of its contents may be reproduced, copied, modified or adapted,
without the prior written consent of Orion Telescopes & Binoculars.
IN 496 Rev.D 11/18

Advertisement

loading

Related Manuals for Orion EON 110mm ED f/6.0

Summary of Contents for Orion EON 110mm ED f/6.0

  • Page 1 Copyright © 2018 Orion Telescopes & Binoculars All Rights Reserved. No part of this product instruction or any of its contents may be reproduced, copied, modified or adapted, without the prior written consent of Orion Telescopes & Binoculars. IN 496 Rev.D 11/18...

  • Page 2: Table Of Contents

    Congratulations on your purchase of an Orion EON 110mm ED f/6.0 Apochromatic Refractor! Your telescope has been designed with high quality precision ED optics and superior mechanical construction. The 2.7” hybrid-design, dual-speed (11:1) Crayford focuser with linear bearings will rigidly support heavy imaging or visual equipment loads and provide smooth, backlash-free focus- ing.

  • Page 3: Features And Functions

    Features and Functions linear-bearing system enables the focuser to support up to a hefty 8kg (17.6 lbs.) of payload -- such as a large format CCD camera, filter wheel, and other accessories. The patented focus The EON 110 ED apochromatic refractor has premium features lock mechanism locks the drawtube in two directions, providing designed to maximize the performance of the scope and its a much more rigid lock than the single-point locking mechanism...

  • Page 4: Operating The Eon 110Mm Ed

    Adding an optional finder scope to the EON 110 ED is easy. The focuser is equipped with a dovetail finder scope base (see Figure 1) that accepts any Orion finder scope or reflex sight as well as the Orion Dual Finder Scope bracket (#10145).

  • Page 5: Care & Maintenance

    APS-C size sensor or Observing with the EON 110 ED larger. The Orion Field Flattener for Short Refractors (#8893) is To observe with the EON 110 ED you will need either a 1.25"...
  • Page 6 Figure 6. The EON 110 optical tube comes in a foam-fitted, aluminum-clad carrying case. When you are ready to pack up your telescope at the end of the night, avoid immediately storing it if you encountered heavy dew and the telescope is damp. Instead, bring the telescope inside and allow the moisture on the telescope to evaporate.

  • Page 7: Specifications

    Specifications Optical tube: Seamless aluminum Optics design: Air-spaced doublet Lens cell: Machined aluminum Lens glass: ED S-FPL51 and S-NBM51 Aperture: 110mm Focal length: 660mm F-ratio: Lens coatings: Fully multi-coated (all air-to-glass surfaces multi-layer coated) Tube baffles: Knife edge baffles (x3) Tube length, dew shield retracted: 21.75"...
