Tru-Turf R50-11 Owner's Manual page 34

Transmission Assembly

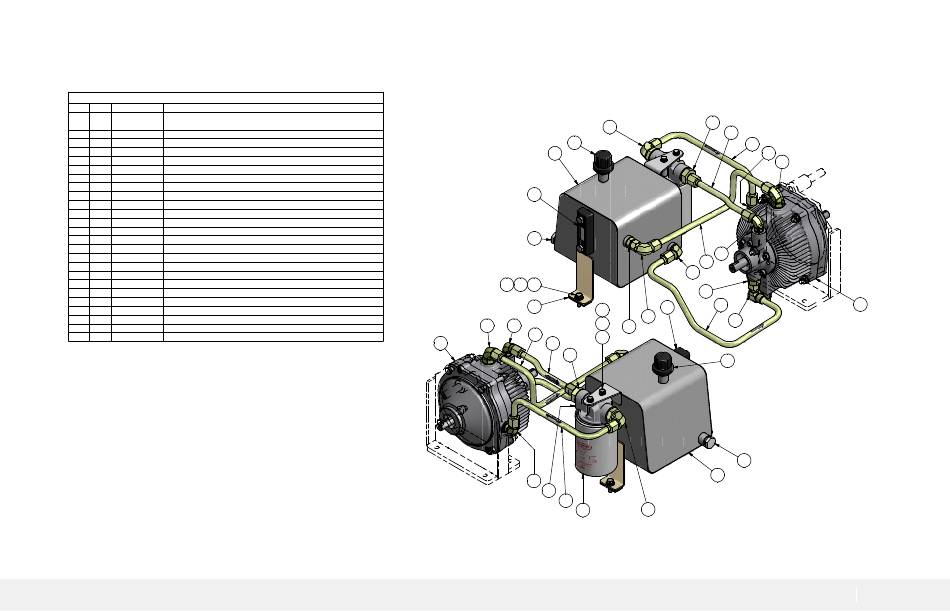

RS2080 TRANSMISSION, TANK & OIL PIPES ASSEMBLY R50-11 - PARTS LIST
ITEM QTY PART NUMBER
1 1 R5133 EATON 11 HYDROSTATIC TRANSMISSION - 1100-078 WITH OUTPUT SHAFT
STRAIGHT CUT KEYWAY(REFERENCE ONLY)
2 1 R5143 TANK, TRANSMISSION OIL
3 1 R5145 PLUG, TANK DRAIN - 1/2" BSP
4 1 R5144 BREATHER, OIL TANK
5 1 R5147 CARTRIDGE, FILTER, TRANSMISSION OIL TANK
6 1 R8013 HOUSING, FILTER, TRANSMISSION OIL TANK
7 2 R8118 BOLT, HEX, ZP - 1/4" UNC x 3/4" LG
8 2 R8050 WASHER, SPRING, ZP - 1/4"
9 1 R5148 GAUGE, SIGHT, COMPLETE
10 1 RS2081 PIPE, OIL, TRANSMISSION - OIL TANK SUPPLY TO EATON PUMP
11 1 RS2082 PIPE, OIL, TRANSMISSION - EATON PUMP TO OIL FILTER
12 1 RS2083 PIPE, OIL, TRANSMISSION - OIL FILTER TO TRANSMISSION
13 1 RS2084 PIPE, OIL, TRANSMISSION - TRANSMISSION RETURN TO OIL TANK
14 1 R5227 FITTING, ELBOW, 90 DEG, JIC-UNO
15 1 R5228 FITTING, STRAIGHT, BSPP-ORR
16 1 R5229 FITTING, ELBOW, 90 DEG, BSPP-ORR
17 1 R5230 FITTING, STRAIGHT, UNO-ORB
18 1 R5231 FITTING, STRAIGHT, BSPT-ORR
19 1 R5232 FITTING, ELBOW, 90 DEG, BSPT-ORR
2 R5233
20 FITTING, ELBOW, 90 DEG, ORB-ORR
21 2 R5234 FITTING, ELBOW, 90 DEG, SWIVEL JIC - TUBE JIC
22 2 R5197 STRIP, RUBBER, OIL TANK MOUNT
23 2 R8064 BOLT, HEX, ZP - 5/16" UNF x 1" LG
24 2 R8051 WASHER, SPRING, ZP - 5/16"
25 2 R8200 WASHER, FLAT, SAE, ZP - 1/4" ID x 9/16" OD x 1/16" THK
16
4
2
9
3
25 24 23
22
25
8
14 20
13
7
1 11
15
R50-11 Owners Manual
DESCRIPTION
15
11
12
20
14
20
13
19
17
10
9
21
21
18
4
15 1 R5228 FITTING, STRAIGHT, BSPP-ORR
16 1 R5229 FITTING, ELBOW, 90 DEG, BSPP-ORR
17 1 R5230 FITTING, STRAIGHT, UNO-ORB
18 1 R5231 FITTING, STRAIGHT, BSPT-ORR
19 1 R5232 FITTING, ELBOW, 90 DEG, BSPT-ORR
20 2 R5233 FITTING, ELBOW, 90 DEG, ORB-ORR
21 2 R5234 FITTING, ELBOW, 90 DEG, SWIVEL JIC - TUBE JIC
22 2 R5197 STRIP, RUBBER, OIL TANK MOUNT
23 2 R8064 BOLT, HEX, ZP - 5/16" UNF x 1" LG
24 2 R8051 WASHER, SPRING, ZP - 5/16"
25 2 R8200 WASHER, FLAT, SAE, ZP - 1/4" ID x 9/16" OD x 1/16" THK
16
4
2
9
3
25 24 23
22
25
8
14 20
13
7
1 11
15
20
6
12
5
1
15
11
12
20
14
20
13
19
17
10
9
21
21
18
4
3
2
16
