3. When the Pocket PC tries to connect, the Power and Data LEDs will
blink. After the device connects, it will receive/transmit the information
as requested (e.g., Pocket Internet Explorer will display the requested
website).
Connection icon: (Navigation bar at top of screen)
Indicates an active dial-up or network connection
Modem status icon: (Appears if you installed Socket software)
GREEN — connected
When the Pocket PC is connected, the Link and Power Status LEDS will
stay on, and the Data Status LED will blink during data transmission.
Ending a Data Call

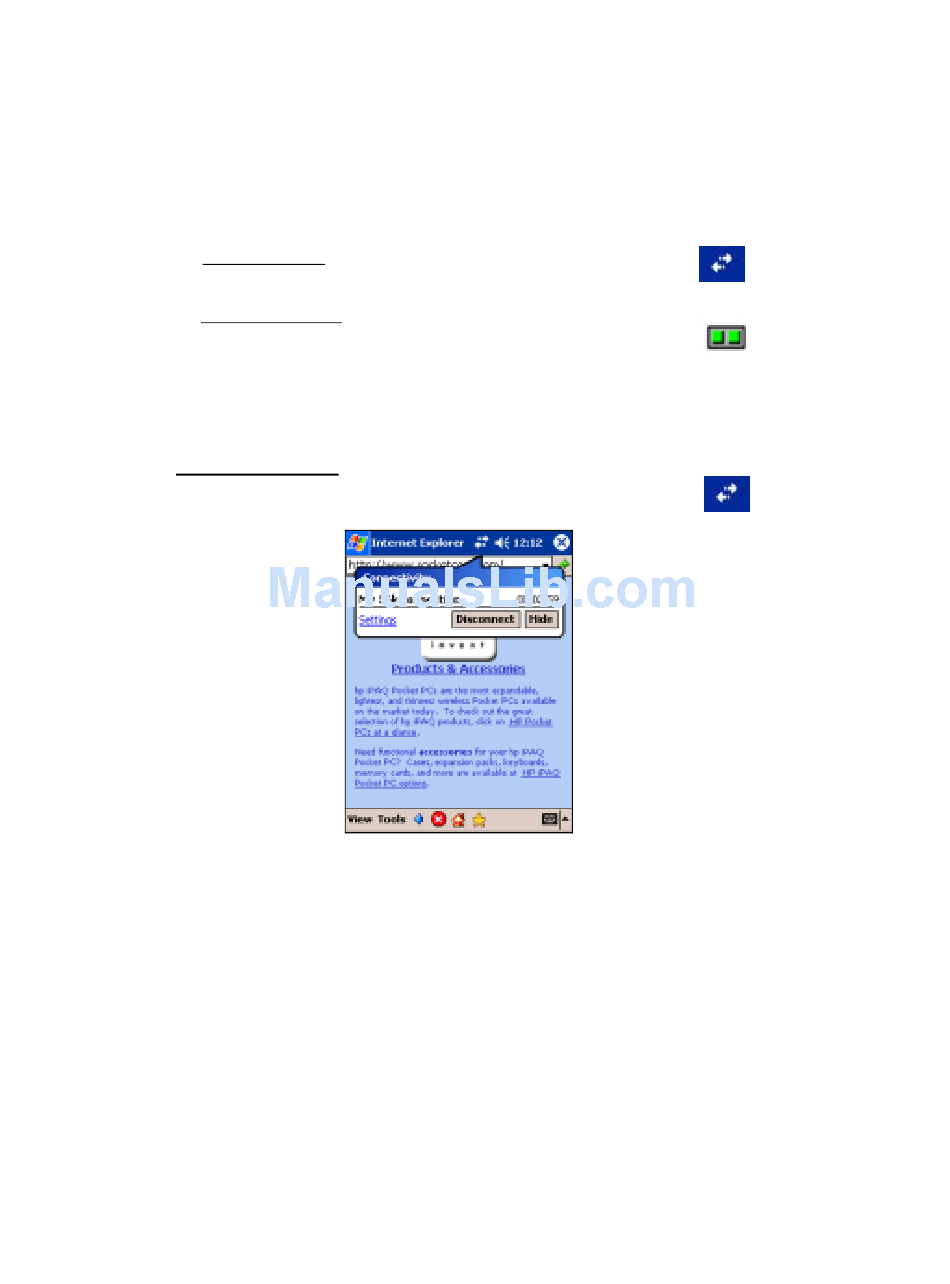

1. Tap on the connection icon in the navigation bar at the top of
your screen.
2. In the status screen, tap Disconnect. After the Pocket PC disconnects,
the connection icon will disappear, and the modem status icon will turn
red before disappearing. All LEDs may turn off, depending on your
device.
30 | CHAPTER 2: SETUP FOR WINDOWS CE
RED — data transmitting
