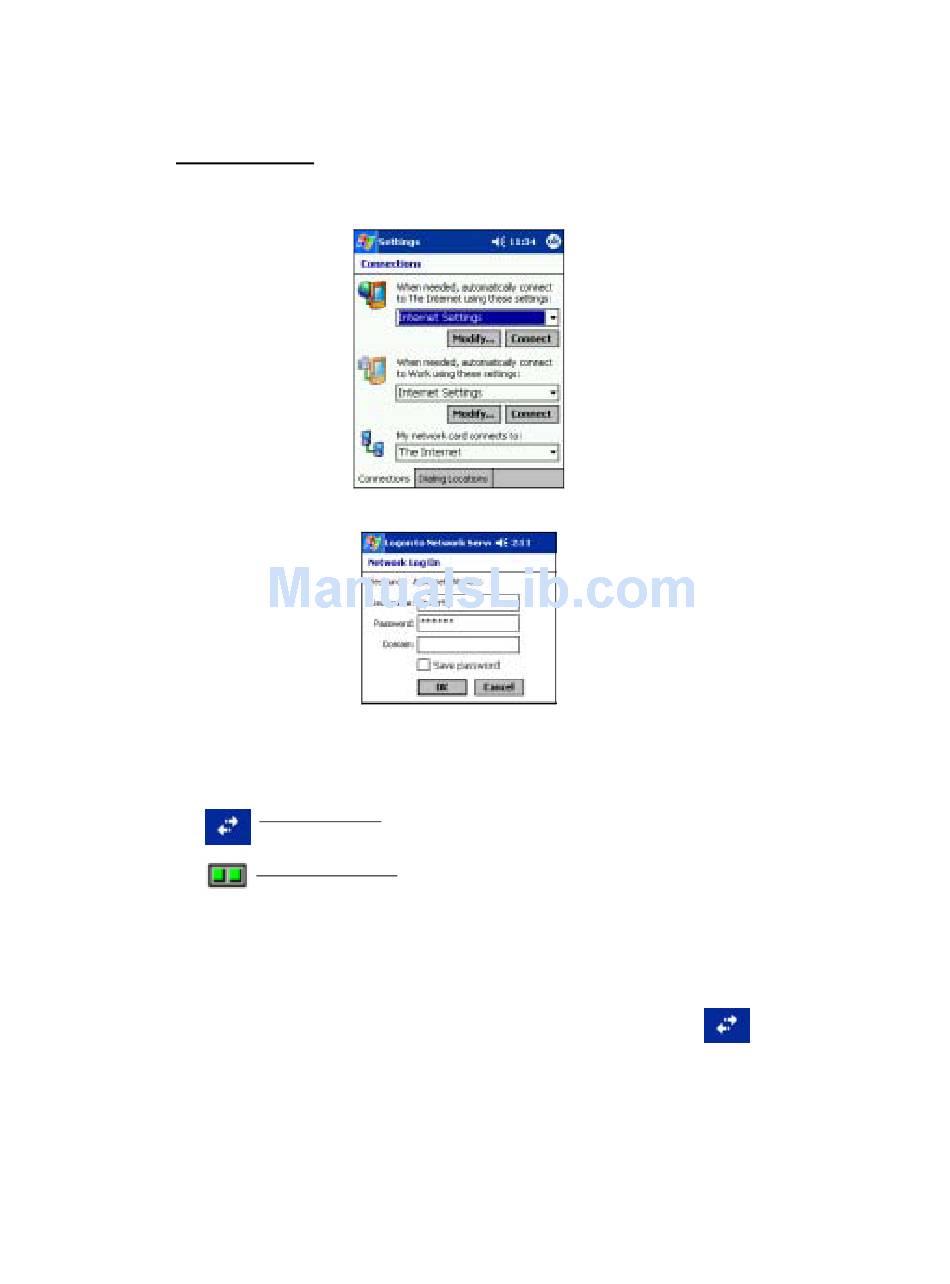

1. After setting up the dial-up connection, you will be in the Connections
screen. In the top field, make sure Internet Settings is selected. Tap
Connect.
2. Make sure the correct User name and Password are entered.
3. Tap OK. Connection status screens will appear, and the Power and Data
LEDS will blink. When the status screen reports that you have
Connected, the screen will show two icons.
Connection icon: (Navigation bar at top of screen)
Indicates an active dial-up or network connection
Modem status icon: (Task tray at bottom of screen)
GREEN — connected
When the Pocket PC is connected, the Link and Power Status LEDS will
stay on, and the Data Status LED will blink during data transmission.
Ending a Data Call
1. Go to Start | Today. Tap on the connection icon in the navigation
bar at the top of your screen.
2. In the status screen, tap End. After the Pocket PC disconnects, the
connection icon will disappear, and the modem status icon will turn red
before disappearing. All LEDs may turn off, depending on your device.
26 | CHAPTER 2: SETUP FOR WINDOWS CE
To access this
screen any
time, go to:
Start –
Settings –
Connections -
Connections.
You may need
to modify your
dial properties.
Refer to your
Pocket PC
2002's user
manual for
instructions.
RED — data transmitting
