ASSEMBLY / OPERATOR'S MANUAL

GF 6401 T GYROTEDDER

N° 95215 D.GB - 04.2002

Table of Contents

Need help?

Do you have a question about the GF 6401 T and is the answer not in the manual?

Questions and answers

Summary of Contents for KUHN GF 6401 T

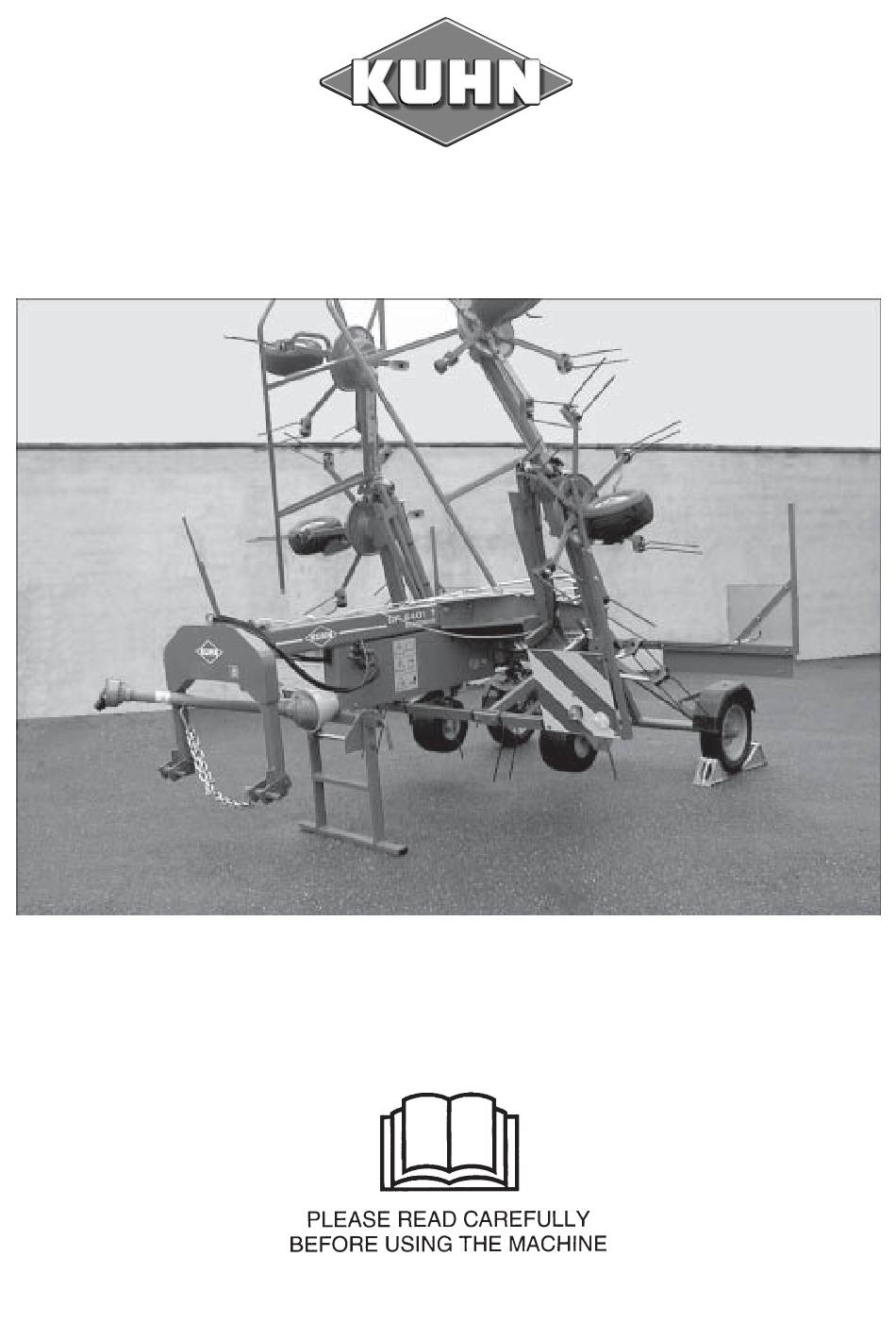

Page 1 ASSEMBLY / OPERATOR'S MANUAL GF 6401 T GYROTEDDER N° 95215 D.GB - 04.2002...
Page 2 DEAR OWNER, In buying a KUHN machine you have chosen wisely. Into it have gone years of thought, research and improvements. You will find, as have thousands of owners all over the world, that you have the best that engineering skill and actual field testing can produce. You have purchased a dependable machine, but only by proper care and operation can you expect to receive the performance and long service built into it.
Page 3: Table Of Contents
CONTENTS Safety Safety decals Technical specifications Assembly instructions Attachment : - to the tractor - PTO shaft Working position and adjustments Transport position Parking the machine Lubrication Optional equipment Electrical connector (for North America) Conditions of limited warranty - 1 -...
Page 4: Safety
DESIGNATED USE OF THE MACHINE The GF 6401 T Gyrotedder must only be used for the work for which it has been designed : spreading and turning pre-mowed fodder and straw. When fitted with a reduction gearbox, the GF 6401 T can also be used for forming small night swaths in order to reduce the amount of humidity getting into the crop overnight.
Page 5 GENERAL SAFETY RECOMMENDATIONS Before operating the machine, always ensure that tractor and machine are in accordance with work safety and road traffic regulations. BASIC PRINCIPLES 1. In addition to the recomendations given in this manual, legislation on work safety and accident prevention must also be respected.
Page 6 17. Never leave the tractor seat while the machine is operating. 18. Drive speed must be adapted to ground conditions as well as to roads and paths. Always avoid abrupt changes of direction. 19. Precision steering, tractor adherence, road holding and efficient braking are influenced by the type of implement, weight, ballast of front axle, ground or road conditions.
Page 7 ATTACHMENT 1. When attaching or removing the machine from the tractor, position hydraulic lift control lever in such a way that it cannot be set off accidentally. 2. When attaching the machine to the tractor linkage, ensure that diameter of the link pins corresponds to the diameter of the ball joints.
Page 8 HYDRAULIC SYSTEM 1. Beware ! The hydraulic circuit is under pressure (maximum working pressure : 200 bars/2900 psi). 2. When fitting hydraulic motors or cylinders, ensure that connections have been made correctly, as per manufacturer’s instructions. 3. Before connecting hoses to the tractor hydraulics, ensure that tractor and machine circuits are not under pressure.
Page 9 8. Spare parts used must be in accordance with specifications and standards as defined by the manufacturer. Use only genuine KUHN parts ! 9. Before any electric welding is carried out on tractor or attached machine, disconnect generator and battery terminals.
Page 10: Safety Decals
SAFETY DECALS MODEL IDENTIFICATION PLATE The following safety pictorials have been placed on your machine in the areas indicated. They are intented for your personal safety and for the safety of the people working with you. The text shown on them gives their precise meaning. Keep the pictorials clean. Replace them when they are faded.
Page 11 - 9 -...
Page 12: Technical Specifications
A - MACHINES SHIPPED IN CRATES To facilitate shipping, the GF 6401 T is packed in a wooden crate with some disassembled parts. Also, on certain machines, the roll pins (L) (photo A) have not been driven in so that the side wings can be folded even further towards the inside, thus reducing the shipping width of these machines.
Page 13 - 11 -...
Page 14 There are two types of tines : a) Tines for rotors which turn to the left (counter clockwise) : the “KUHN” marking is found on the longest finger (see figure 3).
Page 15 - 13 -...
Page 16 ASSEMBLY INSTRUCTIONS 4. Assembling the transport wheel deflectors (photo 5) Fit the two preassembled deflectors (U) onto the axle (V) using 4 self-locking bolts (Z) (M 10 x 25) and 4 self-locking nuts (M 10). Fit the 2 triangulation bars (Y) to the axle holder and to the deflector (U) using 4 self-locking nuts (Z) (M 10 x 25) and 4 self-locking bolts (M 10).
Page 17 - 15 -...
Page 18 When unloading ‘container packed’ GF 6401 T, make sure the danger area is clear of people. To unload ‘container packed’ GF 6401 T a lifting device with a minimum lifting capacity of 2 tons needs to be used (hoist, crane etc…).
Page 19 - 17 -...
Page 20 - Remove the four mounting nuts and bolts (I) and detach the support (M) (photo G). - Glide the connecting frame (J) in its housing on the chassis (N) (photo H) and secure it using the 6 original mounting nuts and bolts ( ) (photo ) making sure the six conical spring washers are in the correct position (convex side against bolt head) (Torque to 22 daNm / 162 ft.Ibs).
Page 21 - 19 -...
Page 22 4 self locking screws (Y) (M12 X 30) (photo Q). Install the outer guards with the machine coupled to the tractor (see page 22) and folded in working position (see page 26). All assembly instructions relative to GF 6401 T shipped in crates, see pages 10 to 15, also apply to the GF 6401 T shipped ‘container packed’.
Page 23 - 21 -...
Page 24: Attachment To The Tractor
1. ATTACHMENT TO THE TRACTOR The GF 6401 T Gyrotedder can be fitted to all tractors equipped with a 3-point linkage. The lower link pins have a diameter of 22 and 28 mm for tractors with Cat. 1 and 2 linkages.
Page 25 - 23 -...
Page 26: Pto Shaft
ATTACHMENT 2. PTO SHAFT Connect the PTO shaft to the 540 rpm (min ) tractor drive (with the safety clutch fitted on the machine side). Make sure PTO length is correct : 1) When the PTO is in its maximum extended position, a minimum tube overlap of 300 mm (12") must be maintained.
Page 27 - 25 -...
Page 28: Working Position And Adjustments
Before placing the machine in the working position, move all persons away from the pivoting area of the transport wheels and the outer rotors. The GF 6401 T is fitted with 2 manoeuvring cords (photo 14) - the cord with the black handle (D1) controls the unfolding of the machine - the cord with the red capped handle (D2) controls the raising and lowering of the transport wheels (locks V - photos 13 and 15).
Page 29 - 27 -...
Page 30 - In general, whenever the GF 6401 T is working in difficult conditions, it is adviseable to select a lower gear. It is impossible to give accurate information on speeds which must be decided according to the crop being treated.
Page 31 - 29 -...
Page 32: Transport Position
In transport position never shift the tractor hydraulic distributor in floating position. NOTE : The GF 6401 T is equipped with a spare wheel attached behind the front left warning board (photo 24). The replacement of a punctured wheel necessitates use of a 24 mm spanner.
Page 33 - 31 -...
Page 34: Parking The Machine
(photo 25). If the machine is to be parked for a long time or if the GF 6401 T height needs to be reduced for storage (e.g. in winter),...
Page 35 - 33 -...
Page 36: Lubrication
LUBRICATION AND MAINTENANCE 1. Lubrication (photos 28 to 32) - The drive gearbox (7) is filled with SHELL ALVANIA WRO grease (capacity:0.650 kg). - The recommended greasing intervals are based on normal field and work conditions. Severe or unusual conditions may require more frequent lubrication.
Page 37 - 35 -...
Page 38: Optional Equipment
Duplex reduction gearbox (Kit no. 112 6130) A “Duplex” reduction gearbox for the GF 6401 T can be supplied as an optional extra when using the machine for raking night swaths. With this gearbox, the high rotor speed (rotational frequency) necessary for tedding is maintained and there is also a lower rotor speed (rotational frequency) for raking night swaths.
Page 39 - 37 -...
Page 40: Electrical Connector (For North America)
ELECTRICAL CONNECTOR (for North America) KUHN wiring harnesses are supplied with an ISO (International Standards Organization) 1724 plug connector.If the implement is to be operated with a tractor equipped with an SAE style seven-pin connector a SA J 560b plug must be installed.
Page 41 SOUND LEVELS Sound levels given out by : GF 6401 T Gyrotedder Sound levels have been measured in accordance with the measuring methods as defined in: EN 1553 << Agricultural machinery - Agricultural self-propelled, mounted, semi-mounted and trailed machi- nes - Common safety requirements >>...
Page 42 1. Normal maintenance such as greasing, maintenance of oil levels, minor adjustments, etc. 2. Transportation of any kind of any KUHN product to and from the place the warranty work is performed. 3. Dealer travel time to and from the machine or to deliver and return the machine from the workshop for repair.
Page 43 Company and have no right or authority to assume any obligation on their behalf, express implied, or to bind them in any way. KUHN S.A. reserves the right to incorporate any change in design in its products without obligation to make such changes on units previously manufactured.
Page 44 - N O T E S -...
Page 45 This machine complies with the safety requirements of the European machinery directive. The Operator should respect all Health and Safety regulations as well as the Highway Code. For your own safety, use only genuine KUHN spare parts. The manufacturer disclaims all responsibilities due to incorrect use or non-compliance with the...
Page 46 KUHN parts KUHN S.A. 4 Impasse des Fabriques F - 67706 SAVERNE CEDEX (FRANCE) Tél. : + 33 (0) 3 88 01 81 00 - Fax : + 33 (0) 3 88 01 81 03 www.kuhnsa.com - E-mail : info@kuhnsa.com...
