KUHN GF5001 THA Operator's Manual

Gyrotedder
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL
Gyrotedder
KN090AGB B
- English - 10-2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GF5001 THA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KUHN GF5001 THA

Summary of Contents for KUHN GF5001 THA

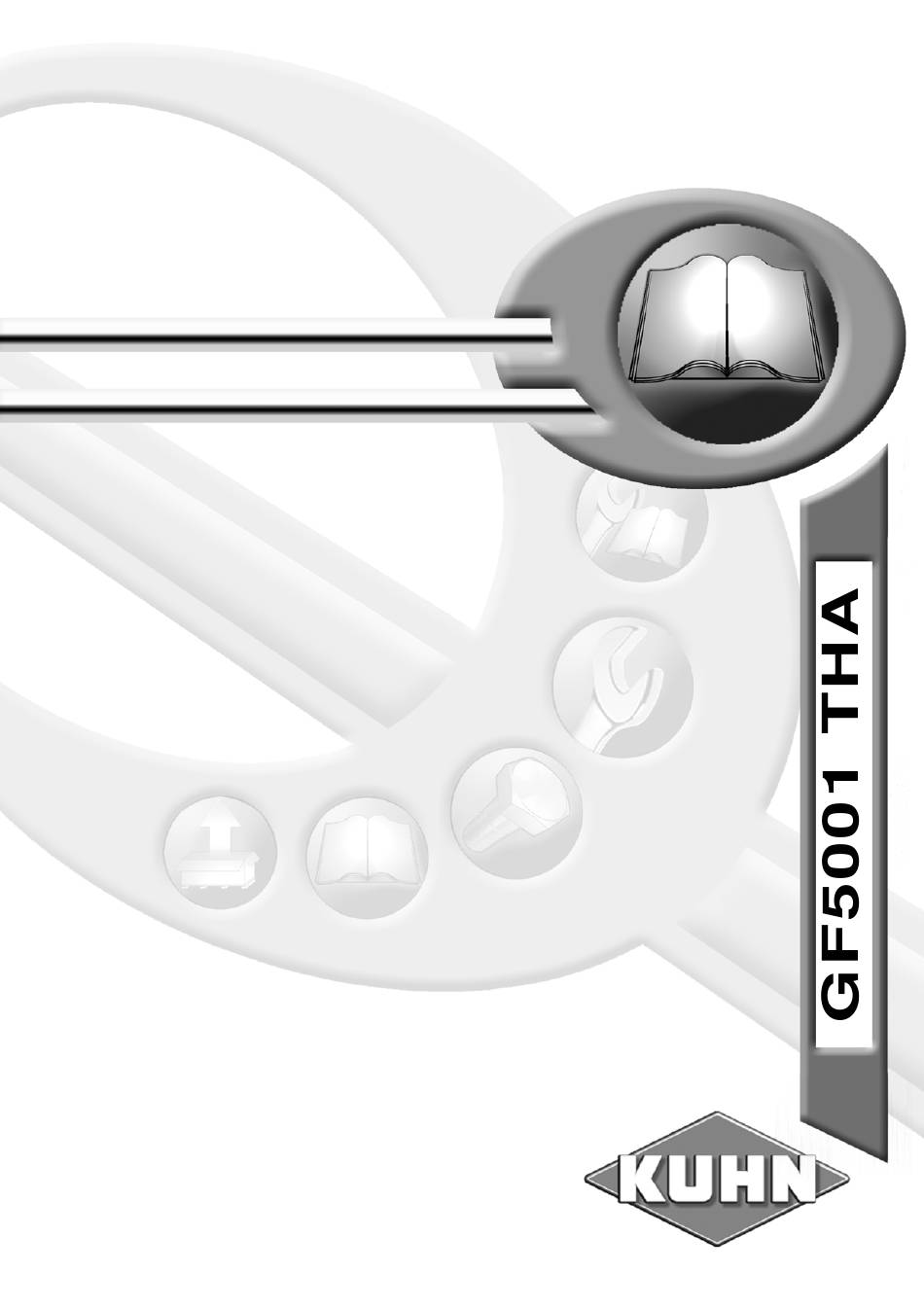

  • Page 1 OPERATOR'S MANUAL Gyrotedder KN090AGB B - English - 10-2005...

  • Page 3: Dear Owner

    Designated use of the machine The GF5001 THA gyrotedder must only be used for the purpose for which it was manufactured: spreading and tedding previously cut forage or straw. It can also be used to form small windrows in order to limit the exposure of crop to dew at night.

  • Page 4: Table Of Contents

    Gyrotedder GF5001 THA $CONTENTS Dear Owner........................1 Contents ......................... 2 Identification of the machine ..................4 Front view (transport position)....................... 4 Front view (working position)......................4 Model identification plate........................ 5 Safety ..........................6 Description of symbols used in this document ................6 Safety instructions...........................
  • Page 5 Gyrotedder GF5001 THA Instructions for work....................32 Putting the machine into work position ..................32 Adjustments in working position ....................34 Machine use ........................... 35 Maintenance and storage ....................39 Frequency chart..........................39 Lubrication ............................. 40 Maintenance ........................... 44 Storage ............................46 Limited warranty......................47...

  • Page 6: Identification Of The Machine

    Gyrotedder GF5001 THA $IDENTIFICATION OF THE MACHINE 1. Front view (transport position) 2. Front view (working position) Identification of the machine...

  • Page 7: Model Identification Plate

    Gyrotedder GF5001 THA 3. Model identification plate Please write below the type and serial number of the machine. This information is to be indicated to the dealer for all spare parts orders. GF5001 THA Type: Serial no.: 4. Optional equipment Kit no.

  • Page 8: Safety

    Gyrotedder GF5001 THA $SAFETY 1. Description of symbols used in this document This symbol indicates a potentially hazardous situation that if not avoided, could result in serious bodily injury. This symbol is used to identify special instructions or procedures which, if not followed strictly, could result in machinery damage.

  • Page 9: Safety Instructions

    Never let anyone operate the machine who is not trained to do so. Should you have any difficulties in understanding certain parts in this manual, please contact your KUHN dealer. Precautions to be taken before carrying out any operations on the machine...
  • Page 10 Gyrotedder GF5001 THA Precautions to take before using the machine Do not wear loose clothing which could become caught up in moving parts. Wear the appropriate protective clothing for the work in hand (gloves, shoes, goggles, helmet, ear-protectors, etc.). Ensure that all operating controls (ropes, cables, rods, etc) are placed so as they cannot be operated unintentionally and cause damage or injury.
  • Page 11 Gyrotedder GF5001 THA Precautions when driving on public roads Dimensions Depending on the dimensions of the machine, contact the relevant authorities to ensure that it can be legally transported on public roads. If the machine is over the maximum legal size, follow the local regulations for special transportation of oversize equipment.
  • Page 12 Gyrotedder GF5001 THA Precautions when coupling Before attaching the machine, make sure that it cannot accidentally start moving (chock the wheels) and that the parking stand is in the right position. The machine must only be attached to the hitch points provided for this purpose.
  • Page 13 Gyrotedder GF5001 THA PTO shaft Use only PTO shafts supplied with the machine or recommended by the manufacturer. The protective shield of the tractor PTO stub, the PTO shaft guards and the protective covering of the machine input shaft must always be in place and in good condition.
  • Page 14 Gyrotedder GF5001 THA Precautions during manoeuvres When moving the machine from the transport position to the working position and vice versa, make sure that nobody is within the machine pivoting area. Remote controlled components Danger of crushing and shearing can exist when components are operated by hydraulic or pneumatic controls.
  • Page 15 For your own safety and for correct machine operation, only use original manufacturer parts. It is strongly recommended to have your machine checked by your Kuhn dealer after each season, especially tools and their attaching hardware (nuts, bolts, etc.). Projection of stones and foreign objects For driver safety, always use a tractor equipped with a cab.
  • Page 16 Gyrotedder GF5001 THA Precautions for machine use Before using the machine, check tools (tines) and their attachment hardware in accordance with the instructions of the present manual. Check the guards regularly. Immediately replace any damaged or missing elements. Before engaging the pto drive, lower the rotors onto the ground.

  • Page 17: Location And Description Of Safety Decals On The Machine

    Gyrotedder GF5001 THA 3. Location and description of safety decals on the machine Location of safety decals Safety...
  • Page 18 Gyrotedder GF5001 THA Description of safety decals Operating instructions (1) The operators' manual contains all the information necessary for using the machine safely. It is imperative to read and comply with all instructions. Working on the machine (2) Before leaving...
  • Page 19 Gyrotedder GF5001 THA Body crushing (5) Stay a safe distance from the machine. Crushing hazard. Guard position (6) Before uncoupling the machine, lower rear parking stand and pivot outer guards rearwards. Safety...

  • Page 20: Road Safety Equipment And Recommendations

    4. Road safety equipment and recommendations The road safety equipment is mounted in the factory or by your authorized Kuhn dealer according to current safety regulations. Always keep to the legal speed limit for driving a tractor-machine assembly on public roads.

  • Page 21: Machine Specifications

    Gyrotedder GF5001 THA $MACHINE SPECIFICATIONS 1. Description and glossary Drawbar Hitch pin Front parking stand Front guards Outer guards Transport position cylinders Pitch angle adjustment handle Outer wings Rear parking stand 10 : Central gearbox 11 : Drive shaft support...

  • Page 22: Technical Specifications

    Gyrotedder GF5001 THA 2. Technical specifications Attachment type Drawbar attached to the tractor pull bar Number of rotors Number of tine arms per rotor Working width (DIN11220) 5.00 m (16’5’’) Width in working position 5.43 m (17’10’’) Length in working position 2.31 m (7’7’’)

  • Page 23: Putting Into Service

    Gyrotedder GF5001 THA $PUTTING INTO SERVICE 1. Description of control elements The machine is equipped with: - 1 outer wing release cord accessible from the tractor cab. - 1 hydraulic hose with two position valve for drawbar and outer wing manoeuvres.
  • Page 24 Gyrotedder GF5001 THA Preparing the machine Adjust drawbar height using the parking stand crank handle according to the height of the pull bar. Coupling the machine Couple machine to tractor and secure hitch pin. Safety chain The machine is supplied with a ANSI/ASAE safety chain type with a minimum ultimate system strength of 45 kN (10100 lbf).
  • Page 25 Gyrotedder GF5001 THA Retract parking stands Front parking stand: Remove specific pin. (Pin with automatic locking mechanism). Remove and place parking stand in its holder (1). Lock parking stand using specific pin. Rear parking stand: Remove R-clip and lift parking stand.
  • Page 26 Gyrotedder GF5001 THA Hydraulic connection Connect hydraulic hose (1) to a single acting outlet. Position a: Circuit open. Position b: Circuit closed. Putting into service...
  • Page 27 Gyrotedder GF5001 THA PTO shaft Make sure that the PTO shaft is correctly adjusted, to avoid premature wear and tear. The tractor PTO stub must rotate at a speed of 540 min Separate the two half PTO shafts and connect them to...
  • Page 28 Gyrotedder GF5001 THA To avoid serious accidents, the PTO drive shaft guards must be properly in place and fixed with the chains provided. On the machine side, attach PTO shaft guard chain around the drawbar. Immediately replace any worn or damaged guard.
  • Page 29 Gyrotedder GF5001 THA Uncoupling the machine Park the machine on an even fairly level ground. From the transport position: - The machine is fitted with front and rear parking stands. - Rear parking stand positioning: • Remove R-clip. • Fully lower parking stand.
  • Page 30 Gyrotedder GF5001 THA - Disconnect and place hydraulic hose coupler in its support (1). - Remove hitch pin. - Move forward with the tractor. The machine is uncoupled. When parking the machine for a long time in transport position, release levelling cylinder pressure in order to tip the machine frontwards.

  • Page 31: Instructions For Transport

    Gyrotedder GF5001 THA $INSTRUCTIONS FOR TRANSPORT Before placing the machine into transport position: - Wait until the rotating parts have come to a complete stop. - Check that nobody is within the machine pivoting area. - If there is someone, make sure the person moves away.
  • Page 32 Gyrotedder GF5001 THA - Lower rotor pivot lock (1). - Pivot rotor by 180 degrees. Check that the rotor pivot lock is fully engaged. - Repeat procedure on second rotor. The machine is in transport position. Never engage the tractor PTO drive when the machine is in transport position.

  • Page 33: Conformity With The Road Regulations

    Gyrotedder GF5001 THA 2. Conformity with the road regulations Before driving the machine on public roads, ensure that the machine complies with current highway code regulations. Never tow the machine at a speed exceeding 25 km/h (15.5 mph). Check that reflectors are clean.

  • Page 34: Instructions For Work

    Gyrotedder GF5001 THA $INSTRUCTIONS FOR WORK Before placing the machine in working position: - Check that nobody is within the machine pivoting area. - If there is someone, make sure the person moves away. 1. Putting the machine into work...
  • Page 35 Gyrotedder GF5001 THA - Open hydraulic hose valve. Position a: Circuit open. Position b: Circuit closed. - Activate transport position cylinders to release stop pins. - Pull release cord until stop pins are released. - Activate rotor lift cylinder in the opposite direction: •...

  • Page 36: Adjustments In Working Position

    Gyrotedder GF5001 THA 3. Adjustments in working position Before adjusting, maintaining or repairing the machine, turn off ignition key and wait until all moving parts have come to a complete stop. Adjust pitch angle using adjustment crank so that the tines slightly brush the soil (1).

  • Page 37: Machine Use

    Gyrotedder GF5001 THA 4. Machine use The machine can turn at 180° without loosing working width or time. The following drawing shows one way of using the machine. Preferably take large headland turns. Groundspeed The following factors determine the forward speed: - The humidity level (This factor is particularly determining when wilting).
  • Page 38 Gyrotedder GF5001 THA $OPTIONAL EQUIPMENT 1. DUPLEX gearbox Part no. 1116440 The DUPLEX gearbox enables forming night windrows by reducing the rotor rotation speed or maintaining the high rotation speeds necessary for tedding. Fitting Fit guard. Tightening torque: 2.5 daN m (18.43 lbf ft).
  • Page 39 Gyrotedder GF5001 THA Fit DUPLEX Gearbox (1) onto shaft (2). Place the 2 spacers(1). Reinstall bolts washers. Tightening torque: 8.6 daN m (63 lbf ft). Fit retaining ring (2) on central gearbox drive shaft. To tedd: - Connect PTO shaft to the central gearbox input shaft.
  • Page 40 Gyrotedder GF5001 THA For forming night windrows: - Connect PTO shaft to the DUPLEX gearbox input shaft. - Fit PTO cover inside the guard to protect the non used pto stub. Optional equipment...

  • Page 41: Maintenance And Storage

    Gyrotedder GF5001 THA $MAINTENANCE AND STORAGE Before carrying out any maintenance or repairs on the machine, switch off the tractor engine, remove ignition key, wait until all moving parts have come to a standstill and apply park brake. Check that hydraulic hose valves are shut- off.

  • Page 42: Lubrication

    Gyrotedder GF5001 THA After the Every 200 first 10 Once per Every 50 hours or at hours of week hours the end of the season - The front parking stand. - The rotor housings. Level control: - Central gearbox 2. Lubrication The pictorials show the points to be greased (Part no.
  • Page 43 Gyrotedder GF5001 THA PTO shaft - Every 8 hours: • U-joints (1). - Every 20 hours: • transmission tube (2). - Every 40 hours: • guide rings (3). Oil with SHELL SAE 90 gear oil. The outer wing hydraulic cylinder pivot pins.
  • Page 44 Gyrotedder GF5001 THA The "DIGIDRIVE" coupling fingers. The pitch angle adjustment handle and its pivot pin. The rotor hubs. The rotor housings. The front parking stand. Maintenance and storage...
  • Page 45 Gyrotedder GF5001 THA Level control Central gearbox The central gearbox is lubricated with 0.8 kg (1.76 lb) kg of SHELL multi-purpose grease grade NLGI2. Check the main gearbox oil content: From the working position: - Remove 4 bolts (1). - Remove cover (2).

  • Page 46: Maintenance

    Gyrotedder GF5001 THA 3. Maintenance Check Tightness of all bolts and nuts. Replacing a tine Before leaving tractor before adjusting, maintaining or repairing the machine, disengage the PTO drive, turn off the engine, remove ignition key and wait until all moving parts have come to a complete stop and apply park brake.
  • Page 47 Gyrotedder GF5001 THA Respect mounting instructions so that the crop's pressure (a) closes the coils. - Replace tine. Check attachment bolt, washer and nut. Replace if necessary. - Reassemble the unit. Check that the tine is properly embedded in the tine arm.

  • Page 48: Storage

    Gyrotedder GF5001 THA 4. Storage At the end of each season: - Clean the machine thoroughly. - Fully lubricate the machine. - Check tyre pressure: • 2.0 bar (29 psi). - Touch up any areas of damaged paintwork. - Check and replace worn or damaged tines.

  • Page 49: Limited Warranty

    Gyrotedder GF5001 THA $LIMITED WARRANTY Limited warranty...
  • Page 50 Gyrotedder GF5001 THA Limited warranty...
