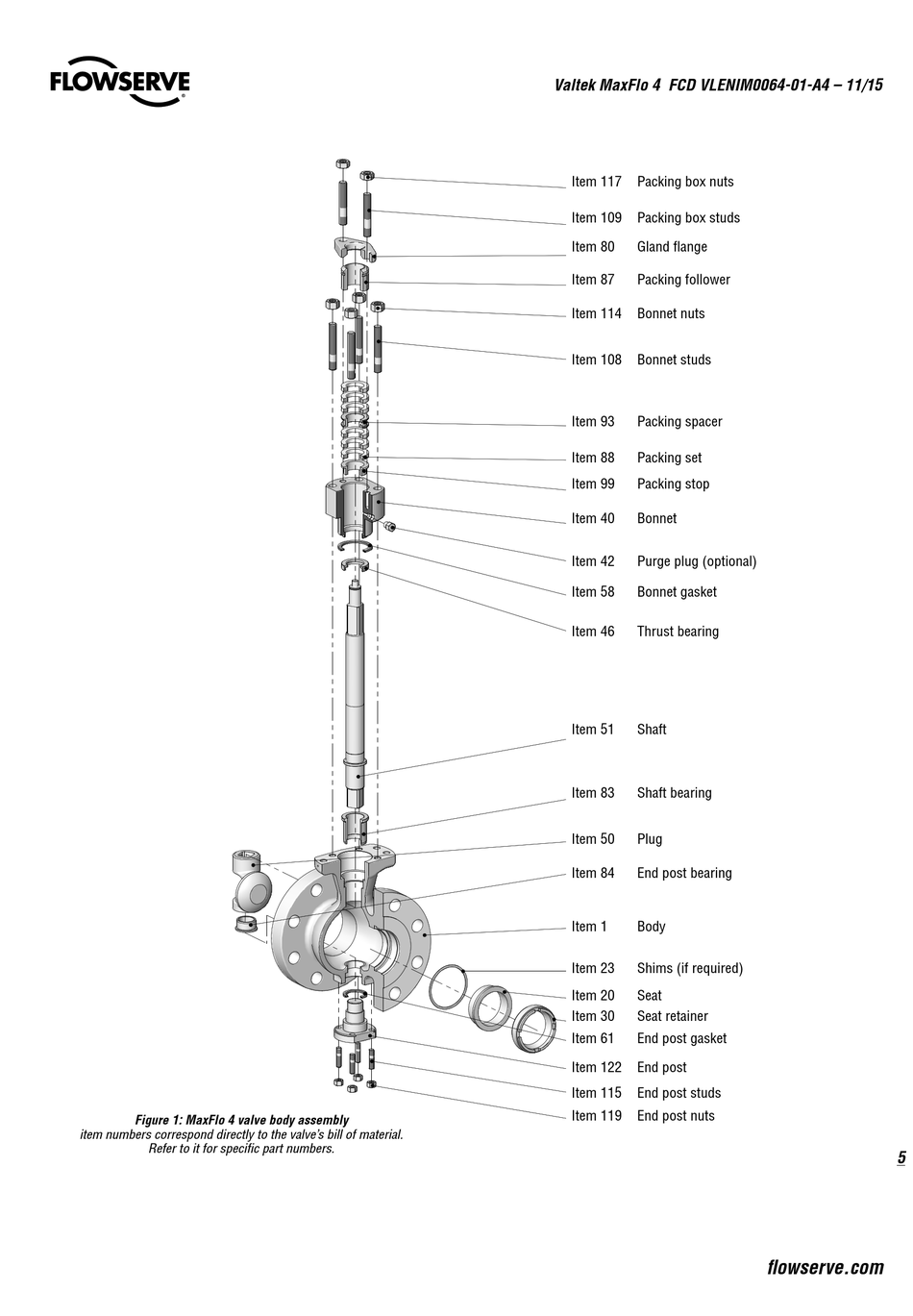

Figure 1: MaxFlo 4 valve body assembly
item numbers correspond directly to the valve's bill of material.
Refer to it for specific part numbers.
Valtek MaxFlo 4 FCD VLENIM0064-01-A4 – 11/15
Item 117
Packing box nuts
Item 109
Packing box studs
Item 80
Gland flange
Item 87
Packing follower
Item 114
Bonnet nuts
Item 108
Bonnet studs
Item 93
Packing spacer
Item 88
Packing set
Item 99
Packing stop
Item 40
Bonnet
Item 42
Purge plug (optional)
Item 58
Bonnet gasket
Item 46
Thrust bearing
Item 51
Shaft
Item 83
Shaft bearing
Item 50
Plug
Item 84
End post bearing
Item 1
Body
Item 23
Shims (if required)
Item 20
Seat
Item 30
Seat retainer
Item 61
End post gasket
Item 122
End post
Item 115
End post studs
Item 119
End post nuts
5
