Getting Started

POWER-UP DISPLAY

Verify that the power up display for the program card or cartridge is correct. If the display is correct, follow
the instructions in the program card or cartridge operator's manual.

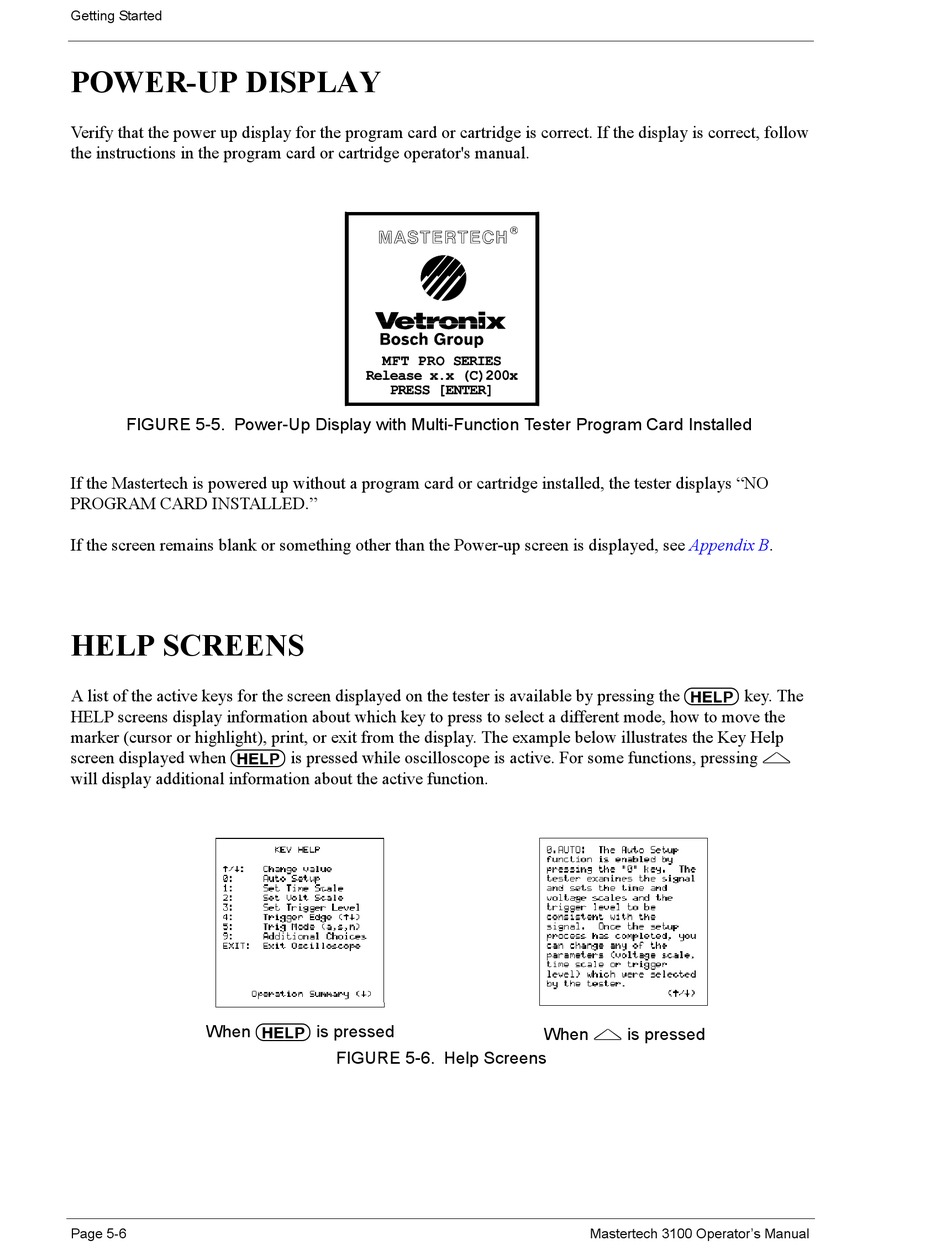

FIGURE 5-5. Power-Up Display with Multi-Function Tester Program Card Installed
If the Mastertech is powered up without a program card or cartridge installed, the tester displays "NO
PROGRAM CARD INSTALLED."
If the screen remains blank or something other than the Power-up screen is displayed, see Appendix B.

HELP SCREENS

A list of the active keys for the screen displayed on the tester is available by pressing the H key. The
HELP screens display information about which key to press to select a different mode, how to move the
marker (cursor or highlight), print, or exit from the display. The example below illustrates the Key Help
screen displayed when H is pressed while oscilloscope is active. For some functions, pressing U
will display additional information about the active function.
When H is pressed
When U is pressed
FIGURE 5-6. Help Screens
Page 5-6 Mastertech 3100 Operator's Manual
