Mastertech Kit Components
PRINTER
When the tester is connected to a compatible serial printer, such as the optional VP-411/VP-414, the
following functions are available:
• Print diagnostic parameters
• Print trouble codes
• Print test results
• Print display information (including bar graphs and plots)
TESTER
Page 3-12
VP-411 / VP-414
PRINTER

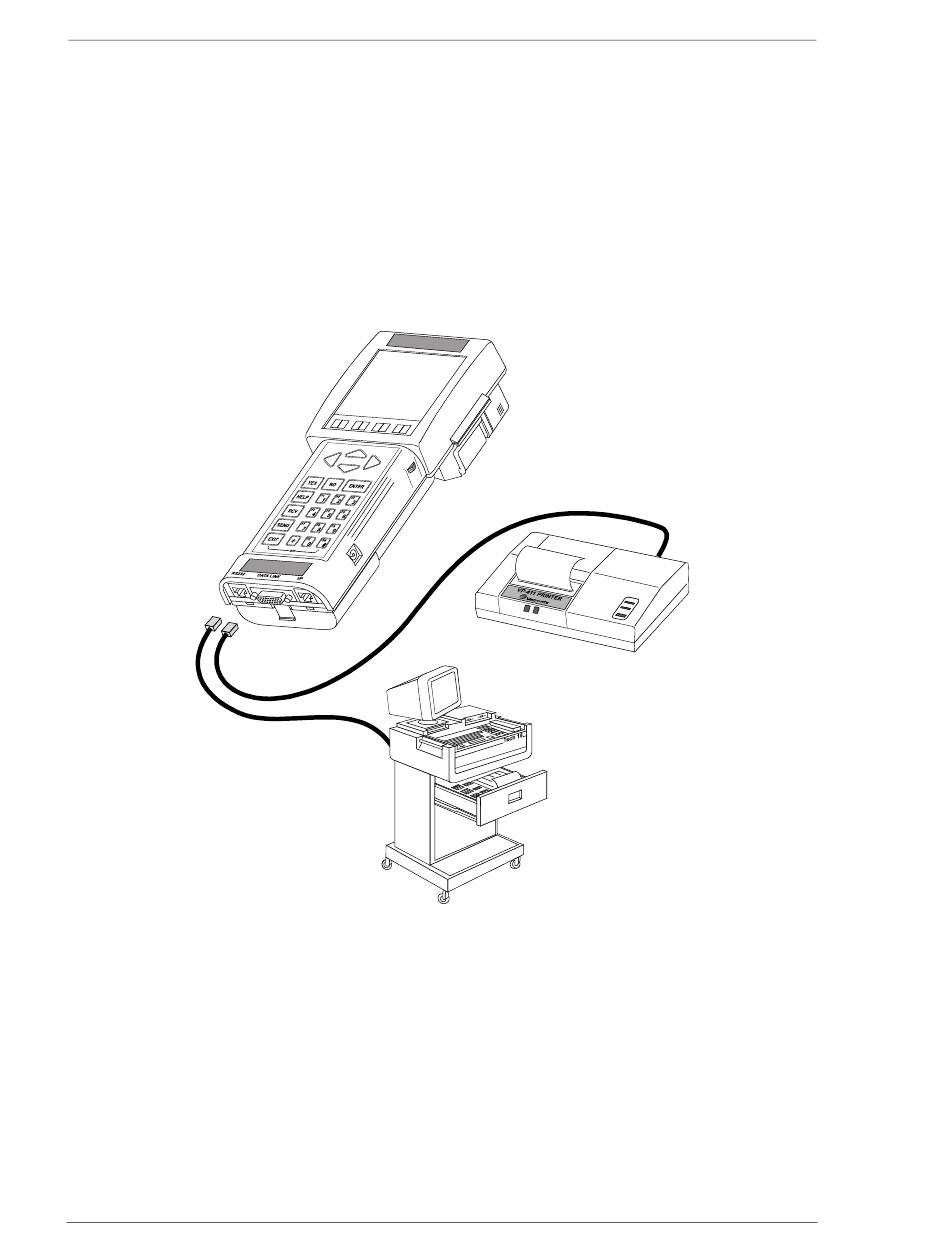

FIGURE 3-9. RS232 Port Devices
REMOTE
HOST COMPUTER
Mastertech 3100 Operator's Manual
