- Page 1 OWNER’S GUIDE ® HYDROTECH ADVANCED REVERSE OSMOSIS WATER TREATMENT SYSTEMS 102 SERIES 101 SERIES THIN FILM COMPOSITE MEMBRANE 103 SERIES THIN FILM COMPOSITE MEMBRANE CELLULOSE TRIACETATE MEMBRANE Hydrotech, Inc. 25555 West Avenue Stanford, Valencia, CA 91355 Phone (661) 294-8888 Fax (661) 294-8880...
- Page 2 104** ® Example: 4 vessel, Chemical/Mechanical Reduction, 25 GPD, Faucet Smartap , Polymer Faucet, NSF Listed is Model Number 10105102 ‡ 101 SERIES ONLY PRODUCTION AND RECOVERY RATES – 101 AND 103 SERIES * System Tested and Certified by NSF International against ANSI/NSF 58 as detailed on Performance Data Sheet...
-
Page 3: Options And Accessories
NOTE: Contaminant Reduction Performance is not applicable to 102 Series (Systems are not available in California). * Applicable to 101 Series only. This system shall be used for arsenic reduction on chlorinated water supplies containing detectable residual free chlorine at the system inlet. Water systems using an in-line chlorinator should provide a one minute chlorine contact time before th RO system. - Page 4 Tubing, 1/4" x 48" Red 20300015 n/s** n/s** Screw, Mounting Bracket (2 each) 32701002 Screw, Mounting Bracket (2 each) 32701002 Performance Data Sheet (101 Series NSF n/s** Owner’s Guide, 101, 102, and 103 Series 36101005 n/s** 36101105 Listed) Performance Data Sheet (103 Series NSF...
- Page 5 READ THIS ENTIRE INSTALLATION AND SERVICE GUIDE BEFORE BEGINNING INSTALLATION ® Hydrotech 101 and 103 Series Reverse Osmosis (RO) Drinking Water Treatment Systems have been designed for ease of installation and serviceability. They are constructed with the finest materials available.
- Page 6 ® SMARTAP WATER QUALITY MONITOR ® Hydrotech 101, 102, and 103 Series Reverse Osmosis Systems incorporate a proven performance indicator. Our patented ® Smartap Water Quality Monitor uses dual probe LOGIC PULSE MEMORY technology to accurately indicate membrane performance. A split-second power pulse compares feed water Total Dissolved Solids (TDS) level with that of the product water.
- Page 7 SADDLE TAPPING VALVE INSTALLATION ON COPPER TUBE NOTE: State and local plumbing codes may prohibit use of saddle tapping valves. An Inlet Adapter Valve Assembly (P/N 42500004) is available as an alternate installation (See Page 5). 1. Locate shut off valves on water lines under sink. To 4.
- Page 8 SADDLE TAPPING VALVE INSTALLATION ON THICK WALL PIPE NOTE: State and local plumbing codes may prohibit use of saddle tapping valves. An Inlet Adapter Valve Assembly (P/N 42500004) is available as an alternate installation (See Page 5). 1. Locate and shut off source water supply line (see 4.
- Page 9 INLET ADAPTER VALVE INSTALLATION NOTE: This assembly is offered as an optional installation method. Make sure it is approved for use under State and local plumbing codes before ordering kit (P/N 42500004). NOTE: Use this assembly on U.S.N.P.T.* pipe thread fittings only. CAUTION: DO NOT INSTALL FEED WATER ASSEMBLY ON HOT WATER LINE.
- Page 10 DRAIN OUTLET ASSEMBLY INSTALLATION NOTE: State and local plumbing codes may prohibit use of saddle tapping drain connections. NOTE: Location and orientation of drain outlet assembly is vital to system performance. Horizontal Drain Line: Vertical Drain Line: Locate drain hole as close as possible to top of pipe Locate drain hole on a straight length of drainpipe next to (between 45º...
- Page 11 PRODUCT WATER FAUCET SITE PREPARATION Refer to Faucet Installation Instructions (Pages 8 & 10) for site location and mounting hole specifications. Primary considerations for site selection are convenience of use and an open area under sink. Always check underside of selected location for obstructions. STAINLESS STEEL SINK PORCELAIN/ENAMEL OVER STEEL OR CAST IRON SINKS...
- Page 12 PRODUCT WATER FAUCET INSTALLATION - STAINLESS STEEL OR CHROME FAUCET Install faucet on flat surface at least 2" in diameter. Unused 1 1/4" hole is ideal. Steps unique to a specific configuration are so noted. All other steps are common to either configuration. New Faucet Installation 5.
- Page 13 A + B Chrome Faucet with Light Bar 11701001 C + D Stainless Steel Faucet with Light Bar 11701002 Item Description Part No. Item Description Part No. Chrome Faucet 40301001 Stainless Steel Faucet 40301004 Handle, Faucet 35902032 Handle, Faucet 35902032 Body, Faucet - Chrome 35902003 Body, Faucet - Stainless Steel...
- Page 14 PRODUCT WATER FAUCET INSTALLATION - POLYMER FAUCET Install on flat surface at least 2 7/16" in diameter. Unused 1 1/4"- 1 7/16" opening is ideal. NOTE: Item callouts in Step 5 refer to Page 11, Figure New Faucet Installation Refer to Faucet Site Preparation, Page 7. 5.
- Page 15 Item Description Part No. Item Description Part No. 2080050* Screw, Bearing 32701022 Cover, Knob - Color 3580050* Cover, Knob - Plated Bearing 20800101 32701021 Screw, Knob Air Gap Assembly 40303800 2080090* ‡ Knob, Faucet Body Assembly 403039 2081700* Cover, Body - Color Gasket, Sink 20819001 3581700*...
- Page 16 ® Faucet Smartap Monitor Inlet Valve and Magnet Assemblies ® Faucet Smartap Monitor Module Cover and Sending Unit Assemblies Figure 12 Exploded Schematic , 101 Series Four Vessel Manifold Module - 12 -...
- Page 17 Item Description Part No. Cover, 4-vessel Manifold – Pushbutton 42100002 Cover, 3-vessel Manifold – Pushbutton 42100001 Battery, 9-volt alkaline 31300001 ® 40200002 Monitor, Water Quality - Smartap Guard, Pushbutton 20500050 Pushbutton, Monitor 20500080 Bracket, Mounting 21100001 Screw, Mounting Bracket 32701002 Screw, Retaining Plate 32701001 Plate, Retaining - Inlet Valve Cover...
- Page 18 12.1L (3.2 GAL) CAPACITY STEEL - BLUE 12.1L (3.2 GAL) CAPACITY STEEL - WHITE [8.8 L (2.4 gal) usable capacity] [8.8 L (2.4 gal) usable capacity] Dimensions with fittings: 17” H x 11” D Dimensions with fittings: 17” H x 11” D Item Description Part No.
- Page 19 ACTIVATING THE SYSTEM NOTE: Make sure all water supply lines, drain lines, and fittings are secure and free from leakage. 1. Open source water supply valve. Close product NOTE: Close faucet immediately after light illuminates. water faucet. Check for leakage. Test is to confirm battery connection, not water 2.
- Page 20 *Color Suffix Codes EPChrome/Black = 0, White = 1, EPChrome/White = 2, Almond = 3, Black = 4, Chrome/Black = 5, Satin/Black = 6, Chrome/White = 7, Satin/White = 8 ® PARTS AND SERVICE AVAILABLE THROUGH YOUR HYDROTECH DEALER ROUTINE MAINTENANCE RECOMMENDATIONS HAVE ALL COMPONENTS ON HAND AND READY BEFORE BEGINNING PROCEDURE.
- Page 21 CLEANING, SANITIZING, AND CARTRIDGE REPLACEMENT PROCEDURE 1. Mix mild cleaning solution of dish soap and clean 8. Clean filter housings and manifold ports, inside and potable water in plastic bowl. outside, with washcloth and cleaning solution. Do not use abrasive materials. 2.
- Page 22 CLEANING, SANITIZING, AND CARTRIDGE REPLACEMENT PROCEDURE 18. Remove filter housings and dispose of water. Rinse 26. Carefully slide battery into its holder. filter housings and manifold ports thoroughly with clean potable water. NOTE: Use caution when reconnecting the battery (Figure 15). NOTE: Do not remove protective plastic bag from replacement filter and membrane cartridges.
- Page 23 Empty water from storage tank (product water valve must remain open while adjusting pressure) and adjust pressure to 55 kPa (8 psig). ® System does not shut off. Shut-off valve is not closing. Contact your Hydrotech Dealer. No drain water. Clogged Flow Control. Replace Flow Control.
- Page 24 NOTES - 20 -...
- Page 25 NOTES - 21 -...
- Page 26 INSTALLATION AND SERVICE RECORD DATE INSTALLED SYSTEM/MEMBRANE OUTPUT RATING LPD/GPD DATE SERVICED SERVICED BY COMPANY SERVICE PERFORMED ٱCLEANING ONLY ٱCLEANING & SANITIZING ٱREPAIR FILTERS REPLACED ٱSEDIMENT ٱCARBON (PRE) ٱMEMBRANE ٱCARBON (POST) COMMENTS DATE SERVICED SERVICED BY COMPANY SERVICE PERFORMED...
- Page 27 INSTALLATION AND SERVICE RECORD DATE INSTALLED SYSTEM/MEMBRANE OUTPUT RATING LPD/GPD DATE SERVICED SERVICED BY COMPANY SERVICE PERFORMED ٱCLEANING ONLY ٱCLEANING & SANITIZING ٱREPAIR FILTERS REPLACED ٱSEDIMENT ٱCARBON (PRE) ٱMEMBRANE ٱCARBON (POST) COMMENTS DATE SERVICED SERVICED BY COMPANY SERVICE PERFORMED...
-
Page 28: Limited Warranty
® ® Hydrotech specifications. If the drinking water system is altered by anyone other than Hydrotech warranty shall be void. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THE PERIOD SPECIFIED ABOVE FOR THE PARTS DESCRIBED IN THIS LIMITED WARRANTY.
Need help?
Do you have a question about the 101 Series and is the answer not in the manual?
Questions and answers

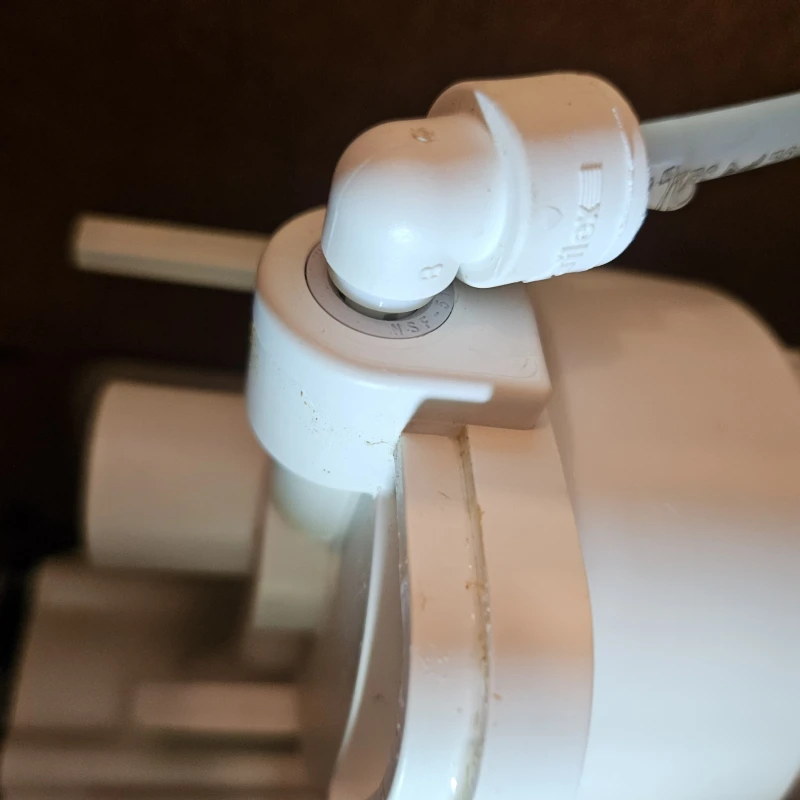

I have a hydrotech model # 10105001. There's a leak where the small hose enters the first canister. Is there a replacement part I could order?
