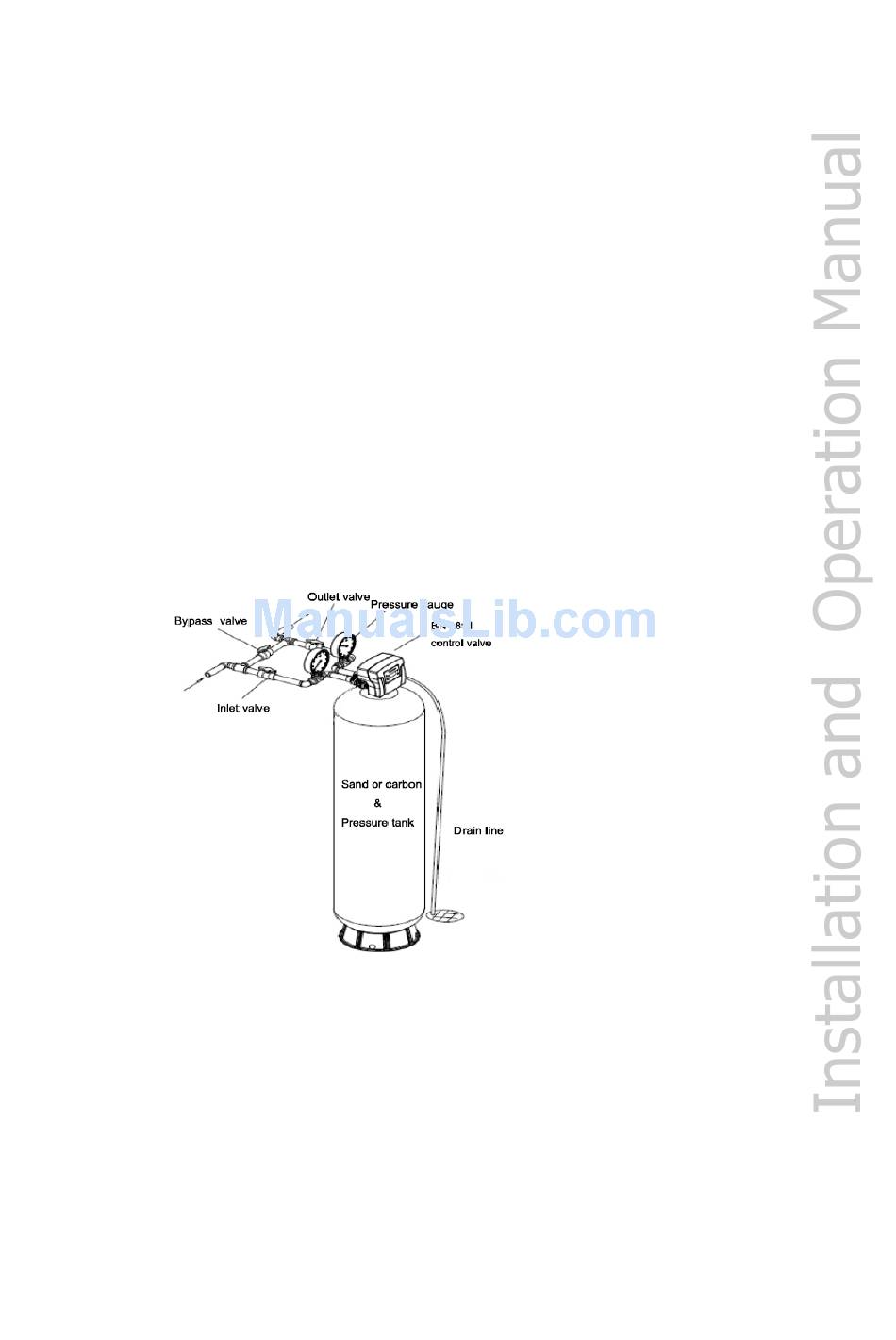

IMPORTANT—PLEASE REFER TO THE PICTURE BELOW ON INLET/OUTLET SIDE OF THE
VALVE
1. Read all instructions carefully before operation.
2. Avoid pinched o-rings during installation by applying (provided with install kit) NSF certified
lubricant to all seals.
3. This system is not intended for treating water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
REVISION #
0
REVISION DATE May 4,2015
#54580
89 Valve Birm Water Filters
Canadian Head Office
655 Park St.
Regina, SK S4N 5N1
U.S. Head Office
8437 10th Avenue North
Golden Valley, MN 55427

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 89BM-75 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydrotech 89BM-75

Summary of Contents for Hydrotech 89BM-75

  • Page 1 89 Valve Birm Water Filters IMPORTANT—PLEASE REFER TO THE PICTURE BELOW ON INLET/OUTLET SIDE OF THE VALVE 1. Read all instructions carefully before operation. 2. Avoid pinched o-rings during installation by applying (provided with install kit) NSF certified lubricant to all seals. 3.

  • Page 2: Table Of Contents

    Table of Contents PAGE Unpacking / Inspection Safety Guide Proper Installation Specification Before Starting Installation Sizing Requirements Installation Instructions System Start Up About The System Maintenance Main Repair Parts Trouble Shooting Warranty Unpacking / Inspection Be sure to check the entire unit for any shipping damage or parts loss. Also note damage to the shipping cartons.

  • Page 3: Proper Installation

    Proper Installation This water filter system must be properly installed and located in accordance with the Installation Instructions before it is used. • Do not install or store where it will not be sweat-solder connections, as required by exposed to temperatures below freezing or state and federal codes.

  • Page 4: Specification

    Specifications Specifications 585MM-75 585MM-100 585MM-150 585MM-200 585MM-300 89BM-75 89BM-100 89BM-150 89BM-200 89BM-300 Service Flow Rates Normal 4.0 gpm 5.0 gpm 7.0 gpm 10.0 gpm 12.0 gpm Peak 5.0 gpm 7.0 gpm 10.0 gpm 12.0 gpm 15.0 gpm Micron Rating 15-20 micron...

  • Page 5: Before Starting Installation

    Birm Filter A backwashing-type filter containing special media that causes the iron in the air-injected water to precipitate throughout the filter bed This process produces an iron removal ca- pacity of up to 30,000 ppm. The media re- quires no chemical regenerant for oxygen enrichment.
  • Page 6 Where To Install The Filter • Place the filter tank as close as possible to ter damage. • the pressure tank (well system) or water A 120 volt electric outlet, to plug the in- meter (city water). cluded transformer into, is needed within 6 •...

  • Page 7: Sizing Requirements

    Sizing Requirements Water Pressure The water system must have a pump big enough to deliver the recommended backwash rate with a minimum pressure at the inlet of the filter of 30 psi. If the existing system can- not do this, it must be upgraded to do so. Whenever possible, the water system should be adjusted to deliver at least 30 psi for even more satisfactory results.

  • Page 8: Installation Instructions

    Installation Instructions 1. If your hot water tank is electric, turn off the power to it to avoid damage to the element in the tank. 2. If you have a private well, turn the power off to the pump and then shut off the main wa- ter shut off valve.
  • Page 9 Filter Installation...

  • Page 10: Maintenance

    Maintenance Maintenance of your new water filter requires very little time or effort but it is essential. Regular maintenance will ensure many years of efficient and trouble-free operation. 1. Periodically make sure your pump is performing satisfactorily to ensure sufficient water is available for backwashing the filter.
  • Page 11 Loading the Media Pak Place the distributor tube back down the center of the tank. NOTE: the top of this tube should be plugged with a rag or cork to prevent media from entering. Pour the bag of coarse gravel into the tank, and then pour the bag of fine gravel into the tank. It is important that the distributor tube is not moved or pulled out as it is not possible to put it down to the bottom of the tank once gravel or media are in the tank.

  • Page 12: Trouble Shooting

    Button Configuration MENU Flow Rate: 24.5 GPM 18-Apr-2015 10:35AM Remain: 1,280 GAL Capacity: 1,500 GAL Key Pad Configuration MENU This function is to enter the basic set up information required at the time of installation. This function is to accept the values if changed and advance to the next page in the menu. These buttons are used to increase or decrease the value of the settings while in the pro- + / - gramming mode.
  • Page 13 User Settings (Level I) Press MENU key. Press + or - to change menu option. Press SET to enter. Press + or - to change value. Press SET to accept. CAUTION: The values in this page are for illus- tration purpose and can be changed by the factory without notice.
  • Page 14 Manual Regeneration Press “■” key to initiate a manual regeneration, the regeneration steps will be different according to different valve type： • The regeneration steps of DOWN FLOW valve：backwash、brine +slow rinse、fast rinse、service +refill; • The regeneration steps of UP FLOW valve：brine +slow rinse、backwash、fast rinse、 service +refill;...
  • Page 15 It is also recommended to install the inlet and outlet pressure gauge and the inlet Y-type fil- ter； When the two knobs on the bypass valve is parallel, the inlet and outlet are open, this state of operation is “Service”； Rotate each of the two knobs in clockwise and anticlockwise respectively, when the knobs on the bypass is in one line, the inlet and outlet are both closed, this state of operation is “By-pass”.
  • Page 16 ： Parts list of Standard connection assembly Part description Part description Big O-ring of Adaptor 89 secure clip coupling Adaptor coupling of 89 89 valve connector control valve Small O-ring of adaptor Connector O-ring coupling...
  • Page 17 ： Parts list of control valve body Part description 89 valve body 95 secure clip DLFC assembly：optional 1S、2S、3S、4S、 1#、3#、4#、5#、6# Drain elbow O-ring Drain elbow： 1/2”、 3/4” Brine valve injector stem assembly Spacer and seal assembly Three options of piston Down flow piston Up flow piston Filter piston 16 17 18...
  • Page 18 Three options of piston Down flow piston Up flow piston Filter piston Piston retainer End plug Piston pin Piston rod End plug retainer End plug retainer screws Brine line adaptor assem- bly：optional BLFC： 0.7gpm BLFC：0.95gpm Injector assembly： optional grey、purple、red、 white、blue、yellow Injector cover O-ring Injector cover Injector cover screws...

  • Page 19: Warranty

    Warranty Canature Watergroup guarantees that your new water conditioner is built of quality ma- terial and workmanship. When properly installed and maintained, it will give years of trou- ble free service. Five Year Limited Warranty Canature WaterGroup will replace the salt tank or cabinet tank, the fibreglass mineral tank, the ion exchange resin, and valve parts provided the failure is due to a defect in material or workmanship and not the result of damage from any of the conditions described in the gen- eral conditions of this warranty.
