Rigging Manual
line array
EVENT-208A / EVENT-210A / EVENT-M210A / EVENT-218A
El colgado del equipo sólo debe realizarse
utilizando los herrajes de colgado
recomendados y por personal cualificado.
No cuelgue la caja de las asas.
The appliance should be flown only from
the rigging points and by qualified
personnel. Do not suspend the box from
the handles.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for D.A.S. EVENT-208A
Summary of Contents for D.A.S. EVENT-208A

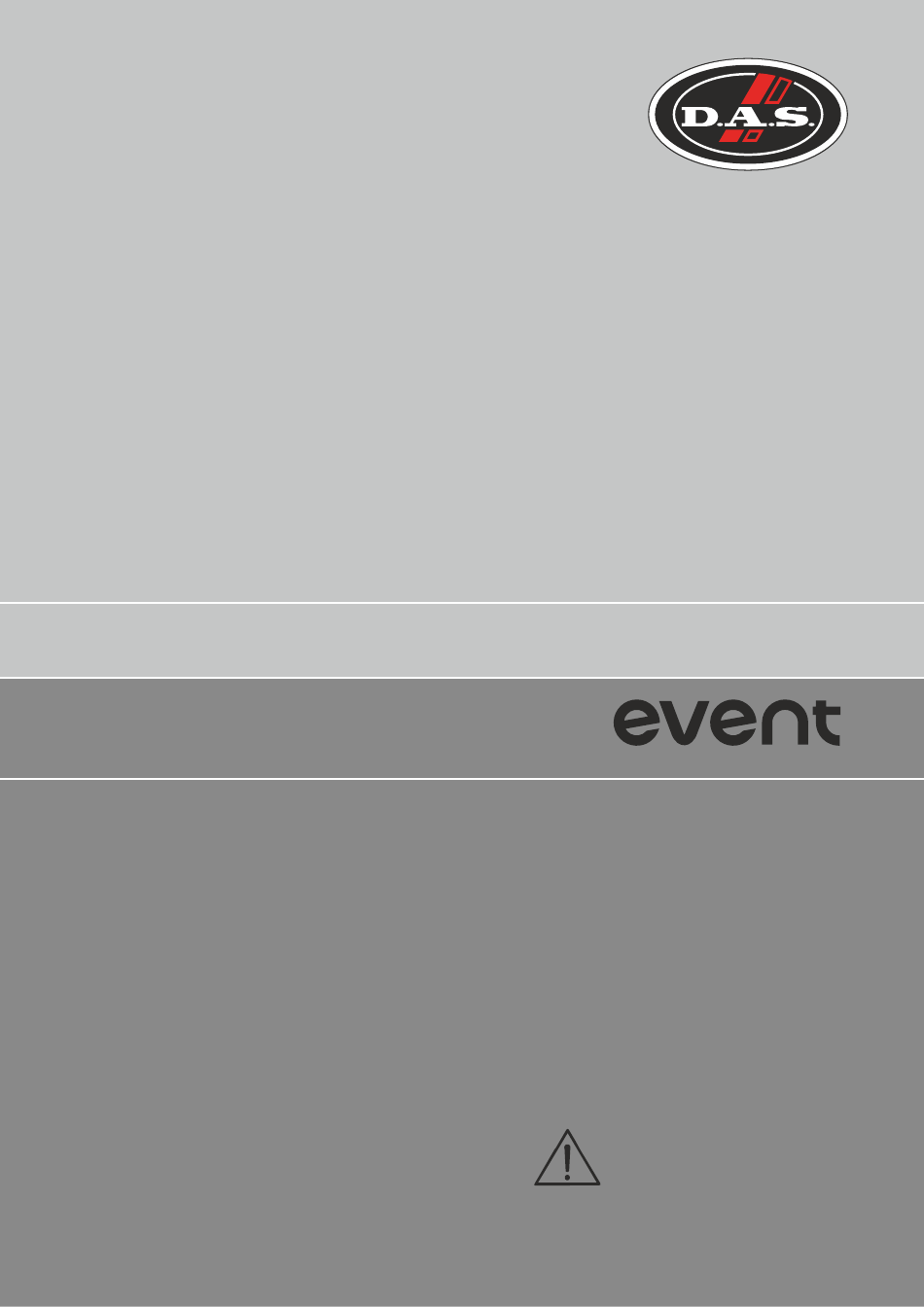

- Page 1 Rigging Manual line array EVENT-208A / EVENT-210A / EVENT-M210A / EVENT-218A El colgado del equipo sólo debe realizarse utilizando los herrajes de colgado recomendados y por personal cualificado. No cuelgue la caja de las asas. The appliance should be flown only from the rigging points and by qualified personnel.
-
Page 3: Rigging System
RIGGING SYSTEM It is common practice to apply 5:1 safety factors for enclosures and static elements. slings elements exposed to material fatigue due to friction and load variation the following ratios must be met; 5:1 for steel clable slings; 4:1 for steel chain slings and 7:1 for polyester slings. - Page 4 Groups of three or four units are easy to transport by truck as we will see in this manual. We will also see the preparation with EVENT-208A y EVENT-210A. But, such an extensive explanation isn’t required for EVENT-218A, as this model can be used only in stacked systems lacking a rigging system (stacking up to 3 units on a PL-EV218S).
- Page 7 The first group with 4 units will be the superior group, that is to say, the group where we will install the correspondent AX (AX-EV208 for EVENT-208A units and AX-EV210 for EVENT-210A units). To assemble the correspondent AX, we will lift...
- Page 18 16 units. Array example with 16 units The described process here, will help you to mount arrays with EVENT-208A or EVENT-210A units. The process, as you see, is completely reversible for dismantling the arrays. 0.5º...
-
Page 19: Stacking Systems
AXS-EV208 AXS-EV210 The AXS-EV208 and AXS-EV210 are platforms that allow the stacking of EVENT-208A and EVENT-210A units, respectively (up to maximum of 4 units), over subwoofer cabinets. Warning: Join the platfoms and the subwoofer cabinets, with screws or with endless ratchet straps (not included), for safe stacking (see the examples below). - Page 20 Also, AXS-EV208 and AXS-EV210 allow assigning angles to the enclosures easily, following the label’s instructions (see the figures below). 10º 0º 5º -5º For assemblies as shown in the figures below, the AXC-ZT is required with the AXS-EV208 and AXS- EV210.
- Page 21 TRANSPORTING This section describes event units transport recommendations. We will start with two examples of configurations and we will recommend different ways of loading them inside a truck. LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK...
- Page 22 Disassembling 24 units of EVENT-208A, we make 6 groups of 4 units on PL-EV208S platforms, and, on the other hand, 4 groups of 3 units of EVENT-218A on PL-EV218S platforms. The next figures show some cabinet’s positions when loading a truck, leaving the rest of the truck for other complementary equipment like cables, etc.
- Page 23 LINK LINK Here is the second example: LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK event series Manual de Colgado / / Rigging Manual...
- Page 24 Disassembling 24 units of EVENT-210A, we make 6 groups of 4 units on PL-EV210S platforms, and, on the other hand, 4 groups of 3 units of EVENT-218A on PL-EV218S platforms. The next figures show some cabinet’s positions when loading a truck, leaving the rest of the truck for other complementary equipment like cables, etc.
- Page 25 www.dasaudio.com DAS Audio Group, S.L. DAS Audio of America, INC. DAS Audio Asia PTE. LTD. DAS do Brasil LTDA. C/. Islas Baleares, 24 6900 NW 52th Street 3 Temasek Avenue, Centennial Rua Dos Andradas, 382 SL 46988 Fuente del Jarro Miami, FL.
