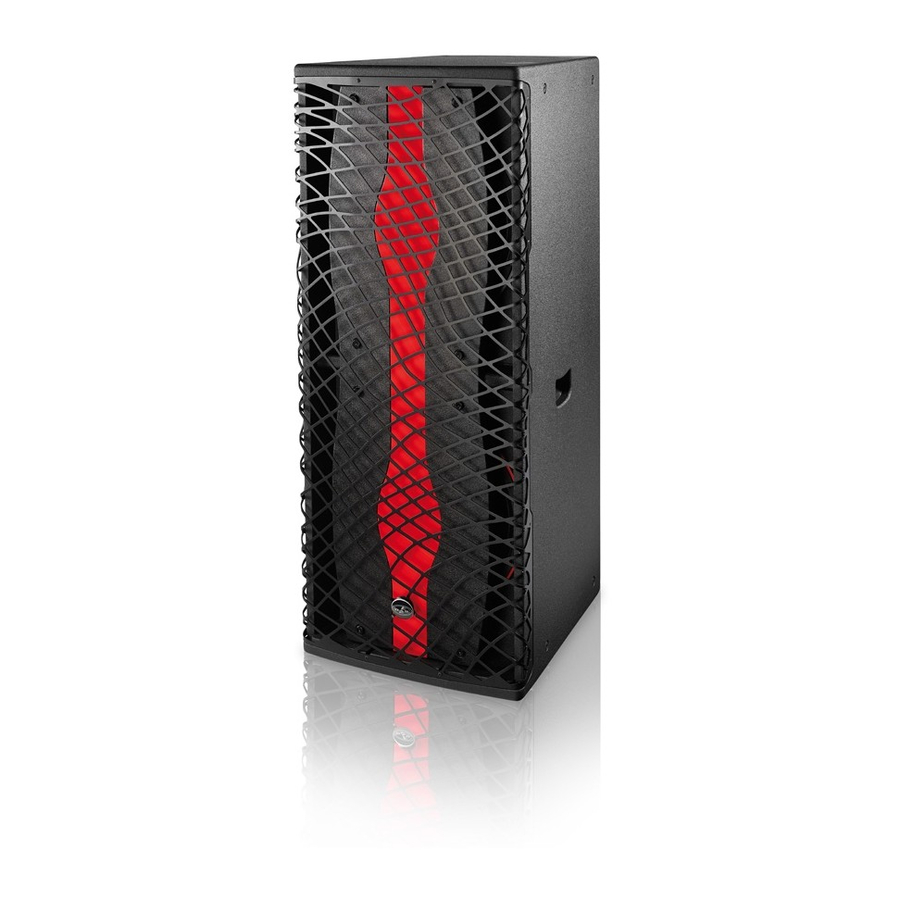

D.A.S. Sound Force SF-112 User Manual
  1. Manuals
  2. Brands
  3. D.A.S. Manuals
  4. Speaker System
  5. Sound Force SF-112
  6. User manual

D.A.S. Sound Force SF-112 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
SF-112 / SF-215 / SF-221 / SF-30A
Antes de utilizar el equipo, lea la sección
"Precauciones de seguridad" de este manual.
Conserve este manual para futuras consultas.
Before operating the device, please read the
"Safety precautions" section of this manual.
Retain this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sound Force SF-112 and is the answer not in the manual?

Questions and answers

Related Manuals for D.A.S. Sound Force SF-112

Summary of Contents for D.A.S. Sound Force SF-112

  • Page 1 User's Manual SF-112 / SF-215 / SF-221 / SF-30A Antes de utilizar el equipo, lea la sección “Precauciones de seguridad” de este manual. Conserve este manual para futuras consultas. Before operating the device, please read the “Safety precautions” section of this manual. Retain this manual for future reference.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS 3 - 4 WARRANTY DECLARATION OF CONFORMITY 7 - 8 INTRODUCTION 9 - 12 CONFIGURATIONS 2x SF-112 + 4x SF-215 + 4x SF-221 (Quad-amplified) 2x SF-112 + 4x SF-215 + 4x SF-30A (Quad-amplified) 2x SF-112 + 4x SF-215 + 4x SF-221 (Tri-amplified) 2x SF-112 + 4x SF-215 + 4x SF-30A (Tri-amplified) SPECIFICATIONS LINE DRAWINGS...

  • Page 3: Safety Precautions

    SF-112 / SF-215 / SF-221 Precauciones de Seguridad Safety Precautions Cajas acústicas pasivas / Passive loudspeaker enclosures Conserve y lea todas estas instrucciones. Keep these instructions. Siga todas las advertencias. Heed all warnings. Follow all instructions. El signo de exclamación dentro de un triángulo indica la The exclamation point inside an equilateral triangle indicates the existencia de componentes internos cuyo reemplazo puede existence of internal components whose substitution may affect...
  • Page 4 SF-30A Precauciones de Seguridad Safety Precautions Cajas acústicas activas / Self-powered loudspeaker enclosures El signo de exclamación dentro de un triángulo indica la The exclamation point inside an equilateral triangle is intended to existencia importantes instrucciones operación alert the users to the presence of important operating and mantenimiento en la documentación que acompaña al producto.

  • Page 5: Warranty

    GARANTÍA Todos nuestros productos están garantizados por un periodo de 24 meses desde la fecha de compra. Las garantías sólo serán válidas si son por un defecto de fabricación y en ningún caso por un uso incorrecto del producto. reparaciones garantía pueden realizadas,...

  • Page 6: Declaration Of Conformity

    DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DAS Audio Group, S.L. C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España (Spain). Declara que SF-112, SF-215, SF-221, SF-30A: Declares that SF-112, SF-215, SF-221, SF-30A: Cumple con los objetivos esenciales de las Directivas: Abide by essential objectives relating Directives: De Baja Tensión / Low Voltage 2014/35/UE...

  • Page 7: Introduction

    INTRODUCTION The Sound Force Dance Stack series has been designed for today´s high-level dance venues where exceptional sound, imposing power and impressive looks are key requisites. Thanks to the modularity of the series, the designers of the rooms have a variety of combinations to mid- high, medium-low and subwoofers that can be adapted to specific local needs.

  • Page 8: Configurations

    SF-221 -Twin 21" high power loudspeakers -6" voice coils for high power handling -Cross-fire enclosure configuration -Reinforced enclosure design -Thunderous low frequency reproduction The SF-221 is a twin 21" subwoofer system designed to provide high levels of low frequency energy. The loudspeakers, equipped with 6" voice coils, highly effective heat dissipation schemes, and an extremely robust mechanical design are ideal for dance club applications where long hours...

  • Page 9: Configurations

    CONFIGURATIONS Now, the system typical configurations depending on the subwoofer (SF-221 or SF-30A) and the type of SF- 112 configuration (passive / biamp) are shown. SUMMARY TABLE OF TYPICAL CONFIGURATIONS Tipo de sistema Modelo de SUB Tipo de montaje Dibujos Preset name System type SUB model...
  • Page 10 CONFIGURATIONS (cont’d) Next, four configurations as examples are shown. Sound Force Disco Systems 5 Way System Quad-amplified - 2x21” subwoofers 40KW SF-112 SF-112 (BI-AMP) (BI-AMP) SF-215 SF-215 SF-221 SF-221 PRC (Power Reduction Control) for D-100: PRC=0dB for SF-215 -4dB for MF of SF-112 -6dB for HF of SF-112 Sound Force Disco Systems 5 Way Quad-amplified system - 30”...
  • Page 11 CONFIGURATIONS (cont’d) Sound Force Disco Systems 5 Way tri-amplified system - 2x21” subwoofers 32KW SF-215 SF-215 SF-112 SF-112 SF-221 SF-221 PRC (Power Reduction Control) for D-100: PRC=0dB for SF-215 PRC=-4dB for SF-112 Sound Force Disco Systems 5 Way tri-amplified system - 30” subwoofers (Moving magnet linear motor transducer) 44KW SF-215...
  • Page 12 CONFIGURATIONS (cont’d) Remember the PRC on the D-100 amplifier: D-100 PRC switches: Each channel of the amplifier may be power limited independently using these pairs of switches in three stages, offering 2, 4 and 6dB of Power Reduction Control. The settings for these switches are on the rear panel for quick reference.

  • Page 13: Specifications

    SPECIFICATIONS Model SF-112 SF-215 SF-221 500W 1400W 2 x 2000W RMS (Average) Power Handling 2000W 5600W 2 x 8000W Peak Power Handling Frequency Range (-10 dB) 80 Hz-20 kHz 60 Hz-250 Hz 28 Hz-125 Hz Nominal Impedance 8 ohms 4 ohms 2 x 4 ohms Crossover Modes Passive / Bi-amp...

  • Page 14: Line Drawings

    LINE DRAWINGS ALL DIMENSIONS IN MILLIMETERS Manual del Usuario / SF series / User’s Manual...

  • Page 15: Installation And Accessories

    INSTALLATION AND ACCESSORIES Connectors The passive models of DAS SF series is designed to facilitate the connection for installations, so it has been provided with connectors NL4 type, standard for professional audio equipment. These terminals are connected in parallel, so that we can carry the amplified audio signal up to a device and we can forward it to the next box, very easily.
  • Page 16 6) LPF PRESET : This push button allows the “LOW PASS FILTER” selection. The LED shining indicates the selected value between 50, 63, 80 or 100 Hz. 7) CARDIOID PRESET : This push button allows the “CARDIOID PRESET” selection. The LED shining indicates the selected value: OFF, 2 units and 3 units.
  • Page 17 Cardioid Preset This unique feature facilitates the configuration of two or three units to create a cardioid response pattern. This is useful in situations where on-stage bass level projected from the subs needs to be kept to a minimum. To set-up a cardioid configuration with two stacked units, place the bottom unit facing the audience and the top box facing the stage.
  • Page 18 Troubleshooting PROBLEM CAUSE SOLUTION sound from unit. 1 – The signal source is sending no 1 – Check that the mixer or sound SIGNAL LED does not light up. signal. source is sending signal to the UNIT. 2 – Defective cable. 2 –...
  • Page 19 Connections Let's look more closely at the connections of some configurations given as an example in this manual. Let's start with the 5-way cuadri-amplified system with SF-30A. Accessories needed for 2 “dance stacks” (L+R): 2x AX-SF112VA 2x AX-SF2215 1x AX-SF2 Complete system finished First we will see the mechanical assembly with accessories and then, the electric connections.
  • Page 20 Part Reference: 4 x M10x50 DIN7380 30006457 4 x Washers DIN9021 2 x SCREWS Part Reference: 30006456 2 x SF-215 2 x M10x50 DIN7380 2 x Washers DIN9021 Manual del Usuario / SF series / User’s Manual...
  • Page 21 2 x SCREWS 2 x SCREWS 4 x M10x50 DIN7380 4 x Washers DIN9021 Part Reference: 30006452 Manual del Usuario / SF series / User’s Manual...
  • Page 22 Part Reference: Part Reference: 30006453 30006454 SCREW 4 x SCREWS (removed in step 5) 4 x Washers DIN9021 Manual del Usuario / SF series / User’s Manual...

  • Page 23: Prc=0Db For Sf

    Note: The accessory AX-SF112VA lets you adjust the angles of SF-112, 0 °, 5 °, 10 ° or 15 ° as follows: 15º 5º 10º 0º The figures below indicate the electric connections on one side and the other side is equal. Sound Force Disco Systems 5 Way Quad-amplified system - 30”...

  • Page 24: Prc=0Db For Sf

    However, for electric connections in the configuration 5-way cuadri-amplified system with SF-221: Sound Force Disco Systems 5 Way System Quad-amplified - 2x21” subwoofers 40KW 2x SF-112 + 4x SF-215 + 4x SF-221 SF-112 AMP 1 AMP 2 SF-215 AMP 3 AMP 4 PRC (Power Reduction Control) for D-100: PRC=0dB for SF-215...
  • Page 25 If you do not have much horizontal space for the system, but you have an unlimited height, you can make the following assemblies. Accessories needed for 2 “dance stacks” (L+R): 2x AX-SF112VA 2x AX-SF2215 4x AX-SF2 Complete system finished 8 x M10 SCREW Part Reference: 30006454 Manual del Usuario / SF series / User’s Manual...
  • Page 26 2 x M10x50 DIN7380 2 x Washers M10 DIN9021 Part Reference: 30006457 Manual del Usuario / SF series / User’s Manual...
  • Page 27 2 x M10x50 DIN7380 2 x Washers M10 DIN9021 2 x M10 SCREWS 2 x M10 SCREWS Part Reference: 30006454 Part Reference: 30006453 4 x M10x50 DIN7380 4 x Washers M10 DIN9021 Part Reference: 30006452 Manual del Usuario / SF series / User’s Manual...
  • Page 28 Remember that the AX-SF112VA lets you adjust the angles of SF-112, 4 x M10x50 DIN7380 0º, 5º, 10º or 15º 4 x Washers M10 DIN9021 15º 10º 5º 0º Manual del Usuario / SF series / User’s Manual...
  • Page 29 If we use SF-221, in the place of SF-30A, then we will have the following steps: Accessories needed for 2 “dance stacks” (L+R): 2x AX-SF112VA 2x AX-SF1 4x AX-SF2 Complete system finished 8 x M10 SCREWS Part Reference: 30006456 Manual del Usuario / SF series / User’s Manual...
  • Page 30 4 x M10x50 DIN7380 4 x Washers M10 DIN9021 Part Reference: 30006455 4 x M10x50 DIN7380 4 x Washers M10 DIN9021 The following steps are described on page 27, steps 5 and 6 to place the SF-112 in the top Manual del Usuario / SF series / User’s Manual...

  • Page 31: Manual Del Usuario / Sf Series / User's Manual

    However, if you do not have much vertical space for the system, but you have an unlimited horizontal space, you can make the following assemblies. Accessories needed for 2 “dance stacks” (L+R): 2x AX-SF1 Complete system 6x AX-SF2 finished 16 x M10 SCREWS Part Reference: 30006744 8 x M10 SCREWS...
  • Page 32 4 x M10x50 DIN7380 4 x M10 DIN9021 2 x AX-SF1 - 30006455 And, for SF-30A in the place of SF-221, we will have: Accessories needed for 2 “dance stacks” (L+R): 2x AX-SF1 Complete system 6x AX-SF2 finished Manual del Usuario / SF series / User’s Manual...
  • Page 33 8 x M10 SCREWS Part Reference: 30006744 8 x M10 SCREWS Part Reference: 30006456 4 x M10x50 DIN7380 4 x Washers M10 DIN9021 Part Reference: 30006455 Manual del Usuario / SF series / User’s Manual...
  • Page 34 To perform any operations related to flying the system, read the present document first, and act on the warnings and advice given. The goal is to allow the user to become familiar with the mechanical elements required to fly the acoustic system, as well as the safety measures to be taken during set-up and teardown.
  • Page 35 ANL-2 2 x ANL-2 Absolutely no risks should ANL-2 be taken with regards to public safety. When flying enclosures from ceiling support structures, extreme care should be taken to assure the load bearing capabilities of the structures so that the installation is absolutely safe.

  • Page 36: Annex I: Table For Cable Selection

    ANNEX I : Table for cable selection This table shows the power loss in % and dB, for different cable lengths and sections shown. It is recommended that the losses do not exceed 30% in any case (around 3dB). Although it is recommended minimizing losses, the maximum acceptable losses are usually around 15% (approximately 1.4dB).

  • Page 37: Annex Ii: Line Connections: Unbalanced And Balanced

    ANNEX II : Line connections: unbalanced and balanced There are two basic ways to transport an audio signal with microphone or line level: Unbalanced line: Utilising a two conductor cable, it transports the signal as the voltage between them. Electromagnetic interference can get added to the signal as undesired noise. Connectors that carry unbalanced signals have two pins, such as RCA (Phono) and ¼”...

  • Page 38: Annex Iii: Dasnet Cables

    ANNEX III : DASnet cables With each system, cabling and patch panels are provided. It is very important to use the system with the intended cables to prevent electromagnetic interferences between the analog audio signal, the DASnet data and the power. Be sure to check the specifications provided by the cable manufacturer.

  • Page 39: Annex Iv: Table Of Accessories

    ANNEX IV : Table of accessories Manual del Usuario / SF series / User’s Manual...
  • Page 40 Manual del Usuario / SF series / User’s Manual...

  • Page 41: Annex V: Axb-Sf30

    ANNEX V : AXB-SF30 Next, the steps for installing the platform fixed to the ground, preventing unwanted slippage of the SF-30A. For this feature we need the accessory AXB-SF30. Mark the holes on the floor Drill holes of 80mm in depth Hold the AXB-SF30 to floor with anchors Reference: Place the SF-30A on the AXB-SF30 30006776...
  • Page 42 www.dasaudio.com DAS Audio Group, S.L. DAS Audio of America, INC. DAS Audio Asia PTE. LTD. DAS do Brasil LTDA. C/. Islas Baleares, 24 6900 NW 52th Street 3 Temasek Avenue, Centennial Rua Dos Andradas, 382 SL 46988 Fuente del Jarro Miami, FL.
