Red Technology MAGIC-2 Instruction Manual page 32

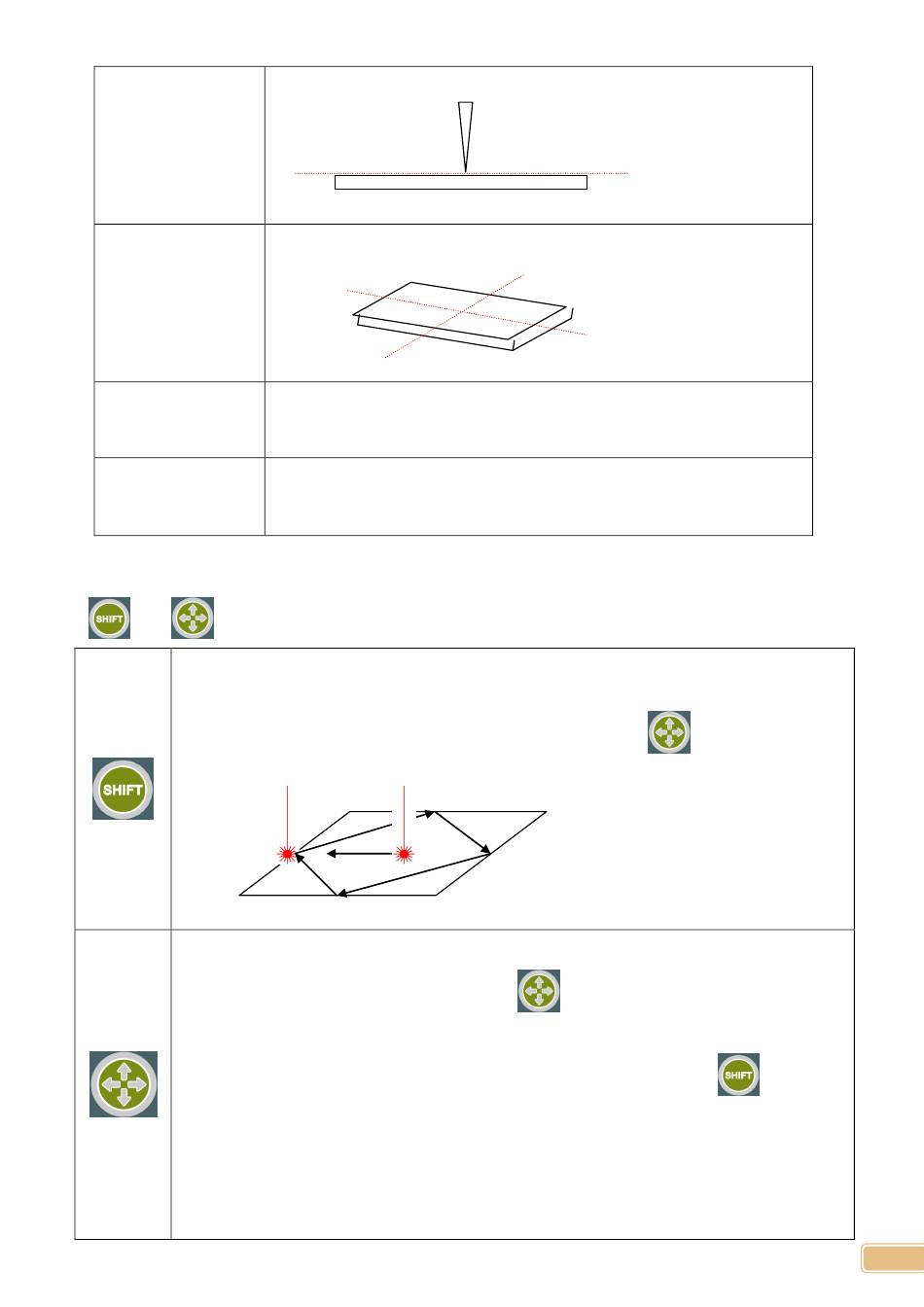

Surface Height
Surface Slope
Skip
Adjust Engraving
Position
12. Machine will move to the material center position, illuminating laser beam on material surface. Using
and keys, check and adjust marking area.
Whenever this key is pressed, laser beam will point at the left, top, right or bottom end of the
marking area. Make sure that the whole marking area stays inside the material.
If marking area escapes the material surface, move inside pressing
Move the marking area to the left, top, right or bottom in accordance with current position.
If the current position is LEFT of marking area,
marking area, it moves to the TOP.
So if you want to move to specific direction, change the current position using
Measure material's height.
Measure material's inclination.
Height is not measured. At this case, as for material height, pre-measured
height is applied. In previous engraving work, if you don't put material out of
vice, you can save measuring time by selecting this option.
Appoint if engraving position is readjusted. If you select this option, laser
point is turned on in order to readjust engraving position and if you don't use
this option, promptly start engraving.
2 1
key.
key moves to the LEFT. If it is TOP of
key.
31
