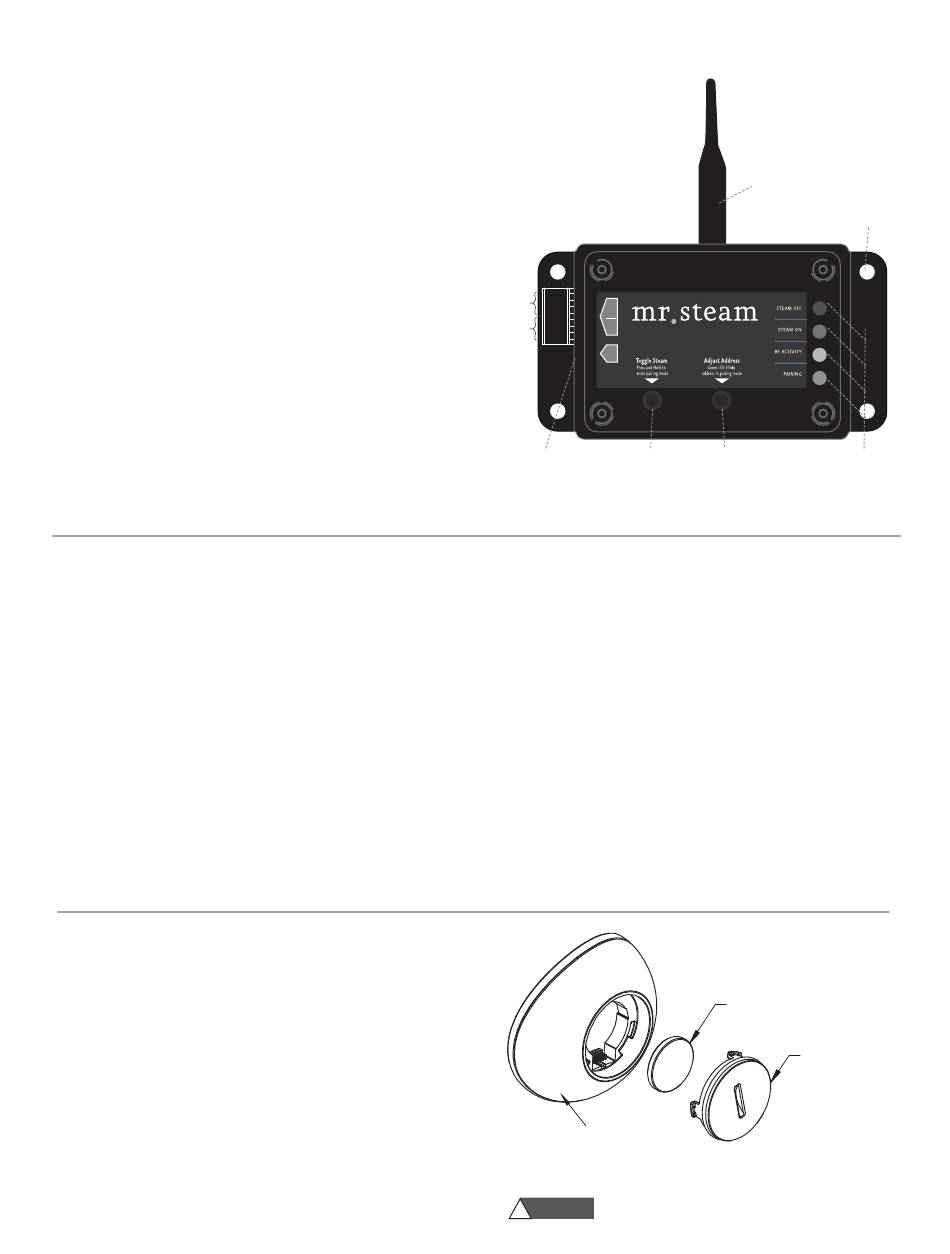

HOME WIZARD INTERFACE MODULE:
• The Home Wizard Interface Module is connected to and mounted near
your steam generator and normally does not require any attention.
• The 4 lights on the Home Wizard Interface Module indicate
the status of the steam generator that it is connected to. At
least one light will be on to show you that the Home Wizard
Interface Module is operating.
• If the red light is on, the steam cycle is off. If the green light is
on, the steam cycle is on.
• If the red light is blinking there is an error condition in the
steam generator. An error code will be displayed on your
iTempo or iSteam control. Contact the Mr.Steam Technical
Service Dept. at 800-76-STEAM (East coast) or 800-72-
STEAM (West coast) for assistance or additional information.
• The yellow light flashes to indicate when the ON/OFF
button on the Home Wizard FOB is pressed.
• The blue light is on to indicate that you are in pairing mode.
• While in pairing mode, the green light will continuously
flash the Home Wizard Interface Module address (1-8).
• You can turn the generator on and off by pressing either
button on the Home Wizard Iinterface Module (while not in
pairing mode).
PAIRING
• The Home Wizard FOB and Home Wizard Interface
Module come paired from the factory with address 1.
The Home Wizard FOB and Home Wizard Interface
Module can be set to one of eight different addresses.
• Pairing is required if you have more than one steam gen-
erator in your home or if you experience interference
from a neighbor's steam generator.
• You can determine the pairing of an Home Wizard FOB
and Home Wizard Interface Module by pressing and
holding the ON/OFF button for 2 seconds. If you are
within range of the Home Wizard Interface Module, the
green light will flash from 1 to 8 times depending on the
address. To change the address of the Home Wizard In-
terface Module, you must enter pairing mode.
• To enter pairing mode, press and hold the TOGGLE-
STEAM button on the Home Wizard Interface Module
iGENIE BATTERY REPLACEMENT:
Your iGenie is equipped with a factory installed battery.
A replacement disk battery #CR2032 is available at most stores.
TO REPLACE THE BATTERY:
1. Using a flathead screwdriver or coin, turn the
battery door ¼ clockwise.
2. Remove the battery door.
3. Slide out the old battery.
4. Slide in a new battery making sure that the + side is
facing outwards (away from the circuit board).
5. Replace the battery door and using a flathead screwdriver
or coin turn it ¼ counterclockwise to close it.
6. Test the iGenie
NOTE: The iGenie FOB will remember its address
when the battery is removed
®
Installation & Operation Instructions
HOME WIZARD
INTERFACE
MODULE
Feedback
to Home
Automation
Normally
Open Relay
Feedback
to Home
Automation
System
ON/OFF
Switch Input
from Home
Automation
System
HomeWizard Interface Module
Signal from
Home
Connect
to Steam
Automation Generator
(Note: Screws
on connector
face down)
Connection to Steam Toggle Steam
Generator and Home
button
Automation System
( on the side of the Inter-
face Module )
for 2 seconds until the blue indicator light comes on. The
green indicator light will start flashing the current address
every 4 seconds. Count from 1 to 8 flashes. To change the
Home Wizard Interface Module address press the ADJUST-
ADDRESS button. Observe that the flash increments from 1
to 8 and then back to 1 each time you press it.
• To change the address of the Home Wizard FOB, to match
the address of the Home Wizard Interface Module press
and hold the ON/OFF button while the Home Wizard Inter-
face Module is in pairing mode. You will see the new flash
count on the Home Wizard FOB.
• To exit pairing mode, press the TOGGLE-STEAM button on
the Home Wizard Interface Module and observe that the
blue light turns off. Pairing mode will automatically exit
after 60 seconds.
NOTE: The Home Wizard FOB and Home Wizard Interface
Module address are maintained even when power is removed.
FOB
Case
! CAUTION
The battery and battery door are small pieces,
keep out of reach of children.
3
Home Wizard
Antenna
®
WITH HOME AUTOMATION INTERFACE
Address
button
Battery
Battery
Door/Magnet
™
Mounting
Holes
Status
LEDs
