mr. steam Home Wizard Installation And Operation Instructions page 2

.
mr steam
____________________________________________________________________________________________________________________________________

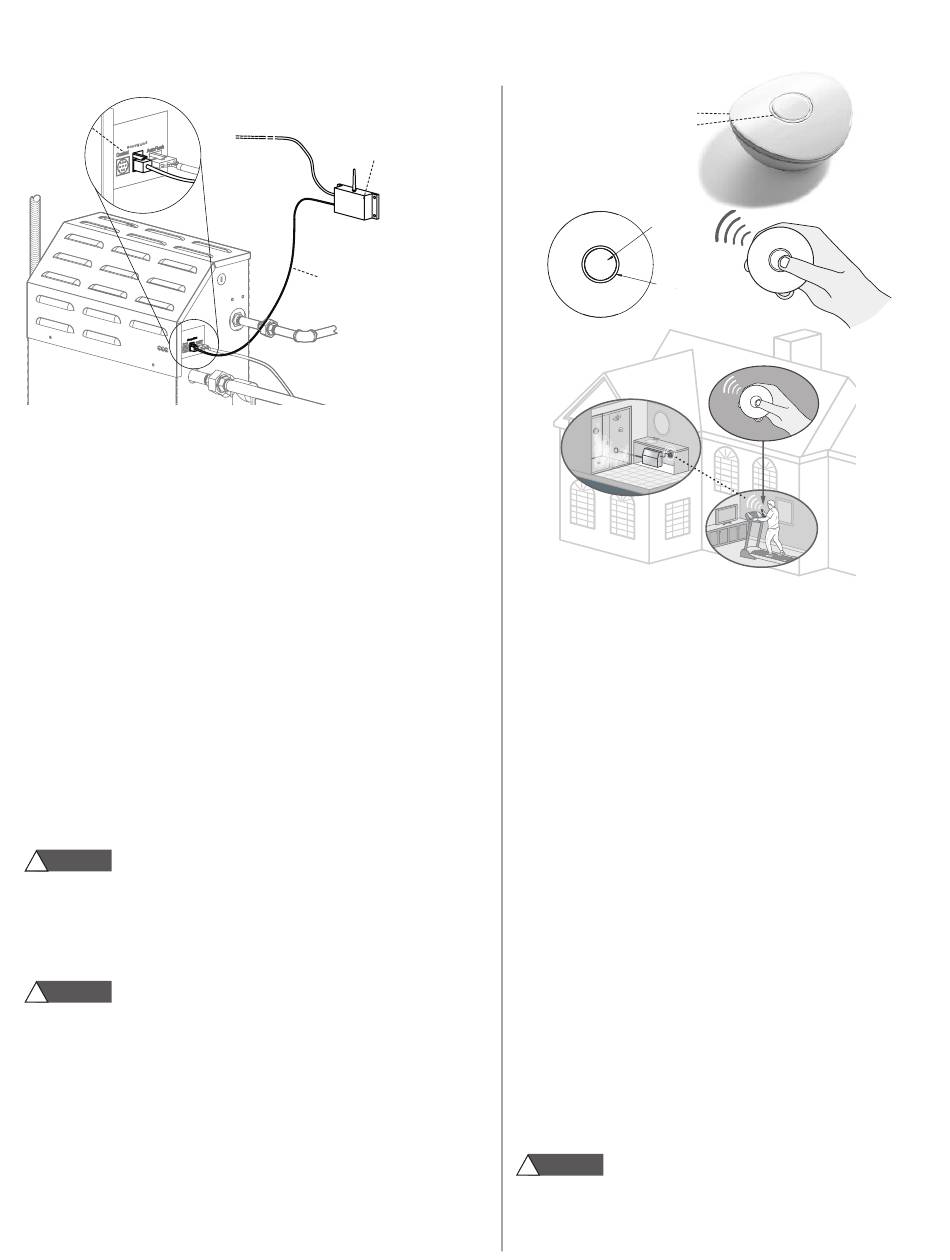

Plug the Home Wizard Interface
Module cable into the
Home Wizard location
on the steam
generator
NOTE : For illustrative purposes only.
The iTempo control cable is not shown for clarity. An iTempo or iSteam
must be used in conjunction with the Home Wizard.
HOME WIZARD INTERFACE
MODULE INSTALLATION
• Installation of the Home Wizard Genie should be performed by a certi-
fied Home Automation Integrator in accordance with applicable National
andlocal electrical codes.
• Connect the Home Wizard Interface Module to the generator by plug-
ging in the provided 5 foot cable to the Home Wizard Interface Module
and the Home Wizard connector on the side of the generator as shown.
• Mount the Home Wizard Interface Module in a dry, indoor location. For
maximum range, the Home Wizard Interface Module should be mounted
as high as practical and away from metal that could effect the radio sig-
nal. Securing it to a nearby wood stud is ideal. The antenna should be
pointing upwards.
• 2 wire pairs (not supplied) must be provided to connect the Home
Automation system and the Home Wizard.
• Using the supplied connector, connect the signal wires and feedback
wires from the Home Automation system to the Home Wizard.
CAUTION
!
The signal from the Home Automation system must be a
momentary contact closure to turn the Steam Generator ON or OFF.
A sustained contact closure or voltage will damage the Home Wizard.
• The feedback from the Home Wizard is a sustained contact closure
when the steam generator is ON and an open circuit when the steam
generator is OFF.
The maximum voltage for the
CAUTION
!
feedback circuit is 2A at 12 VDC
• With the generator powered, the red light (steam off) or green light
(steam on) should come on when plugged in. Press the TOGGLE
STEAM button to confirm proper connection.
• Press the ON/OFF button and confirm that the Home Wizard lights
match the state of the steam generator. Red for STEAM OFF (eTempo
control is off) and green for STEAM ON (eTempo control is on).
• The yellow RF activity light on the Home Wizard Interface Module should
flash each time the button on the Home Wizard FOB is pressed.
• Test the range of the Home Wizard FOB. It may be necessary to change
the location of the Home Wizard Interface Module to improve the
range. Contact Mr.Steam technical service for an optional 60 ft. cable,
PN 103978-60.
®
Installation & Operation Instructions
To Home Automation system
(cable not included)
Home Wizard
Interface Module
Home Wizard
Interface
Module Cable
ON/OFF Button
Red and Green
Indicating Light Ring
HOME WIZARD OPERATION
WITH A HOME AUTOMATION SYSTEM:
• The Steam Generator will turn on when a signal is
received from the Home Automation system.
• The steam generator will run for a maximum of 10 minutes
when turned on using the Home Automation system. To continue
for longer than 10 minutes, simply turn the generator off then back
on using the eTempo Control or the Home Wizard FOB.
WITH HOME WIZARD FOB:
•
When the Home Wizard FOB light is off, press the button once and
the Home Wizard FOB light indicates if the steam is on or off.
When you press the button, the light will momentarily twinkle be-
tween red and green. A red light indicates that the steam is off and
a green light indicates that the steam is on. If you are out of range,
the lights will twinkle for about 5 seconds and then shut off.
• To turn the steam on or off, press the ON/OFF button again while
the light is illuminated. After a short delay the light will change
from red to green (steam on) or green to red (steam off).
• The light will stay illuminated for 10 seconds and then shut off.
• A blinking red light indicates that an error condition
exists in the steam generator. An error code will be
displayed on your eTempo or eTempo/Plus control.
Contact the Mr.Steam Technical Service Department
at 800-76-STEAM (East coast) or 800-72-STEAM (West coast) for
assistance or additional information.
CAUTION
!
The Home Wizard FOB may be used in the steam
room. Do not submerge the Home Wizard FOB in water. Doing so
may result in an inoperative or hazardous installation.
2
Home Wizard
On/Off
Button
Red/Green
Indicating
Light Ring
™
