ENGLISH
VERSION 2.5
MANUAL

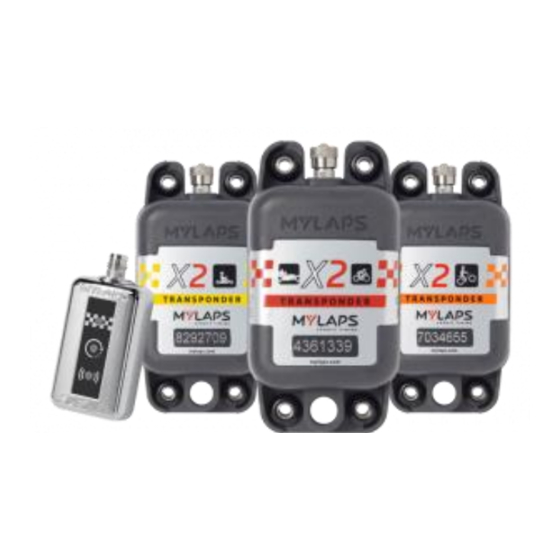

X2
Transponder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mylaps X2

Summary of Contents for Mylaps X2

  • Page 1 ENGLISH VERSION 2.5 MANUAL Transponder...
  • Page 2 Whilst every care has been taken to ensure that the information in this document is correct, no liability can be accepted by MYLAPS for loss, damage or injury caused by any errors or omissions in this document. The sale of products, services of ndard Terms and Conditions of Sales.
  • Page 3 This equipment has been tested and found to comply with the limits for RoHS compliant materials. These limits require manufacturers to ensure that they do not use materials or components that contain restricted substances that may be harmful to the environment. X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 4: How To Use This Manual

    MYLAPS Connect is special software to activate your transponder. This transponder can be found in your account. About this Manual This manual is intended for operating and supervisory personnel and provides information on installing and operating the X2 transponder. This publication has been written with great care. However, the manufacturer cannot be held responsible, either for any errors occurring in this publication or for their consequences.

  • Page 5: Table Of Contents

    8. Create an account ........................................19 9. Register X2 Transponder ..................................... 20 10. Install MYLAPS Connect ....................................21 11. Activate the X2 Transponder using MYLAPS Connect ......................... 23 12.Firmware update ........................................25 Updating X2 Racekey Firmware with MYLAPS Connect........................25 Updating X2 Transponder Firmware with MYLAPS Connect ......................

  • Page 6: General

    Description of the X2 Transponder and X2 System The track you are racing on, has a MYLAPS system installed at the start and finish line and maybe at intermediate points along the track. The system picks up the signal sent out by the transponder mounted on your vehicle. This signal is picked up by a loop installed in the track and lap times are measured.

  • Page 7: What Is In The Box

    1, 2 or 5 year X2 Transponder Holder USB cable Extra components used for the Direct Power model Transponder to RaceKey mount cable X2 RaceKey to 12VDC power source cable X2 RaceKey mount X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 8: Technical Specifications

    5 days Unique 7-digit number Input voltage 8-17 VDC Power consumption Max. 140 mA 12 VDC (145 mA with X2 RaceKey) Battery operating time Min. 4 days (after full charge) Battery Charging time Min. 4 hours for full charge Car/Bike...
  • Page 9 120 Ohm Connections 4 pin M8 sensor connector 4 spring docking Micro USB connector Power Consumption Max 450 mA at 5VDC (X2 Racekey & Transponder) USB cable Description 0.50M USB micro - USB A, black Color of housing Black Type of plug...
  • Page 10 Cable (X2 RaceKey mount to 12 VDC power supply) Type Cable; Open end without connector Material PUR halogen free Color of housing Black Number of contacts Thread Type of plug 1x female (M8 female connector with snap-in joint, straight, 4-poles) Length 1,5 m (59.1 inch)
  • Page 11 Rate current Nominal voltage Contact material Gold plated pins M8 cable power option Input voltage 8-17 VDC USB power option Input voltage X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 12: Leds And Symbols On The Racekey

    4. Leds and symbols on the Race Key The leds and symbols on the RaceKey when docked on the X2 transponder (Rechargeable) or when docked on the RaceKey mount (Direct Power) Steady GREEN Powered and connected to a PC GREEN...

  • Page 13: Led On The X2 Transponder

    5. LED on the X2 transponder The X2 Transponder has an indicator LED in the M8 Connector. LED indicator Transmitting Charging Battery full Subscription active Comment Steady GREEN Connected to Power Source Flashing once Connected to Power Source every second...

  • Page 14: Installation And Mounting

    During a race, keep the direct power X2 RaceKey in its mount to ensure the X2 Transponder stays activated. Make sure the X2 Transponder has a clear view to the track. Metal or carbon fiber underneath the transponder could block the signal.
  • Page 15 Connect the X2 RaceKey mount as follows: • Connect power cable connector to the X2 RaceKey mount and connect the open-end wires to a 12 VDC supply in your vehicle (check the cable and vehicle wiring specifications for correct connection). The brown cable is 12V and the Blue cable is Gnd.

  • Page 16: Mounting Rechargeable Model

    • Remove the USB cable and disconnect the X2 RaceKey from the X2 Transponder. The indicator lights on the transponder indicate how long the transponder can be used - there is no sleep mode. Mount the X2 Transponder in the car front wheel arch, or bike front forks, or kart lower chassis.

  • Page 17: Charging (Rechargeable X2 Transponder Only)

    To ensure the functionality of your X2 Transponder, reactivate it periodically with the X2 RaceKey (at least once every 5 days). When the transponder is not reactivated, it will stop sending out its transponder number, and the subscription indicator light will flash red 5 times per second.

  • Page 18: Maintenance

    Clean the X2 Transponder making sure not to get moisture on the electrical connector where the USB cable can be connected. • Dry off any excess moisture. • If necessary, use clean cotton tips to clean any dirt off the connectors on the X2 RaceKey and the X2 Transponder. X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 19: Create An Account

    After clicking the link (blue button), the account activation page will open. Create and confirm your password. After clicking the Activate account button (blue button), a confirmation explains your account is active. reen. You log in with your e-mail address and password. X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 20: Register X2 Transponder

    9. Register X2 Transponder After you logged in with your e-mail address and password via <account.mylaps.com> you must register your transponder in your account. X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 21: Install Mylaps Connect

    10. Install MYLAPS Connect When you are activating your X2 Transponder for the first time, or when you use a new computer for activation, you need to install the MYLAPS Connect application on the computer: Visit http://www.mylaps.com/en/software-firmware and access the download program directory or from your registration screen.
  • Page 22 Check all settings are correct and click <Install>. Click <Finish> to complete the installation. X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 23: Activate The X2 Transponder Using Mylaps Connect

    Login to MYLAPS Connect with your MYLAPS Email and Password. The home screen will appear and requests you to connect your X2 Racekey in the top left tile: Two options can be shown, you have subscription (1) or your subscription has expired (2).
  • Page 24 When you have subscription, attach your X2 RaceKey to your computer with the USB cable. The lights on the RaceKey will turn steady blue, while connected. The subscription transfer will start automatically, and the following screens appear: Connect the X2 RaceKey to the X2 Transponder (either directly to the back of the Rechargeable transponder; or via the mount to the Direct Power transponder).

  • Page 25: Firmware Update

    Updating X2 Racekey Firmware with MYLAPS Connect. In case your X2 Racekey requires a firmware update MYLAPS Connect will notify you after connecting the X2 Racekey Log in and connect your X2 Racekey to your computer as described in chapter 4.3.

  • Page 26: Updating X2 Transponder Firmware With Mylaps Connect

    Note: For Direct Power Transponders firmware updates can only be done by connection the Transponder directly to MYLAPS Connect. Firmware cannot not be transferred through the X2 Racekey and X2 Racekey Mount In case your X2 Transponder requires a firmware update MYLAPS Connect will notify you after connecting your X2 Transponder via the X2 Racekey Log in and connect your X2 Racekey and X2 Transponder to your computer.

  • Page 27: Mylaps Connect Offline Mode

    13. MYLAPS connect Offline mode When there is no internet connection available you can use MYLAPS Connect in Offline Mode to check the subscription status and battery status for a connected X2 Transponder. The grey bar indicates that no internet connection is available. Click the <Work offline> button to continue in offline mode.

  • Page 28: Environment And Disposal

    For this reason, dispose of used rechargeable batteries at a local collection point. The packaging materials may not be discarded as household waste, but must be collected separately and recycled in an ecologically compatible way. X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 29: Support

    Only in cases of direct needed support for event MYLAPS Asia Office organizers and companies. Selangor, Malaysia Tel: +60 3 5613 1235 Tel: +31 23 7600200 Email: info.asia@mylaps.com Our Frequently Asked Questions (FAQ) can be found on help.mylaps.com X2 transponder version 2018 © MYLAPS rights reserved...

  • Page 30: Ce Declaration Of Conformity X2 Transponder

    CE Declaration of Conformity X2 transponder MYLAPS Zuiderhoutlaan 4 2012 PJ Haarlem The Netherlands Declare that the RF system MYLAPS X2 transponder In accordance with the following directives: 2006/95/EC The Low Voltage Directive 2004/108/EC The Electromagnetic Compatibility Directive 1999/5/EC Radio & Telecommunications Terminal...
